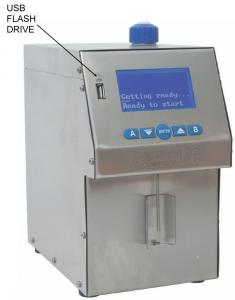

BOECO Milk Analyzer LAC-SP / LAC-SPA
BOECO Milk Analyzer LAC-SP, LAC-SPA The function of the BOECO Ultrasonic Milk Analyzer is to make quick analyses of milk samples directly after milking, at collecting and during processing.
The BOECO Milk analyzer makes quick analyses of milk and liquid dairy products as: Cow milk, UHT milk, Sheep milk, Goat milk, Buffalo milk, Whey, Cream (up to 45%), Recovered milk.
Each unit will be delivered with 3 calibrations (standard are sheep, cow and UHT milk)
The model LAC-SP has one peristaltic pump for the sample aspiration.
The model LAC-SPA has two pumps. the second one for automatic cleaning
The key features are:
User-friendly: simple in operation, maintenance, calibration and installation
Portable and compact design
Very small quantity of milk required (25 ml per one measurement)
Low power consumption
No use of hazardous chemicals
Measuring accuracy adjustment can be done by the user RS 232 interface
ESC POS Printer Support
Two samples self-calibration
Dimensions 175x175x150 mm (WxDxH)
Weight: < 1,5 kg
Power: Input 100-240V ~1,6 A max, 50/60 Hz, Output +12V 4.17 A min
The following Parameters can be measured from the Ultrasonic system:
Fat, Solid-non-fat (SNF), Density, Protein, Lactose,
Milk sample temperature, Added water, Salts, Freezing point.
The following Parameters can be measured from integrated systems:
pH (together with an electrode), Conductivity, Inhibitors
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Measuring parameters
| Parameter | Measuring range | Accuracy |
|---|---|---|
| Fat | from 0,01% to 25% (option 45%) | ± 0.1% |
| SNF (Solids-non-fat) | from 3% to 15% | ± 0.15% |
| Density | from 1015 to 1140 kg/m3 (option 1160 kg/m3) | ± 0.3 kg/m3 |
| Protein | from 2% to 7% | ± 0,15% |
| Lactose | from 0.01% to 6% | ± 0.15 |
| Added Water content | from 0% to 70% | ± 3.0% |
| Temperature of milk | from 1 °C to 40 °C | ± 1 °C |
| Freezing point | from -0,4 to -0,7 °C | ± 0.001 °C |
| Salts | from 0,4 to 1,5% | ± 0.05% |
| pH | from 0 to 12 | ± 0,05% |
| Total solids | from 0 to 50 % | ± 0,17% |
| Option: Conductivity | from 3 to 14 (mS/cm) | ± 0,05% |
Ordering information
| Code | Description |
|---|---|
| BOE 5290800 | BOECO LAC-SP-50 Milk Analyzer, Standard Plastic Model, 50 sec. measuring time, with pH measuring system, USB/RS 232 dataport |
| BOE 5290860 | BOECO LAC-SPA-50 Milk Analyzer, Standard Plastic Automat with 2 peristaltic pumps inside (1 for the sample, 1 for the cleaning), 50 sec. measuring time, with pH measuring system, USB/RS 232 dataport |
| BOE 5291860 | BOECO LAC-SPA-50 Milk Analyzer, Standard Automat Model, 50 sec. measuring time, with pH measuring system and integrated Conductivity measurement, real time clock, USB/RS 232 dataport |
Option
| Code | Description |
|---|---|
| BOE 5451160 | High-fat (45%) / Density 1160 kg/m3 measuring function |
Source: BOECO Germany – https://www.boeco.com/boeco-milk-analyzer-lac-sp-lac-spa&sk=422
Specifications for BOECO Milk Analyzer LAC-SP / LAC-SPA
| Model | LAC-SP-50 or LAC-SPA-50 (automat) or LAC-SPA-50 (automat + conductivity) |
