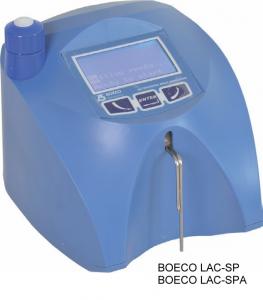

BOECO Milk Analyzer LAC-S / LAC-SA
BOECO Milk Analyzer LAC-S, LAC-SA The function of the BOECO Ultrasonic Milk Analyzer is to make quick analyses of milk samples directly after milking, at collecting and during processing.
The BOECO Milk analyzer makes quick analyses of milk and liquid dairy products as: Cow milk, UHT milk, Sheep milk, Goat milk, Buffalo milk, Camel milk, Whey, Cream (up to 45%), Skimmed milk (0,01% FAT, Ice-cream mixtures, Concentrated milk (up to 1160 kg/m3 ), Yogurt, Flavoured milk, Recovered milk.
Each unit will be delivered with 3 calibrations (standard are sheep, cow and UHT milk)
The standard model LAC-S has one peristaltic pump for the sample, the LAC-SA models have two pumps, the second one for automatic cleaning.
Direct measurement of cold milk samples, starting at 5°C
No need of periodical calibration
The measurement accuracy is not dependant on milk’s acidity
High-end ultrasonic technology for analyzing any kind of milk
Dimensions 100x223x216 mm (WxLxH)
Weight: < 3 kg
Power: Input 100-240V ~1,6 A max, 50/60 Hz, Output +12V 4.17 A min
The following Parameters can be measured from the Ultrasonic system:
Fat, Solid-non-fat (SNF), Density, Protein, Lactose, Milk sample temperature, Added water, Salts, Freezing point
The following Parameters can be measured from integrated systems:
pH (together with a electrode), Conductivity, Inhibitors
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Measuring parameters
| Parameter | Measuring range | Accuracy |
|---|---|---|
| Fat | from 0,01% to 25% (option 45%) | ± 0.1% |
| SNF (Solids-non-fat) | from 3% to 15% | ± 0.15% |
| Density | from 1015 to 1140 kg/m3 (option 1160 kg/m3) | ± 0.3 kg/m3 |
| Protein | from 2% to 7% | ± 0,15% |
| Lactose | from 0.01% to 6% | ± 0.15 |
| Added Water content | from 0% to 70% | ± 3.0% |
| Temperature of milk | from 1 °C to 40 °C | ± 1 °C |
| Freezing point | from -0,4 to -0,7 °C | ± 0.001 °C |
| Salts | from 0,4 to 1,5% | ± 0.05% |
| pH | from 0 to 12 | ± 0,05% |
| Total solids | from 0 to 50 % | ± 0,17% |
| Option: Conductivity | 0,15% from 3 to 14 (mS/cm) | ± 0,05% |
Ordering information
| Code | Description |
|---|---|
| BOE 5290090 | BOECO LAC-S-50 Milk Analyzer, Standard Model, 50 sec. measuring time, with pH measuring system, USB/RS 232 data port, USB flash drive |
| BOE 5290950 | BOECO LAC-SA-50 Milk Analyzer, Standard Automat (2 pumps), 50 sec. measuring time, with pH measuring system, USB/RS 232 data port, USB flash drive |
| BOE 5291950 | BOECO LAC-SA-50 Milk Analyzer, Standard Automat (2 pumps), 50 sec. measuring time, with pH measuring system and integrated Conductivity measurement, real time clock, USB/RS 232 data port, USB flash drive |
Option
| Code | Description |
|---|---|
| BOE 5451160 | High-fat (45%) / Density 1160 kg/m3 measuring function |
Source: BOECO Germany – https://www.boeco.com/boeco-milk-analyzer-lac-s-lac-sa&sk=423
Specifications for BOECO Milk Analyzer LAC-S / LAC-SA
| Model | LAC-S-50 or LAC-SA-50 (automat) or LAC-SA-50 (automat + conductivity) |
