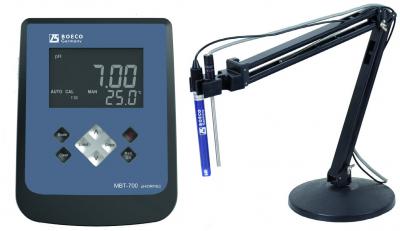

BOECO Multiparameter Model MBT-700
BOECO Multiparameter Model MBT-700 The properties of the BOECO Multiparameter pH/ORP/Conductivity/TDS/Salinity/Resistivity/Temperature Bench Top Meter Model MBT-700
LCD with backlight showing pH / ORP or Conductivity / TDS / Salinity and temperature readings
Two channel measurement allows measuring ph/ORP and Conductivity/TDS/Salinity simultaneously
Up to 5 point calibration for pH and one point calibration for conductivity
Automatic or manual temperature compensation
Automatic buffer recognition (NIST and USA)
Bluetooth function to connect to tablets. APP Name: BOECO E-CHem MBT-700 (App Store / Googleplay)
When the unit is connected to a bluetooth device, the user can store data into the device that meets GLP requirements.
The MBT-700 will be delivered incl. the following standard accessories:
1 x ATC probe,
each 1 x 500 ml Buffer solution pH 4,01, pH 7,00
1 x AC adaptor,
1 x operating manual,
1 x flexible electrode holder
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Conductivity K = 0,475
| Range | Resolution | Accuracy |
|---|---|---|
| 0,0 to 475 µS/cm | 0,1 µS/cm | ±1% of reading +2 µS/cm |
| 475 to 4750 µS/cm | 1 µS/cm | ±1% of reading +5 µS/cm |
| 4,75 to 47,50 mS/cm | 0,01 mS/cm | ±1% of reading +0,05 mS/cm |
| 47,5 to 200,0 mS/cm | 0,1 mS/cm | ±2,5% of reading +0,5 mS/cm |
Conductivity K = 0,1
| Range | Resolution | Accuracy |
|---|---|---|
| 0,00 to 99,99 µS/cm | 0,01 µS/cm | ±1% of reading |
| 100 to 200 µS/cm | 0,1 µS/cm | 0,1 µS/cm |
Salinity
| Range | Resolution | Accuracy |
|---|---|---|
| 0,0 to 70,0 ppt | 0,1 ppt | ± 0,2 % Full Scale |
Temperature
| Range | Resolution | Accuracy |
|---|---|---|
| -10,0 to 90,0 °C | 0,1 °C | ±0,2 % or ±4% Full Scale whichever is greater |
mV
| mV Range | Resolution | Accuracy |
|---|---|---|
| -1999,9 to 1999,9 mV | 0,01 mV | ±0,05% Full Scale |
Specification
| Conductivity Calibration: | 1 point in each range |
| ATC | Auto / manual 0,0 to 120 °C |
| Input impedance: | > 3x1012 ohms |
| Temperature sensor: | Thermistor, 10K ohms at 25 °C |
| Memory: | When the unit is connected to a bluetooth device, the user can store data into the device that meets GLP requirements |
| pH electrode connection: | BNC |
| Conductivity cell connection: | 8 PIN connector |
| Connectivity: | Bluetooth |
| Power requirement: | 6 x 1,5 Volt AAA Alkaline batteries or AC adaptor |
| Dimensions (LxWxH): | 210 x 150 x 45 mm |
Ordering information
| Code | Description |
|---|---|
| BOE 5197700 | Bench Top pH/mV/Ion/Temp Meter, Model MBT-700, AC adaptor, with standard accessories |
