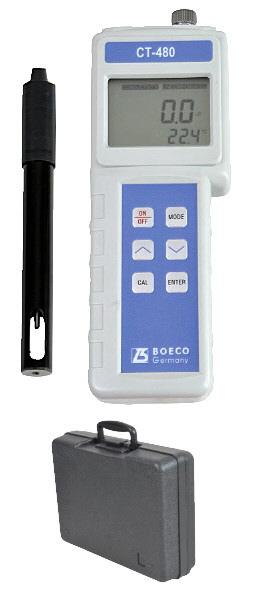

BOECO Portable Conductivity - Model CT-480
BOECO Portable Conductivity - Model CT-480 Simultaneous displays conductivity, salinity or TDS with temperature measurementsConvenient one point calibrattion.
Calibration data is stored in memory and is ready for use on power up
Adjustable TDS coefficient, reference temperature and temperature coefficient
Uses one conductivity cell for conductivity, salinity and TDS measurement
Accepts 4-wire conductivity cells with k=0,475 cell constant for imroved flexibility and accuracy
50 data set reviewable memory
Automatic shut off function (30 minutes of non-use)
Battery life approx 200 -500 hours
Low battery indicator
IP65 waterproof case
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Conductivity K = 0,475
| Range | Resolution | Accuracy |
|---|---|---|
| 0,0 to 475 µS/cm | 0,1 µS/cm | ±1% of reading +2 µS/cm |
| 475 to 4750 µS/cm | 1 µS/cm | ±1% of reading +5 µS/cm |
| 4,75 to 47,50 mS/cm | 0,01 mS/cm | ±1% of reading +0,05 mS/cm |
| 47,5 to 200,0 mS/cm | 0,1 mS/cm | ±2,5% of reading +0,5 mS/cm |
Conductivity K = 0,1
| Range | Resolution | Accuracy |
|---|---|---|
| 0,00 to 99,99 µS/cm | 0,01 µS/cm | ±1% of reading |
| 100 to 200 µS/cm | 0,1 µS/cm | ±1% of reading |
Salinity
| Range | Resolution | Accuracy |
|---|---|---|
| 0,0 to 70,0 ppt | 0,1 ppt | ± 0,2 % Full Scale |
Temperature
| Range | Resolution | Accuracy |
|---|---|---|
| -10,0 to 90,0 °C | 0,1 °C | ±0,2 % or ±4% Full Scale whichever is greater |
Specification
| Reference Temp.: | From 15,0 to 25,0 °C, default is 25,0 °C |
| Temperature Coefficient: | From 0,00 to 4,00 °C, default is 1,91 °C |
| TDS Constant: | From 0,30 to 1,00, default is 0,65 |
| Cell Constant | 4 wire conductivity cell: K = 0,475 |
| ATC | Thermistor, 10K ohms, at 25 °C |
| Power | 9 Volt battery |
| Size (LxWxD) (mm) | 196 x 70 x 37 |
| Weight (g) | 0,26 kg (Battery included) |
Ordering information
| Code | Description |
|---|---|
| BOE 5190480 | Portable Coductivity/Salinity/TDS/Temperature Meter, Model CT-480 in carrying case with 4-wire Conductivity Cell 3020P with 6 PIN connector, K=0,475 (50 µS - 200 mS/cm) |
Optional Conductivity Cell
| Code | Description |
|---|---|
| BOE 5190109 | 2-wire Conductivity Cell 109P with 6 PIN connector, K=0,1 (0,0 - 200,0 µS/cm) |
Source: BOECO Germany – https://www.boeco.com/boeco-portable-conductivity-tds-salinity-temp-mete&sk=104
Specifications for BOECO Portable Conductivity - Model CT-480
| Manufacturer | BOECO |
