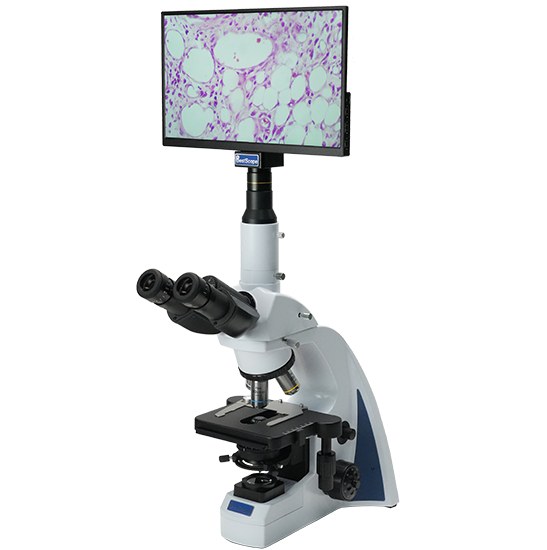

BLM5-241 LCD Digital Biological Microscope
IntroductionBLM5-241 LCD Digital Biological Microscope is classical biological microscope with ingenious stand, high-definition infinite optical system, sharp image and comfortable operation, which make your work much enjoyable.BLM5-241 adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.BLM5-241 is a combination of BS-2041T and BLC-480B all-in-one camera.
Key Details
| Model： | BLM5-241 |
| Eyepiece | WF10X/20mm |
| Sensor Size | 1/1.8" |
| Objective | 4×, 10×, 40× (s), 100× (s, oil) |
| Illumination | 3W LED lamp |
| Viewing Head | Trinocular |
Features
1.Infinite Optical System.
2.WF10×/22mm eyepiece with diopter adjustment.
3.Sliding-in centerable condenser.
4.Easy carrying handle.
5.Fluorescent attachment, dark field condenser, phase contrast attachment, simple polarizing kit are optional.
6.BLM5-241adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.
Application
BLM5-241 LCD Digital Biological Microscope is ideal instruments in biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.
Specification
Item | Specification | BLM5-241 |
Optical System | Infinite Optical System | ● |
LCD Digital Camera | BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. | ● |
Viewing Head | Seidentopf trinocular head, 30° inclined, Interpupillary 48-75mm, eyepiece tube: Φ30mm. Light distribution: 100: 0 and 50:50 (eyepiece: trinocular tube) | ● |
Eyepiece | Wide field eyepiece WF 10×/22mm with diopter adjustment | ● |
WF15×/16mm eyepiece | ○ | |
WF20×/12mm eyepiece | ○ | |
Eyepiece micrometer 0.1mm | ○ | |
Objective | Infinite Plan Achromatic Objectives 4×, 10×, 40× (s), 100× (s, oil) | ● |
Infinite Plan Achromatic Objectives 2×, 20×, 60× (s) | ○ | |
Infinite Semi-Plan Achromatic Objectives 4×, 10×, 40× (s), 100× (s, oil) | ○ | |
Infinite Plan Fluorescent Achromatic Objectives 4×, 10×, 20×, 40× (s), 100× (s, oil) | ○ | |
Nosepiece | Backward quadruple nosepiece | ● |
Backward quintuple nosepiece | ○ | |
Stage | Double layers mechanical stage 140mm*140mm/ 75mm*50mm | ● |
Rackless double layers mechanical stage 150mm*139mm, moving range 75mm*52mm | ○ | |
Condenser | Sliding-in centerable condenser NA1.25 | ● |
Swing-out condenser NA 0.9/ 0.25 | ○ | |
Dark field condenser NA 0.7-0.9 (Dry, used for objectives except 100×) | ○ | |
Dark field condenser NA 1.25-1.36 (Oil, used for 100× objectives) | ○ | |
Focusing | Coaxial coarse & fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 20mm | ● |
Illumination | 3W LED lamp, brightness adjustable | ● |
6V/20W halogen lamp, brightness adjustable | ○ | |
Kohler illumination | ○ | |
Optional accessories | Simple polarizing set (polarizer and analyzer) | ○ |
Phase contrast kit BPHE-1 (Infinite 10×, 20×, 40×, 100× phase contrast objective) | ○ | |
YX-2 Epi-fluorescent attachment (Mercury lamp) | ○ | |
FL-LED Epi-fluorescent attachment (LED lamp, B, G, UV, V, R fluorescent filters are available) | ○ | |
Video Adapter | 1× C-mount (Used for large format microscope camera) | ○ |
0.5× C-mount (Used for microscope camera) | ● | |
Photo Adapter | BDPL-1(Nikon), used for Nikon DLSR cameras | ○ |
BDPL-2(Canon), used for Canon DLSR cameras | ○ |
Note: ●Standard Outfit, ○Optional
Order Code | Sensor & Size (mm) | Pixel (μm) | G Sensitivity Dark Signal | FPS/Resolution ADC | Binning | Exposure |
BLM5-241 | Sony IMX678(C) | 2.0×2.0 | 1364mv with 1/30s | 30@3840*2160 | 1×1 | 0.04~1000 |
Order Code | Video Saving (FPS/Resolution) | HDMI2.0 (FPS/Resolution) | USB2.0 (FPS/Resolution) | WiFi (FPS/Resolution) |
BLM5-241 | 30@3840*2160 | 30@3840*2160 | 30@3840*2160 | 30@3840*2160 |
Sample Images
Specifications for BestScope BLM5-241 LCD Digital Biological Microscope
| Manufacturer | BestScope |
