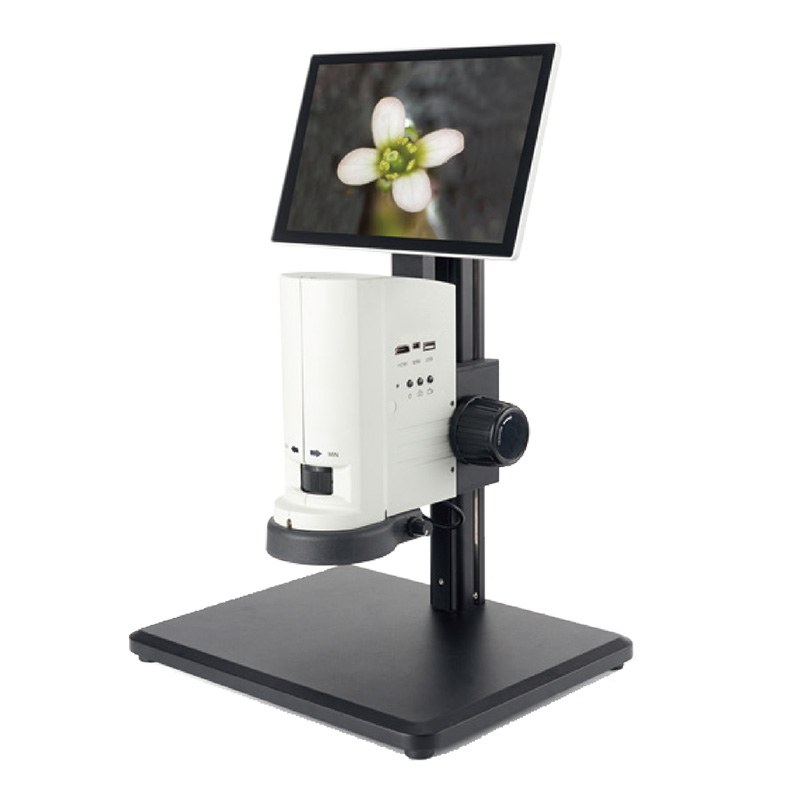

BestScope BLM1-370A LCD Digital Microscope
BLM1-370A digital microscope features a compact and beautiful exterior design, integrating continuous zoom optical module and high-definition camera. The camera and ring lamp are all powered by one power supply, avoiding the mess of mixed wires. The customers can freely choose with or without a screen according to the needs. Compared with traditional optical microscopes, BLM1-370A with built-in camera, is easy to observe and operate, also…
Model: BLM1-370A | Objectives: 1X objective, WD=105mm | Microscope Body: continuous zoom objective 0.7X~5X | Illumination: LED ring lamp with 56 bulbs, intensity adjustable, color temperature 5000-5500K | Base: Large flat base, lifting range 225mm
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BLM1-370A LCD Digital Microscope
BLM1-370A digital microscope features a compact and beautiful exterior design, integrating continuous zoom optical module and high-definition camera. The camera and ring lamp are all powered by one power supply, avoiding the mess of mixed wires. The customers can freely choose with or without a screen according to the needs. Compared with traditional optical microscopes, BLM1-370A with built-in camera, is easy to observe and operate, also available for digital magnification and data storage. We are committed to providing users with easy and comfortable operating experience by reducing the tiredness caused by long time operations.BLM1-370A is applied to educational market, with more available features.
Key Details
| Model | BLM1-370A |
| Objectives | 1X objective, WD=105mm |
| Microscope Body | continuous zoom objective 0.7X~5X |
| Illumination | LED ring lamp with 56 bulbs, intensity adjustable, color temperature 5000-5500K |
| Base | Large flat base, lifting range 225mm |
Features
1.Multiplex signals collection
BLM1-370A with multi-channel signals transmission, support for USB and HDMI output at the same time without interference on each other.
2.Adjustable zoom lens
BLM1-370A has a zoom range of 0.7X-5X and 7:1 continuous magnification. The large stroke focusing mechanism provides a wider workspace with a 225mm focusing range and a maximum working distance of 170mm, meeting the measurement needs of samples at different heights.
Specification
Item | Specification | BLM1-370A | BLM1-370B | |
Objectives | Main Objectives | 1X objective, WD=105mm | ● | ● |
1.4X objective, WD=100mm (not suitable for LED ring lamp with two circles) | ○ | ○ | ||
0.5X objective, WD=170mm (not suitable for LED ring lamp with two circles) | ○ | ○ | ||
Microscope Body | Lens body set, continuous zoom objective 0.7X~5X. Built-in camera module, with real-time HDR and OSD manual, sensor size: 1/3 “, COMS 4M, RAM 16G, support for SD card. Output interface: HDMI, Mini USB | ● | ||
Lens body set, IPS 10 inch high definition touch screen (-5 ° ~15 ° tilting). Continuous zoom objective 0.7X~5X. Built-in camera module, with real-time HDR and OSD manual, sensor size: 1/3 “, COMS 4M, RAM 16G, support for SD card. Output interface: HDMI, Mini USB | ● | |||
Illumination | LED ring lamp with 56 bulbs, intensity adjustable, color temperature 5000-5500K | ● | ● | |
LED ring lamp with two circles, intensity separately adjustable, color temperature 5000-5500K | ○ | ○ | ||
Base | Large flat base, lifting range 225mm | ● | ● | |
Large flat base, lifting range 225mm. LED with adjustable brightness | ○ | ○ | ||
Other | 12V/3.3A switch power adapter (elbow) | ● | ● | |
5m HDMI cable | ○ | ○ | ||
1.5m USB cable | ○ | ○ | ||
32 GB SD storage card | ○ | ○ | ||
Internal hexagonal Spanner M2 | ● | ● | ||
Internal hexagonal Spanner M4 | ● | ● | ||
Note: ● Standard Outfit, ○ Optional
Application
Plant Morphology
FPCB
Fiber
PCB
Accessories
1.Main objectives
There are different main objectives to expand zoom range, for observing the sample in full-scale or in detail.
2.LED ring lamp with two circle bulbs
There are separated switches for intensity control of inner and outer circle lamp. Outer circle as oblique illumination, is available to present more details. Inner circle as near coaxial light, improve the accuracy and reproducibility of the image.
Cellphone LCD: under inner light under outer circle light
HDD Disc: under outer circle light under inner circle light
