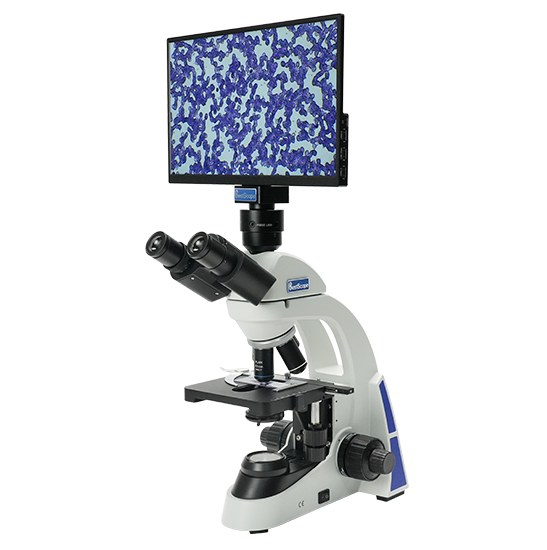

BestScope BLM5-227 LCD Digital Biological Microscope
IntroductionBLM5-227 LCD Digital Biological Microscope comes with elaborate appearance and reliable quality, beautiful and practical. It adopts LED illumination and ergonomics design, comfortable for observation.The frame is lightweight but stable, easy to carry. BLM5-227 microscopes are compact and solid, innovative frame High rigid but small, specially designed for students. The easy operation and clear image inspire students’ imagination and…
Model：: BLM5-227 | Eyepiece: WF10X/20mm | Sensor Size: 1/2.8” | Objective: 0.7×-4.5× | Resolution: 1920*1080 2MP | Viewing Head: Trinocular
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BLM5-227 LCD Digital Biological Microscope
IntroductionBLM5-227 LCD Digital Biological Microscope comes with elaborate appearance and reliable quality, beautiful and practical. It adopts LED illumination and ergonomics design, comfortable for observation.The frame is lightweight but stable, easy to carry. BLM5-227 microscopes are compact and solid, innovative frame High rigid but small, specially designed for students. The easy operation and clear image inspire students’ imagination and interesting of microscopy world, which is helpful to explore the mystery of life science. New generation of scientists are born from here!BLM5-227 adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.BLM5-227 is a combination of BS-2027T and BLC-480B all-in-one camera.
Key Details
| Model： | BLM5-227 |
| Eyepiece | WF10X/20mm |
| Sensor Size | 1/2.8” |
| Objective | 0.7×-4.5× |
| Resolution | 1920*1080 2MP |
| Viewing Head | Trinocular |
Features
1.Comfortable operation with ergonomic design, easy to handle by students.
2.Rechargeable LED illumination system is optional.The microscopes can work when there is no power supply.
3.External power supply, safe and easy to maintain.
4.Compact and flexible, ideally suited for desktop, laboratory worktable.
5.BLM5-227adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.
Application
BLM5-227 LCD Digital Biological Microscope is ideally suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in schools, clinics, hospitals, academic labs and scientific research department.
Specification
Item | Specification | BLM5-227 | |
Optical System | Finite Optical System | ● | |
LCD Digital Camera | BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. | ● | |
Viewing Head | Seidentopf trinocular head, inclined at 30°, 360° rotatable, with locking mechanism for eyepieces, ±5 diopter adjustment on left tube, interpupillary distance 50-75mm, light distribution eyepiece: trinocular=80:20 | ● | |
Eyepiece | Wide field plan eyepiece PL10×/18mm | ● | |
Wide field plan eyepiece PL10×/18mm with pointer | ○ | ||
Wide field plan eyepiece PL10×/18mm with eyepiece micrometer | ○ | ||
Objective | Achromatic Objective | 4X/0.10, WD=21.50mm | ● |
10X/0.25, WD=6.26mm | ● | ||
40X (S)/0.65, WD=0.48mm | ● | ||
100X (S, Oil)/1.25, WD=0.15mm | ● | ||
Plan Achromatic Objective | 4X/0.10, WD=15.09mm | ○ | |
10X/0.25, WD=8.57mm | ○ | ||
20X/0.40, WD=8.72mm | ○ | ||
40X (S)/0.65, WD=0.38mm | ○ | ||
100X (S, Oil)/1.25, WD=0.09mm | ○ | ||
Nosepiece | Backward Quadruple Nosepiece | ● | |
Stage | 132mm*140mm double layers mechanical stage, moving range: 50mm*76mm, precision: 0.1mm. | ● | |
Focusing | Low-position coarse and fine adjustment with stop and tighten structure, moving range: 25mm, fine precision 0.002mm | ● | |
Condenser | NA 1.25 Abbe condenser with iris diaphragm and filter holder | ● | |
Illumination | 3W LED (cold color temperature or warm color temperature is optional, cold color temperature 4750K-5500K, warm color temperature 2850K-3250K), center presetting, intensity adjustable, external wide voltage AC adapter, 100V-240V_AC50/60Hz input, DC6V 2A output. | ● | |
3W LED (cold color temperature or warm color temperature is optional, cold color temperature 4750K-5500K, warm color temperature 2850K-3250K), center presetting, intensity adjustable, with rechargeable battery compartment (for 4pcs Ni-MH AA battery, battery not included), external wide voltage AC adapter, 100V-240V_AC50/60Hz input, DC6V 1A output. | ○ | ||
C-mount Adapter | 0.35× C-mount (Adjustable) | ○ | |
0.5× C-mount (Adjustable) | ● | ||
0.65× C-mount (Adjustable) | ○ | ||
1× C-mount (Adjustable) | ○ | ||
Trinocular tube 23.2mm for digital eyepiece | ○ | ||
Note: ●Standard Outfit, ○Optional
Order Code | Sensor & Size (mm) | Pixel (μm) | G Sensitivity Dark Signal | FPS/Resolution ADC | Binning | Exposure |
BLM5-227 | Sony IMX678(C) | 2.0×2.0 | 1364mv with 1/30s | 30@3840*2160 | 1×1 | 0.04~1000 |
Order Code | Video Saving (FPS/Resolution) | HDMI2.0 (FPS/Resolution) | USB2.0 (FPS/Resolution) | WiFi (FPS/Resolution) |
BLM5-227 | 30@3840*2160 | 30@3840*2160 | 30@3840*2160 | 30@3840*2160 |
Sample Images
Dimension
Unit: mm
Specifications for BestScope BLM5-227 LCD Digital Biological Microscope
| Manufacturer | BestScope |
