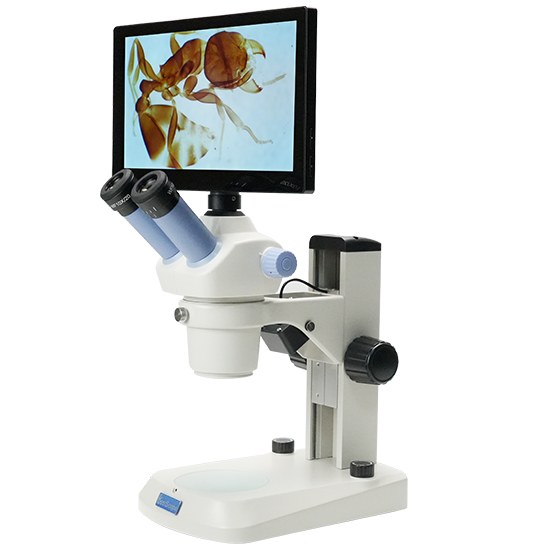

BestScope BLM4-320 LCD Digital Zoom Stereo Microscope
IntroductionBLM4-320 LCD Digital Stereo Zoom Microscope on a post stand offers erect, un-reversed 3D images that very clear throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.BLM4-320 is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. In summary BLM4-320 gives large range of magnifications, working distances, photo…
Model：: BLM4-320 | Eyepiece: 10×/ 20mm | Sensor Size: 1/2.8” | Objective: 1×～4.5× | Resolution: 1920*1080 2MP | Illumination: 100V-240V/ LED
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BLM4-320 LCD Digital Zoom Stereo Microscope
IntroductionBLM4-320 LCD Digital Stereo Zoom Microscope on a post stand offers erect, un-reversed 3D images that very clear throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.BLM4-320 is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. In summary BLM4-320 gives large range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!BLM4-320 adopts all-in-one touch camera that integrates a 10.1inch LCD touch screen with HDMI output of 1920*1080@60fps, and dual USB ports for USB disk and mouse. It has Android 12 operation system and measurement function.BLM4-326 is a combination of BS-3020T and BLC-240A all-in-one camera.
Key Details
| Model： | BLM4-320 |
| Eyepiece | 10×/ 20mm |
| Sensor Size | 1/2.8” |
| Objective | 1×～4.5× |
| Resolution | 1920*1080 2MP |
| Illumination | 100V-240V/ LED |
Features
1.High quality, high function and excellent cost performance.
2.High resolution, Wide viewing field, long working distance.
3.Ergonomic design, sharp image display, wide viewing field and easy to operate.
4.Providing a wide viewing field of Φ20mm with the zoom ratio of 1:4.5.
5.Ideal instrument in academic, medical and industrial field.
6.BLM4-320 adopts all-in-one touch camerathat integrates a 1inch LCD touch screen with HDMI output of 1920*1080@60fps, and dual USB ports for USB disk and mouse. It has Android 12 operation system and measurement function.
Application
BLM4-320 LCD Digital Stereo Zoom Microscope can be used for circuit board repair and inspection, SMT work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.
Specification
Item | Specification | BLM4-320 | |
LCD Digital Camera | BLC-240A All-in-One Touch Camera with HDMI output, 1920*1080@60fps, 10.1inch LCD touch screen with Android 12 operation system and measurement function. Dual USB ports for USB disk and mouse. | ● | |
Viewing Head | Trinocular head, inclined at 45°, interpupillary distance, 55-75mm | ● | |
Eyepiece | Wide field eyepiece 10×/ 20mm | ● | |
Wide field eyepiece 15×/ 16mm | ○ | ||
Wide field eyepiece 20×/ 12mm | ○ | ||
Wide field eyepiece 30×/8mm | ○ | ||
WF10× Eyepiece with cross line | ○ | ||
Objective | Zoom objective | 0.7×～3× | ○ |
1×～4.5× | ● | ||
Auxiliary objective | 2×, W.D.: 30mm | ○ | |
0.75×, W.D.: 120mm | ○ | ||
0.63×, W.D.: 137mm | ○ | ||
0.5×, W.D.: 180mm | ○ | ||
Zoom Ratio | 1:4.3 | ○ | |
1:4.5 | ● | ||
Working Distance | 97mm | ● | |
Focusing | Coarse focus, focusing range 100mm | ● | |
Illumination | Incident illumination 100V-240V/ LED | ● | |
Transmitted illumination 100V-240V/ LED | ● | ||
Attachment | Photo attachment (used for connecting Nikon or Canon DSLR camera to the microscope) | ○ | |
Video attachment (0.5× C-mount) | ● | ||
Note: ● Standard Outfit, ○ Optional
Item | Description |
Screen | 10.1 inch IPS TFT-LCD |
Screen Resolution | 1920*1200 |
Screen Color | 16.7M, 72% NTSC |
Luminance | 300cd/m2 |
Contrast Ratio | 800:1 |
Viewing Angle | 89/89/89/89 |
Processor | ARM-A55 64-bit Quad Core 1.5GHz |
Running Memory | 16 GB |
Built-in Storage | 256 GB |
Network | Support 5G and 2.4G Wifi, independent single antenna |
Sensor | SONY IMX307 (C) |
Sensor Size | 1/2.8” |
Resolution | 1920*1080 2MP |
Pixel | 2.9μm*2.9μm |
HDMI Interface | HDMI 1.4 1920*1080@60fps (Mini) |
Dual USB-C Interface | Connect to USB mouse, USB disk |
SD Card Slot | Supporting |
Power Button | Short press to turn on, long press to turn off |
Photo Button | Supporting |
Power Supply | DC 12V/ 2A |
Operating System | Android 12 |
Optional Software | TScopePadView |
Auxiliary functions | Exposure and gain adjustment, white balance, color adjustment, automatic sharpening, automatic denoising, light source frequency, flipping, etc. |
Measurement Function | Straight line length, broken line length, distance between parallel line, point to line distance, radius circle, three-point circle, concentric circle, center distance, polygon, rectangle, three-point angle, measurement data export, etc. |
Image | 2M (1920*1080) JPEG |
Video Storage | 2M (1920*1080) MP4 30fps |
Language | Chinese/ Tradional Chinese/ Russian/ English/ German/ French/ Japanese/ Itlian |
Details
1.Viewing Head
Trinocular head, inclined at 45°, interpupillary distance, 55-75mm.
Wide field eyepiece 10×/ 20mm.
2.Illumination
Incident illumination 100V-240V/ LED, brightness adjustable.
Transmitted illumination 100V-240V/ LED, brightness adjustable.
3.Objective
Zoom objective :1X-4.5X.
4.Zoom ratio
Zoom ratio: 1:4.5.
5.Focusing
Coarse focus, focusing range 100mm.
System Diagram
Specifications for BestScope BLM4-320 LCD Digital Zoom Stereo Microscope
| Manufacturer | BestScope |
