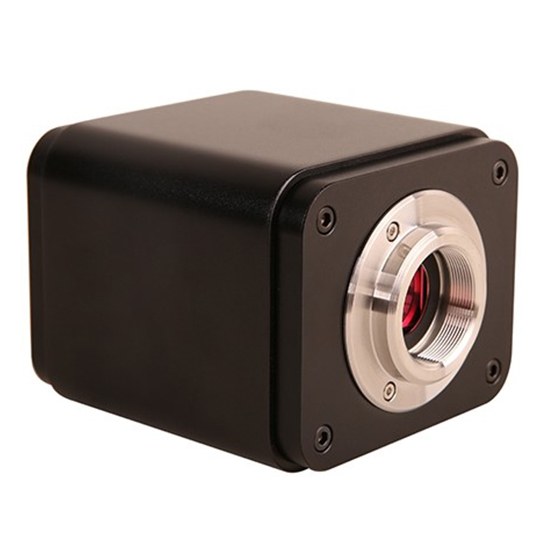

BestScope BHC4-4KT8MPB C-mount CMOS 4K HDMI Camera with Touch Function

Interface

Function Description

USB Mouse

If the touch function is used, this interface does not need to be connected, and the XCamView software is directly controlled by touching; If the interface is switched to the mouse operation mode, the USB mouse interface can be connected for the control of the built-in XCamView software

USB Video

Connect PC or other host device to realize video image transmission

HDMI

Comply with HDMI1.4 standard. 4K or 1080P format video output for standard monitor

DC12V

Power adapter connection (12V/1A or 12V/2A)

SD

Comply with SDIO3.0 standard and SD card could be inserted for video and images storage

USB

In touch mode, using USB Type-A to Type-C cable to connect with touch screen; In mouse mode, USB Flash Drive can be inserted.

LED

LED status indicator

ON/OFF

Power switch

Video Output Interface

Function Description

HDMI Interface

Comply with HDMI1.4 standard

30fps@4K or 30fps@1080P

USB Video Interface

Connecting USB port of PC for video transfer

MJPEG format video

Other Function

Function Description

Video Saving

Video format: 8M(3840*2160) H264/H265 encoded MP4 file

Video saving frame rate: 30fps

Image Capture

8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive

Measurement Saving

Measurement information saved in layer mode with image content

Measurement information is saved together with image content in burn in mode

ISP Function

Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, 50HZ/60HZ Anti-flicker Function

Image Operations

Zoom In/Zoom Out, Mirror/Flip, Freeze, Embedded Files Browser, Video Playback, Measurement Function

Embedded RTC(Optional)

To support accurate time on board

Restore Factory Settings

Restore camera parameters to its factory status

Multiple Language Support

English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian

Software Environment under USB Video Output

White Balance

Auto White Balance

Color Technique

Ultra-Fine^TM Color Engine

Capture/Control SDK

Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)

Recording System

Still Picture or Movie

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10 /11(32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 4GB or More

Display:19” or Larger

CD-ROM

Operating Environment

Operating Temperature

(in Centidegree)

-10°~ 50°

Storage Temperature

 (in Centidegree)

-20°~ 60°

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 12V/1A Adapter or DC 12V/2A Adapter

Standard Packing List

A

Gift box: L:33cm W:21.5cm H:6.8cm

C

BHC4-4KT series camera

D

Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A

American standard: Model: POWER-U-12V1A(MSA-C1000IC12.0-12H-US)

European standard:Model: POWER-E-12V1A(MSA-C10001C12.0-12H-DE)

OR

Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 2A

American standard: Model: POWER-12V2A(MX24Z1-1202000) + American standard plug

European standard: Model: POWER-12V2A(MX24Z1-1202000)  + European standard plug

E

USB2.0 Type A to Type C data cable /0.5M (Adapt to the situation that the screen is relatively close to the camera)

F

USB2.0 Type A to Type C data cable/1.5M (Adapt to the situation that the screen is far away from the camera)

G

HDMI data cable/0.5M (Adapt to the situation that the screen is relatively close to the camera)

H

HDMI data cable /1.5M (Adapt to the situation that the screen is far away from the camera)

I

USB2.0 A male to A male data cable /2.0M

J

Mouse

K

CD (Driver & utilities software, Ø12cm)

Optional Accessory

B

4K or 1080P touch screen (Optional)

L

SD card (32G or above; Speed: class 10)

M

USB 3.0 Flash Drive(32G or above)

N

Adjustable lens adapter (Not given)

C-Mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

BCN2A-0.5×

BCN2A-0.75×

BCN2A-1×

O

Fixed lens adapter (Not given)

C-Mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

BCN2F-0.5×

BCN2F-0.75×

BCN2F-1×

Note: For I and J optional items, please specify your camera type(C-mount, microscope camera or telescope camera),  Tek engineer will help you to determine the right microscope or telescope camera adapter for your application;

P

108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube (Not given)

Q

108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube (Not given)

R

Calibration kit (Not given)

TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

Extension


C-mount Camera

Machine vision; Medical imaging;

Semiconductor equipment; Test instruments;

Document scanners; 2D barcode readers;

Web camera and security video;

Microscope imaging;
