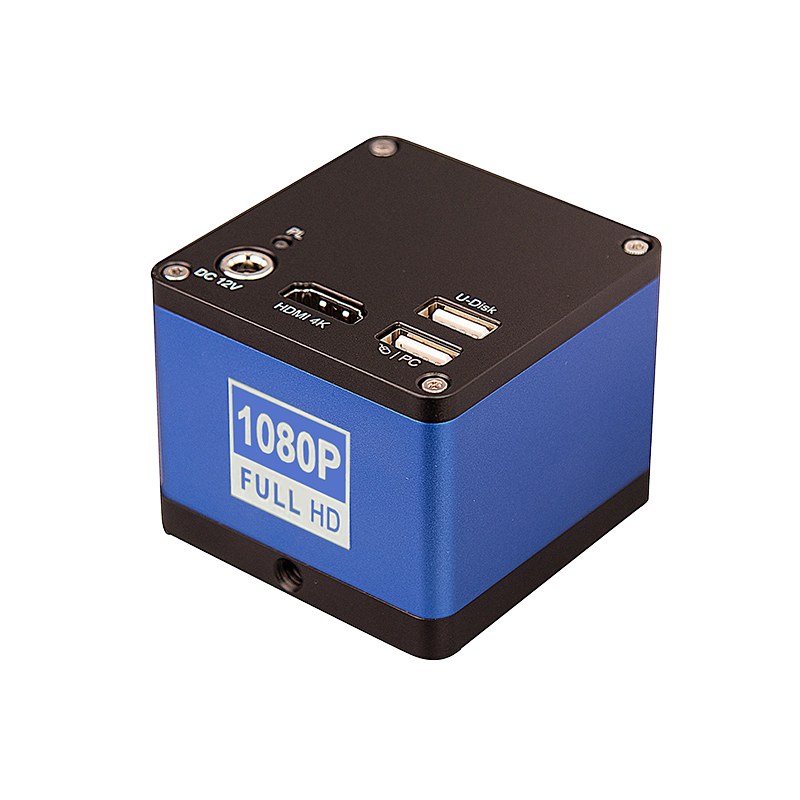

BestScope BHC2B-4K8MPA HDMI CMOS Camera
BHC2B-4K8MPA HDMI CMOS Camera adopts ultra-high performance CMOS sensors and can be directly connected to an HDMI monitor. 1080P/4K resolution makes it easy to connect to high-definition displays currently on the market.
Model: BHC2B-4K8MPA | Sensor: SONY IMX678 (C) | Chip Size: 1/1.8" | Pixel Size: 2.0μm*2.0μm | Processor: ARM Cortex Dual Core 1.2GHz | HDMI Interface: 1.4 1920*1080@60fps 3840*2160@30fps
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BHC2B-4K8MPA HDMI CMOS Camera
BHC2B-4K8MPA HDMI CMOS Camera adopts ultra-high performance CMOS sensors and can be directly connected to an HDMI monitor. 1080P/4K resolution makes it easy to connect to high-definition displays currently on the market.
Key Details
| Model | BHC2B-4K8MPA |
| Sensor | SONY IMX678 (C) |
| Chip Size | 1/1.8" |
| Pixel Size | 2.0μm*2.0μm |
| Processor | ARM Cortex Dual Core 1.2GHz |
| HDMI Interface | 1.4 1920*1080@60fps 3840*2160@30fps |
Features
1.High resolution COMS camera with HDMI interface, for connecting to high-definition displays. BHC2B-1080A has a USB 2.0 port for USB storage device, mouse or connecting to PC to transfer data. BHC2B-4K8MPA has dual USB 2.0 ports. The USB1 and USB2 interfaces can be connected to USB storage devices and mouse, while USB2 can also be connected to computers for image data transfer in real time.
2.The various functions of controlling the camera can be showed in the form of a control panel on the HDMI displays. The users can use the mouse to directly control the camera and do measurement.
3.Built-in software supports high-speed image acquisition and preview, strong light suppression, wide dynamic range, realistic color reproduction, and clear image. It has multiple ISP adjustment functions, supporting photography, video recording and preview, with rich measurement functions.
Specification
Model | BHC2B-1080A | BHC2B-4K8MPA |
Sensor | SONY IMX307 (C) | SONY IMX678 (C) |
Sensor Size | 1/2.8” | 1/1.8” |
Resolution | 1920*1080 2MP | 3840*2160 8MP |
Pixel Size | 2.9μm*2.9μm | 2.0μm*2.0μm |
Processor | ARM Cortex-A7 Dual Core | ARM Cortex Dual Core 1.2GHz |
HDMI Interface | HDMI 1.4 1920*1080@60fps | HDMI 1.4 1920*1080@60fps 3840*2160@30fps |
USB Interface | for USB storage device, mouse or connecting to PC to transfer data | USB 1: connect to USB mouse, USB disk, etc. |
USB 2: connect to PC, USB mouse, USB disk, etc. | ||
SD Card Slot | Supporting | |
Power Supply | DC 12V/2A | DC 12V/2A |
Operating System | Hypervision 2.0 | Hypervision 2.0 |
Optional Software | TSCamView/ TSCamView Pro | TSCamView/ TSCamView Pro |
Auxiliary functions | Exposure and gain adjustment, white balance, color adjustment, automatic sharpening, automatic denoising, light source frequency, flipping, etc. | |
Measurement Function | TSCamView: Straight line length, radius circle, rectangle, three-point circle, reticles, measurement data export | |
TSCamView Pro: Straight line length, broken line length, distance between parallel line, point to line distance, radius circle, three-point circle, concentric circle, center distance, polygon, rectangle, three-point angle, reticles, measurement data export, etc. | ||
Image | 2M (1920*1080) JPEG | 8M (3840*2160) JPEG |
Vedio | 2M (1920*1080) MP4 30fps | |
Language | Chinese/ Tradional Chinese/ Russian/ English/ German/ French/ Japanese/ Itlian | |
Size | 52mm*52mm*62.4mm | 63mm*63mm60.5mm |
Specifications for BestScope BHC2B-4K8MPA HDMI CMOS Camera
| Manufacturer | BestScope |
