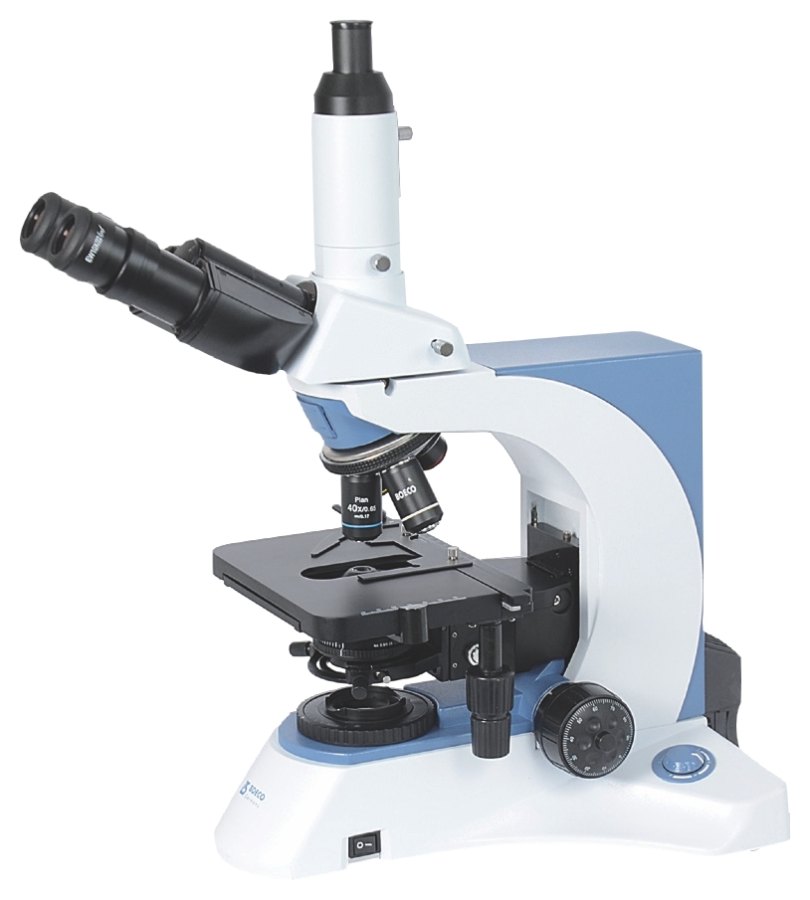

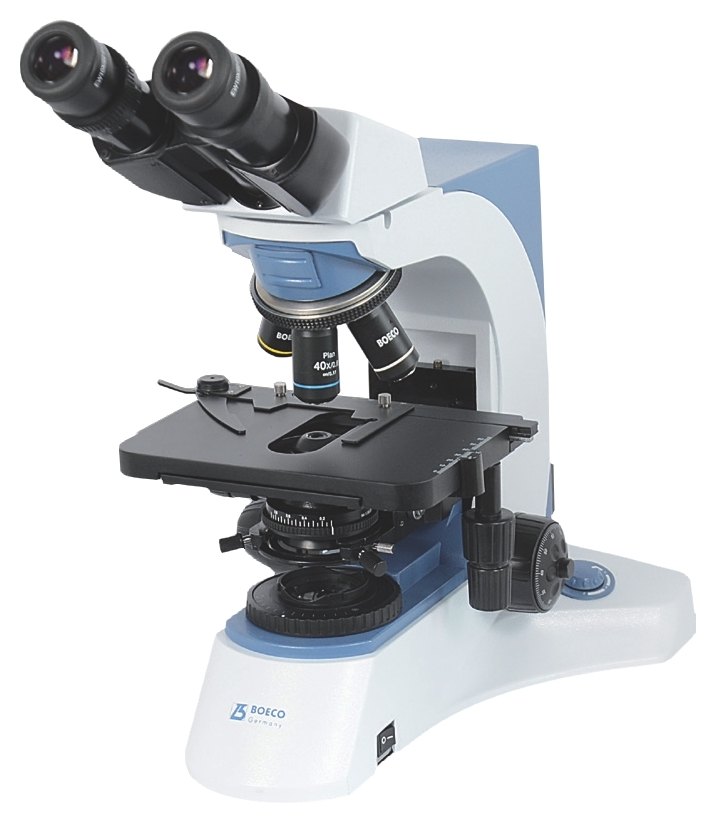

BOECO Laboratory Binocular Microscope BM-800
BOECO Laboratory Binocular Microscope BM-800 (BOECO, Germany).
- Optical System: Infinity corrected system, field diameter 22 mm
- Vieving Head: Bin- or Trinocular compensation free head, 30° inclined, 360° rotatable, Interpupillary distance 48 - 75 mm
- Nosepiece: Backward quintuple revolving nosepiece
- Eyepiece: Larger viewing area with extra wide field eyepiece EWF 10X /22 mm
- Objectives: BOECO Infinite corrected Plan Achromat Objectives 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1.25 (S, Oil)
- Stage: Large sized double layer mechanical specimen stage. 185 x 142 mm, Moving range 75 x 55 mm,
Available in 4 versions plus 22 accessories.
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
Specification – Model BM-800
| Optical System | Infinity corrected system, field diameter 22 mm |
| Vieving Head | Bin- or Trinocular compensation free head, 30° inclined, 360° rotatable, Interpupillary distance 48 - 75 mm |
| Nosepiece | Backward quintuple revolving nosepiece |
| Eyepiece | Larger viewing area with extra wide field eyepiece EWF 10X /22 mm |
| Objectives | BOECO Infinite corrected Plan Achromat Objectives 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1.25 (S, Oil) |
| Stage | Large sized double layer mechanical specimen stage. 185 x 142 mm, Moving range 75 x 55 mm, |
| Focusing | Coaxial coarse and calibrated fine focus control,fine division 0,001 mm, Coarse stroke 37,7mm/rotationfine stroke 0,1mm/rotation, mowing Range 24 mmsafety autofocus stop unit. |
| Condenser | Swing condenser, N.A. 0,9/0,25, |
| Field diaphragm | With aspherical condenser and Köhler Illumination |
| Illumination | 5W LED lamp, light intensity adjustable. |
| Body /power | Modern and ergonomic body made from die-cast aluminium with inbuilt power supply 110-240V, 50/60Hz |
| Supplied with | Dust cover, immersion oil, green filter and instruction manual |
| Dimension | 280 x 358 x 304/416 mm, net weight 10,0/10,4 kgs |
Ordering Information
Microscope
| Code | Description | Head | Plug |
|---|---|---|---|
| BOE 8000.550 | BM-800/I/PL | Binocular | Euro |
| BOE 8000.551 | BM-800/I/PL | Binocular | US |
| BOE 8000.560 | BM-800/T/I/PL | Trinocular | Euro |
| BOE 8000.561 | BM-800/T/I/PL | Trinocular | US |
Accessories
| Code | Description |
|---|---|
| BOE 8000.301 | EW eyepiece 10X/22mm |
| BOE 8000.302 | EW eyepiece 10x/22mm with pointer |
| BOE 8000.303 | EW eyepiece 10x/22mm with micrometer |
| BOE 8000.552 | BOECO Infinite E Plan Achrom. Objective 4X |
| BOE 8000.553 | BOECO Infinite E Plan Achrom. Objective 10X |
| BOE 8000.559 | BOECO Infinite E Plan Achrom. Objective 20X |
| BOE 8000.554 | BOECO Infinite E Plan Achrom. Objective 40X (S) |
| BOE 8000.555 | BOECO Infinite E Plan Achrom. Objective 100X (S) (Oil) |
| BOE 8000.305 | Dark Field Condenser (Dry) NA 0,7-0,9 |
| BOE 8000.306 | Dark Field Condenser (Oil) NA 1,25-1,36 |
| BOE 1800.419 | Objective 100X plan-achrom. for Dark field cond. (Oil) |
| BOE 8000.325 | Simple Polarization set |
| BOE 8000.802 | 1x Video Attachment with C mount |
| BOE 8000.903 | Turret Annular Phase Contrast Kit, consisting of: Phase Contrast Infinity Plan-achromatic Objectives 10X,20X(S), 40X(S), 100X(S,Oil),Turret Annular Phase, Contrast Condenser, Centering Telescope, Green Filter |
| BOE 8000.906 | Epi-Fluorescent Attachment: B (Blue) BP460-495, G (Green) BP 510-550 Excitation Light Filter system,O Ordinary Light System, 100WHBO Ultra Hi-voltage Spherical Mercury Lamp, Barrier to resist the Ultraviolet light, Power Supply with Digital Display, AC Input 100-240V |
| BOE 8000.923 | Infinite Plan Fluorescence Free Obj. 4X |
| BOE 8000.924 | Infinite Plan Fluorescence Free Obj. 10X |
| BOE 8000.925 | Infinite Plan Fluorescence Free Obj. 20X |
| BOE 8000.926 | Infinite Plan Fluorescence Free Obj. 40X |
| BOE 8000.927 | Infinite Plan Fluorescence Free Obj. 100X |
| BOE 8000.908 | U (ultraviolet) BP330-385 Excitation light filter system |
| BOE 8000.909 | V (violet) BP400-410 Excitation light filter system |
Source: BOECO Germany
المواصفات BOECO Laboratory Binocular Microscope BM-800
| Item | Microscope أو EW eyepiece 10X/22mm أو EW eyepiece 10x/22mm with pointer أو EW eyepiece 10x/22mm with micrometer أو BOECO Infinite E Plan Achrom. Objective 4X أو BOECO Infinite E Plan Achrom. Objective 10X أو BOECO Infinite E Plan Achrom. Objective 20X أو BOECO Infinite E Plan Achrom. Objective 40X (S) أو BOECO Infinite E Plan Achrom. Objective 100X (S) (Oil) أو Dark Field Condenser (Dry) NA 0,7-0,9 أو Dark Field Condenser (Oil) NA 1,25-1,36 أو Objective 100X plan-achrom. for Dark field cond. (Oil) أو Simple Polarization set أو 1x Video Attachment with C mount أو Turret Annular Phase Contrast Kit, consisting of: Phase Contrast Infinity Plan-achromatic Objectives 10X,20X(S), 40X(S), 100X(S,Oil),Turret Annular Phase, Contrast Condenser, Centering Telescope, Green Filter أو Epi-Fluorescent Attachment: B (Blue) BP460-495, G (Green) BP 510-550 Excitation Light Filter system,O Ordinary Light System, 100WHBO Ultra Hi-voltage Spherical Mercury Lamp, Barrier to resist the Ultraviolet light, Power Supply with Digital Display, AC Input 100-240V أو Infinite Plan Fluorescence Free Obj. 4X أو Infinite Plan Fluorescence Free Obj. 10X أو Infinite Plan Fluorescence Free Obj. 20X أو Infinite Plan Fluorescence Free Obj. 40X أو Infinite Plan Fluorescence Free Obj. 100X أو U (ultraviolet) BP330-385 Excitation light filter system أو V (violet) BP400-410 Excitation light filter system |
| Model | BM-800/I/PL, Binocular, Euro plug أو BM-800/I/PL, Binocular, US plug أو BM-800/T/I/PL, Trinocular, Euro plug أو BM-800/T/I/PL, Trinocular, US plug أو Accessories |
| Manufacturer | BOECO |
