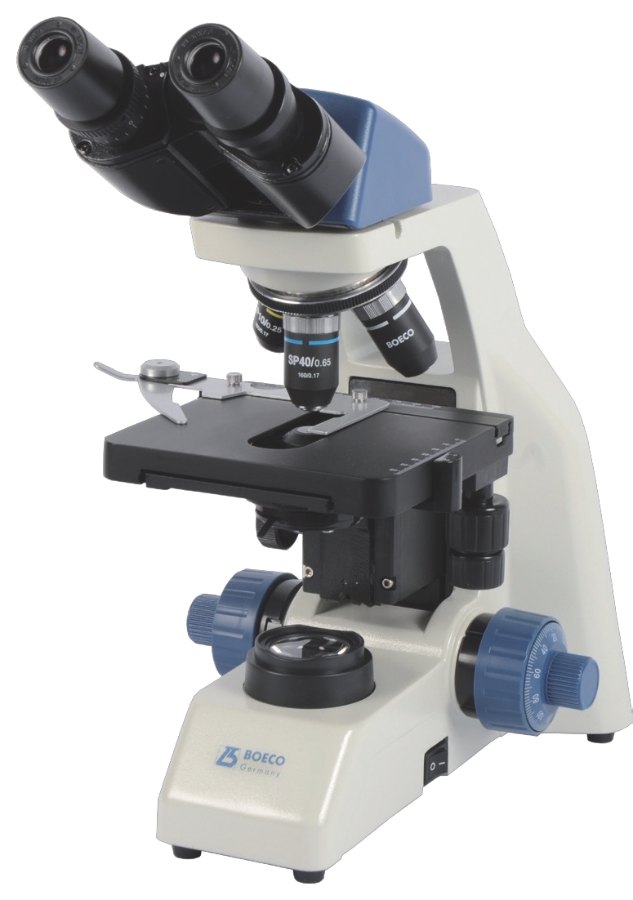

BOECO Binocular Microscope BM-190 SP
BOECO Binocular Microscope BM-190 SP (BOECO, Germany).
- Magnification: 40X- 1600X
- Optical system: Siedentopf Viewing Head, 30° inclined, 360° rotatable, Interpupillary Distance 47 - 78 mm, diopter adjustable (left)
- Nosepiece: Backward quadruple revolving nosepiece
- Eyepiece: Pair Eyepiece WF 10X /18 mm Widefield
- Objectives: BOECO Semi-plan Achromat DIN Objectives 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1,25 (S, Oil)
- Stage: Double layer mechanical specimen stage. 140 x 140 mm moving range 75 x 50 mm, Right hand stage handle
Available in 4 versions plus 19 accessories.
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
Specification – Model BM-190
| Magnification | 40X- 1600X |
| Optical system | Siedentopf Viewing Head, 30° inclined, 360° rotatable, Interpupillary Distance 47 - 78 mm, diopter adjustable (left) |
| Nosepiece | Backward quadruple revolving nosepiece |
| Eyepiece | Pair Eyepiece WF 10X /18 mm Widefield |
| Objectives | BOECO Semi-plan Achromat DIN Objectives 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1,25 (S, Oil) |
| Stage | Double layer mechanical specimen stage. 140 x 140 mm moving range 75 x 50 mm, Right hand stage handle |
| Focusing | Low position, coaxial coarse and calibrated fine focus control, with graduation reading 2 microns per division. Total focusing range 25 mm, Safety stop unit. |
| Condenser | Abbè Brightfield condenser, N.A. 1,25, Integrated Iris diaphragm and filter tray. With rack & pinion height adjustment |
| Illumination | S-LED, brightness adjustable. |
| Body /power | Sturdy body with supportive rubber and inbuilt power supply 100-240V, 50/60 Hz |
| Supplied with | Dust cover, green filter, immersion oil, instruction manual |
| Dimension | 208(W) x 266(D) x 370(H) mm |
| Weight | Net weight 6,9 / 7,2 kgs. |
| Packing | Styrofoam shelve in a cardboard box |
Ordering Information
Microscope
| Code | Description | Head | Plug |
|---|---|---|---|
| BOE 1900.200 | BM-190/SP | Binocular | Euro |
| BOE 1900.201 | BM-190/SP | Binocular | US |

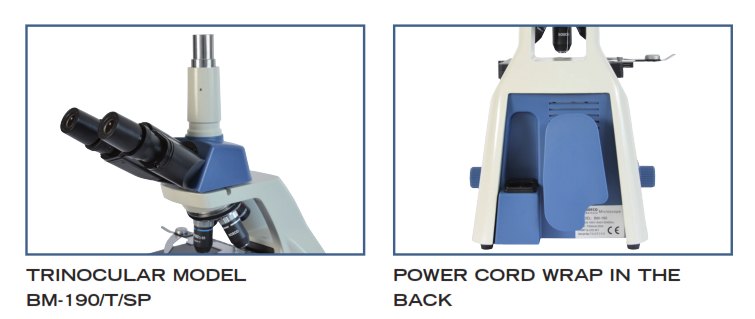

| BOE 1900.230 | BM-190/T/SP | Trinocular | Euro |
| BOE 1900.231 | BM-190/T/SP | Trinocular | US |
Objectives for BM-190/SP, BM-180/SP
| Code | Description |
|---|---|

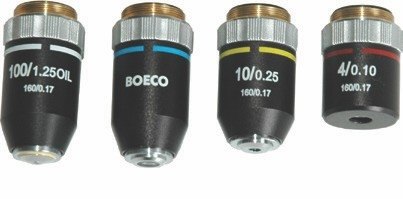

| BOE 1800.413 | BOECO Black Semi-Plan Achromat DIN Obj. 4X |
| BOE 1800.414 | BOECO Black Semi-Plan Achromat DIN Obj. 10X |
| BOE 1800.418 | BOECO Black Semi-Plan Achromat DIN Obj. 20X |
| BOE 1800.415 | BOECO Black Semi-Plan Achromat DIN Obj. 40X (S) |
| BOE 1800.416 | BOECO Black Semi-Plan Achromat DIN Obj. 100X (S)(Oil) |
Eyepieces for BM-190, BM-180, BM-120, BM-117, N-10
| Code | Description |
|---|---|
| BOE 1800.301 | Wide Field Eyepiece WF 10x, pc. |
| BOE 1800.302 | Wide Field Eyepiece WF 10x with Pointer, pc. |
| BOE 1800.303 | Wide Field Eyepiece WF 10x with 0,1 Micrometer, pc. |
| BOE 1800.304 | Eyepiece P 16x, pc. |
Dark Field Condensers for BM-180/SP, BM-190/SP
| Code | Description |
|---|---|
| BOE 1800.305 | Dark Field Condenser (Dry) NA 0-7-0,9 |
| BOE 1800.306 | Dark Field Condenser (Oil) NA 1,25-1,36 |
| BOE 1800.412 | Achromatic Objective 100X for Dark Field (Oil) with cone diaphragm |
| BOE 1800.417 | Plan-Achromatic Objective 100X for Dark Field (Oil) with Iris Diaphragm |
Phase Contrast Kits for BM-180/SP, BM-190/SP
| Code | Description |
|---|---|
| BOE 1800.902 | Annular Phase Contrast Kit, consisting of:Simple Phase Contrast Achromatic Objectives & Diaphragms PH10X, PH40X & PH100X, Centering Telescope |
| BOE 1800.903 | Turret Annular Phase Contrast Kit, consisting of:Phase Contrast Plan-achromatic Objectives 10X, 20X(S), 40X(S), 100X(S,Oil), Turret Annular Phase Contrast Condenser, Centering Telescope, Green Filter |
| BOE 1800.904 | Sliding Phase Contrast Kit, consisting of:Sliding Phase Contrast Condenser, Green Filter, Plan achromatic Phase Contrast Objectives PH10X, PH40X, Centering Telescope |
Epi-Fluorescent Attachments for BM-180/SP, BM-190/SP
| Code | Description |
|---|---|
| BOE 1800.906 | Epi-Fluorescent attachment complete set B (Blue), G (Green) Excitation Light Filter system, O Ordinary Light System, 100WHBO Ultra Hi-voltage Spherical Mercury Lamp, Barrier to resist the Ultraviolet light, Power Supply with Digital Display, AC Input 100-240V, Fluorescenct Free Objective 4X, 10X, 40X(S), 100X(S)(Oil), Fluorescent Free Oil |
| BOE 1800.908 | U (ultraviolet) Excitation light filter system |
| BOE 1800.909 | V (violet) Excitation light filter system |
Source: BOECO Germany
المواصفات BOECO Binocular Microscope BM-190 SP
| Item | Microscope أو Dark Field Condenser (Oil) NA 1,25-1,36 أو BOECO Black Semi-Plan Achromat DIN Obj. 4X أو BOECO Black Semi-Plan Achromat DIN Obj. 10X أو BOECO Black Semi-Plan Achromat DIN Obj. 20X أو BOECO Black Semi-Plan Achromat DIN Obj. 40X (S) أو BOECO Black Semi-Plan Achromat DIN Obj. 100X (S)(Oil) أو Wide Field Eyepiece WF 10x أو Wide Field Eyepiece WF 10x with Pointer أو Wide Field Eyepiece WF 10x with 0,1 Micrometer أو Eyepiece P 16x أو Dark Field Condenser (Dry) NA 0-7-0,9 أو Achromatic Objective 100X for Dark Field (Oil) with cone diaphragm أو Plan-Achromatic Objective 100X for Dark Field (Oil) with Iris Diaphragm أو Annular Phase Contrast Kit, consisting of:Simple Phase Contrast Achromatic Objectives & Diaphragms PH10X, PH40X & PH100X, Centering Telescope أو Turret Annular Phase Contrast Kit, consisting of:Phase Contrast Plan-achromatic Objectives 10X, 20X(S), 40X(S), 100X(S,Oil), Turret Annular Phase Contrast Condenser, Centering Telescope, Green Filter أو Sliding Phase Contrast Kit, consisting of:Sliding Phase Contrast Condenser, Green Filter, Plan achromatic Phase Contrast Objectives PH10X, PH40X, Centering Telescope أو Epi-Fluorescent attachment complete set B (Blue), G (Green) Excitation Light Filter system, O Ordinary Light System, 100WHBO Ultra Hi-voltage Spherical Mercury Lamp, Barrier to resist the Ultraviolet light, Power Supply with Digital Display, AC Input 100-240V, Fluorescenct Free Objective 4X, 10X, 40X(S), 100X(S)(Oil), Fluorescent Free Oil أو U (ultraviolet) Excitation light filter system أو V (violet) Excitation light filter system |
| Model | Accessories أو BM-190/SP, Binocular, Euro plug أو BM-190/SP, Binocular, US plug أو BM-190/T/SP, Trinocular, Euro plug أو BM-190/T/SP, Trinocular, US plug |
| Manufacturer | BOECO |
