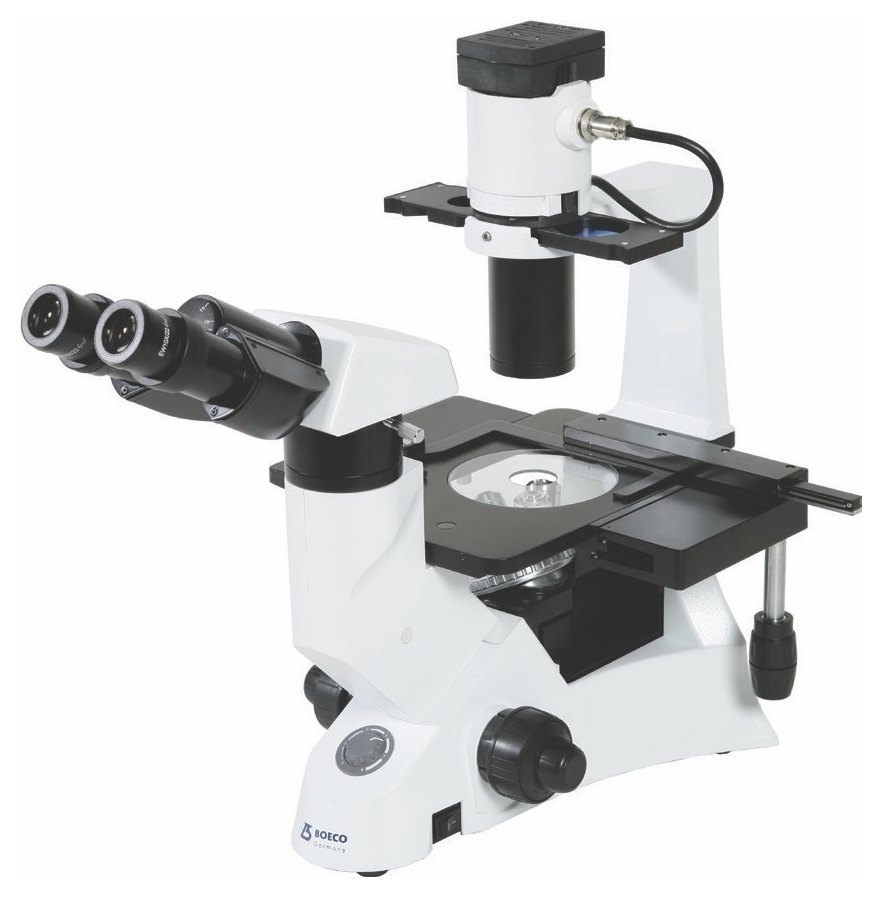

BOECO Inverted Biological Microscope BIB-100
BOECO Inverted Biological Microscope BIB-100 (BOECO, Germany).
- Optical System: Infinity corrected system, field diameter 22 mm
- Viewing Head: Bino- or Trinocular Head, 30° 360° rotatable, Interpupillary Distance 48 - 75 mm
- Nosepiece: Quintuple revolving nosepiece
- Eyepiece: High-point, Extra Wide FieldEyepiece EW 10X /22 mm
- Objectives: LWD Infinity corrected Plan Achromat Objective 4X/0,1WD 28 mm
- : LWD Infinity corrected Plan Achromat Objective 40X/0,8WD 2.1 mm
Available in 4 versions plus 4 accessories.
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
Specification – Model BIB-100
| Optical System | Infinity corrected system, field diameter 22 mm |
| Viewing Head | Bino- or Trinocular Head, 30° 360° rotatable, Interpupillary Distance 48 - 75 mm |
| Nosepiece | Quintuple revolving nosepiece |
| Eyepiece | High-point, Extra Wide FieldEyepiece EW 10X /22 mm |
| Objectives | LWD Infinity corrected Plan Achromat Objective 4X/0,1WD 28 mm |
| LWD Infinity corrected Plan Achromat Objective 40X/0,8WD 2.1 mm | |
| Infinity corrected Plan Achromat Phase Objective 10X/0,25WD 10 mm | |
| Infinity corrected Plan Achromat Phase Objective 20X/0,4WD 5.1 mm | |
| Condenser | ELWD condesner NA 0.3. LWD 72 mm (without condenser 150 mm) |
| Centering | Centering Telescope 30 mm diam. Telescope Phase Annulus 10X -20X Phase Annulus Plate |
| Stage | PlainStage 160 x 250 mm, Glass Insert AuxilaryStage 70 x 180 mm, Attachable Mechanical Ruler |
| Focusing | Coaxial coarse and fine adjustment. Vertical objective movement, |
| Coarses stroke 37.7 mm per rotation,Fine Stroke: 0,2 mm per Rotation | |
| Filter | Diameter 45 mm, blue, green and ground glass |
| Illumination | 12V 30W Halogen lamp, light intensity adjustable. |
| Body | Innovative stand structure |
| Power | Inbuilt power supply 100-240V, 50/60Hz |
| Weight | Net weight 11,0 / 11,7 kgs. |
| Supplied with | Dust cover, immersion oil and instruction manual |
Ordering Information
Microscope
| Code | Description | Head | Plug |
|---|---|---|---|
| BOE 5000.900 | BIB-100 | Binocular | Euro |
| BOE 5000.901 | BIB-100 | Binocular | US |
| BOE 5000.930 | BIB-100/T | Trinocular | Euro |
| BOE 5000.531 | BIB-100/T | Trinocular | US |
Optional Accessories
| Code | Description |
|---|---|

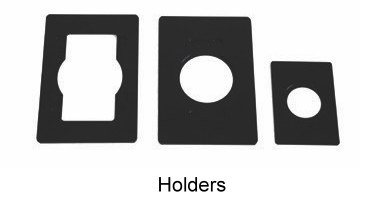

| BOE 5000.220 | Terasaki Holder |
| BOE 5000.221 | 35 mm diam. Petri dish holder |
| BOE 5000.222 | 54 mm diam. Slide glass holder |

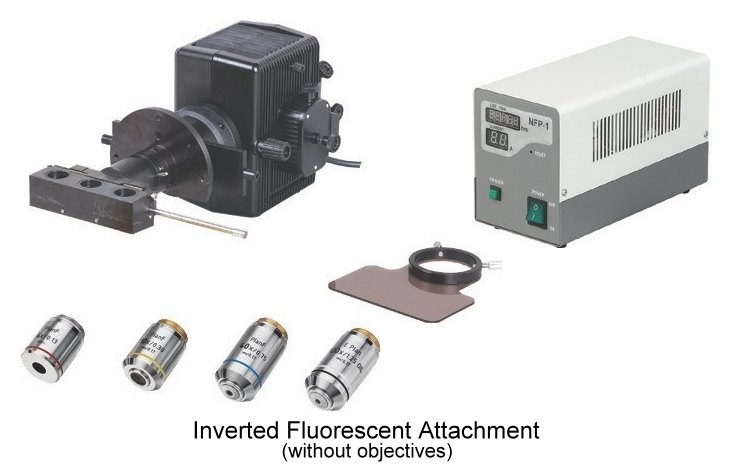

| BOE 5000.906 | Inverted Fluorescent Attachment for BIB-100, without objectives |
Source: BOECO Germany
المواصفات BOECO Inverted Biological Microscope BIB-100
| Item | Microscope أو Terasaki Holder أو 35 mm diam. Petri dish holder أو 54 mm diam. Slide glass holder أو Inverted Fluorescent Attachment for BIB-100, without objectives |
| Model | Accessories أو BIB-100, Binocular, Euro plug أو BIB-100, Binocular, US plug أو BIB-100/T, Trinocular, Euro plug أو BIB-100/T, Trinocular, US plug |
| Manufacturer | BOECO |
