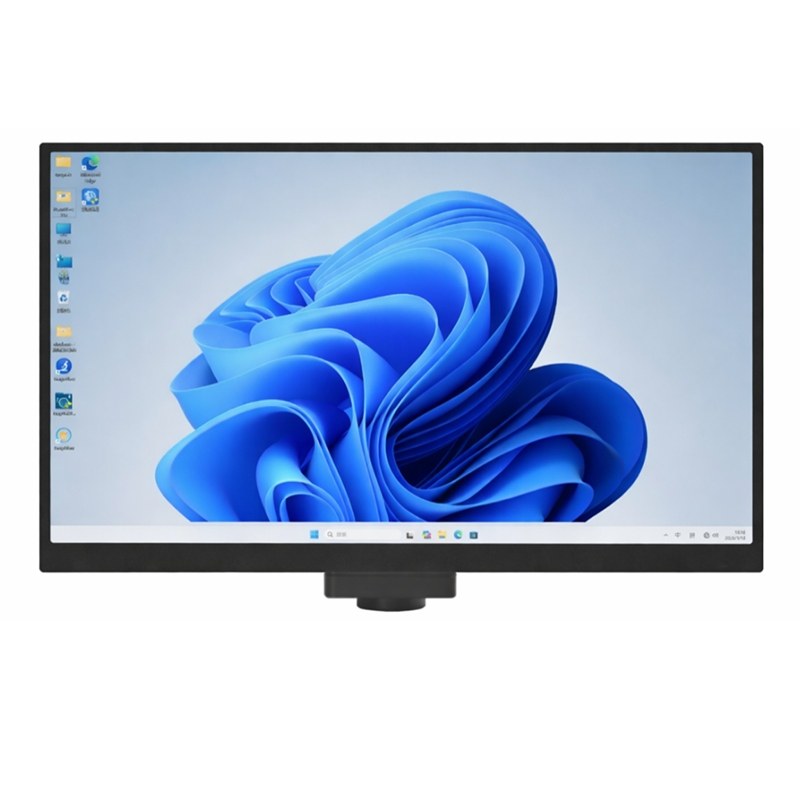

BestScope BLC-482B All-in-One Camera
IntroductionThe BLC-482 is a multifunctional all-in-one camera that integrates a 13.3-inch display screen and an image acquisition system. It is portable and can be used for microscopic video and image acquisition and processing. The system is Window System.
Model: BLC-482B | Sensor: IMX676 (C) | Sensor Size: 1/1.6"(7.07*7.07) | Pixel (μm): 2.0x2.0 | FPS: 27@3536*3536 60@1768*1768 | G Sensitivity Dark Signal: 3541mv with 1/30s 0.15mv with 1/30s | Exposure: 0.013ms~15s | Binning: 1x1 2x2
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
BLC-482B All-in-One Camera
IntroductionThe BLC-482 is a multifunctional all-in-one camera that integrates a 13.3-inch display screen and an image acquisition system. It is portable and can be used for microscopic video and image acquisition and processing. The system is Window System.
Key Details
| Model | BLC-482B |
| Sensor | IMX676 (C) |
| Sensor Size | 1/1.6"(7.07*7.07) |
| Pixel (μm) | 2.0x2.0 |
| FPS | 27@3536*3536 60@1768*1768 |
| G Sensitivity Dark Signal | 3541mv with 1/30s 0.15mv with 1/30s |
| Exposure | 0.013ms~15s |
| Binning | 1x1 2x2 |
Feature
The basic characteristic is listed as below:
- The camera and display screen are integrated together, eliminating wiring and facilitating installation.
- Built-in Intel® N150 processor with a maximum turbo frequency of up to 3.6 GHz.
- Pre-installed Windows operating system with touch support, Optional with a wireless keyboard and mouse.
- Uses a Sony CMOS sensor, supports large-format high-resolution sensors, and allows customized model development.
- Supports synchronous 4K60Hz video output via HDMI 2.0 or USB Type-C interfaces.
- Supports Gigabit Ethernet and WiFi 6 wireless networking; XCamView network digital interactive software will be provided for networked teaching applications.
- Comes with advanced video and image processing software applications, ImageView and Image
- Provides a Windows SDK supporting native C/C++, C#/VB.NET, DirectShow, and Twain API.
Specification
Order Code | Sensor & Size (mm) | Pixel (μm) | G Sensitivity Dark Signal | Sensor Output FPS/Resolution | Binning | Exposure |
BLC-482A (8.3MP） | IMX678 (C) | 2.0*2.0 | 3541mv with 1/30s | 45@3840*2160 | 1×1 | 0.02ms~15s |
BLC-482B (12.5MP) | IMX676 (C) | 2.0*2.0 | 3637mv with 12bit converted value (HCG) 0.15mv with 1/30s | 27@3536*3536 60@1768*1768 | 1×1 2×2 | 0.013ms~15s |
BLC-482C (20MP) | IMX283(C) | 2.4*2.4 | 462mv with 1/30s 0.21mv with 1/30s | 15@5440*3648 50@2736*1824 60@1824*1216 | 1×1 2×2 3×3 | 0.1ms~15s |
Available Ports on the Panel of the Camera Body
Interface or Button | Description |
Power | Power adapter connection DV 12V 5A (5.5mm*2.5mm) |
HDMI | HDMI-A 2.0 video output interface, supporting 3840*2160@60Hz |
LAN Interface | RJ45 1000 Mbps LAN interface |
Type-C | Supports 3840*2160@60Hz video output |
USB Port | One USB 3.2 port and two USB 2.0 ports for connecting peripherals such as USB flash drives, keyboards, and mice |
HP | Headphone Standard 3.5mm output interface |
MIC | Microphone Standard 3.5mm input interface |
Power Button | Light press to power on and start the system |
LED | LED status indicator |
Function Parameters | |
Operating System | Windows 11 Pro |
CPU | Intel@ Processor N150 |
CPU Frequency | 0.8GHz |
Maximum Turbo Frequency | 3.6GHz |
Number of CPU cores | Quad-core |
CPU Thread | 4-thread |
Memory | 8GB LPDDR5 |
Touch Method | Capacitive touch (G+FF), supporting multi-touch |
Speaker Power | 8 ohms, 1W |
Storage | 128GB SSD |
WiFi | WiFi IEEE 802.11a/b/g/n/ac/ax+BT5.0 |
Power Consumption | Operating power consumption: 40W. Standby power consumption: 0.7W |
Software Environment under WiFi/USB Video Output | |
Display Size | 13.3-inch 1920*1080P 60Hz |
Display Area | 293.76 (H)*165.24 (V) |
Pixel | 0.153*0.153 (H*V) |
Brightness | 400cd/m3 (Typ.) |
Contrast | 15000:1 (Typ.) |
Refresh Rate | 60Hz |
Display Color | 16.7M (8-bit) |
Color gamut | 71% NTSC (Typ.) |
Response time | 14ms |
Operating Environment | |
Operating Temperature | -10°C~ 50°C |
Storage Temperature | -20°C~ 60°C |
Operating Humidity | 10~90%RH, non-condensing |
Storage Humidity | 5~95%RH, non-condensing |
Dimension
Dimension of BLC-482 All-in-One Camera
Packing Information
Packing Information of BLC-482 Series All-in-One Camera
Standard Packing List | |
A | Gift box: L:45cm W:27.8cm H:9cm (1pcs, 1.68Kg/ box) |
B | BLC-482 Series All-in-One Camera |
C | Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 5A |
Optional Accessory | |
D | USB Wireless Keyboard and Mouse Set |
Sample Images
Corn Root Tip.L.S Captured with BLC-482A
Three Year Tilia Stem.C.S Captured with BLC-482A
Circuit Board Captured with BLC-482A
