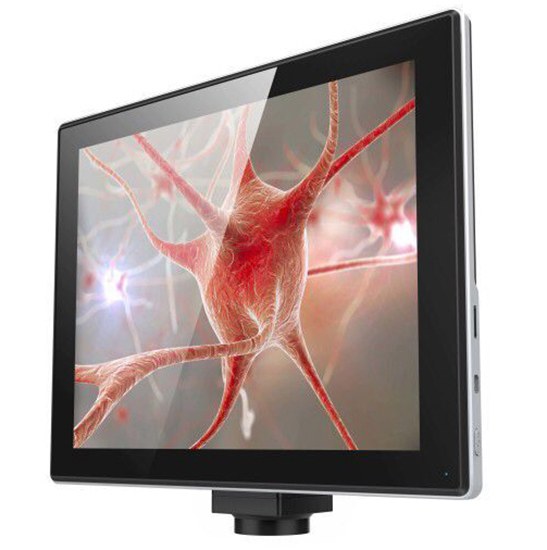

BestScope BLC-350 PLUS Tablet Digital Microscope Camera
BLC-350 PLUS is a new generation tablet camera with latest technology. Equipped with international standard C-type interface, it can be conveniently thread on C-mount coupler and eyepiece adapter. It is compatible with the monocular, binocular, trinocular and any kind of microscopes, such as biological, stereo, video, polarizing, metallurgical microscopes or telescopes.
Model: BLC-350 PLUS | Display: 9.7 Inches Color LCD Touch Screen | Frame Rate: 30pfs(Max) | Pixel Size: 2.2um *2.2um | Preview Frame Rate: 30fps @1024*768; 15fps@2048*1536/1600*1200 | I/O: Built-in Microphone | Operating System: Android 5.1 | Banding Software: Build-in Microscopy Software
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
BLC-350 PLUS Tablet Digital Microscope Camera
BLC-350 PLUS is a new generation tablet camera with latest technology. Equipped with international standard C-type interface, it can be conveniently thread on C-mount coupler and eyepiece adapter. It is compatible with the monocular, binocular, trinocular and any kind of microscopes, such as biological, stereo, video, polarizing, metallurgical microscopes or telescopes.
Key Details
| Model | BLC-350 PLUS |
| Display | 9.7 Inches Color LCD Touch Screen |
| Frame Rate | 30pfs(Max) |
| Pixel Size | 2.2um *2.2um |
| Preview Frame Rate | 30fps @1024*768; 15fps@2048*1536/1600*1200 |
| I/O | Built-in Microphone |
| Operating System | Android 5.1 |
| Banding Software | Build-in Microscopy Software |
Features
- Complete Application Functions, Not Only Camera, Also Tablet PC!
- High Resolution Image Sensor, Good Color Rendition and Definition, 1/2.5 ” CMOS Sensor, 2592*1936.
- Captured Image Resolution is 4032*3024 (Max, by interpolation).
- 9.7inch 2048*1536 HD Color Retinal LCD, Can be Operated by USB Keyboard and Mouse.
- Android 5.1 Operating System.
- RK3288 Quad Core 1.8Hz CPU.
- External 32G C10 High-speed TF Memory Card.
- Wi-Fi and Bluetooth Ready.
- Build-in Microscopy Software for Capture/Record Images and Measurement.
- Standard C-mount Interface.
Parameters
Tablet Specification | ||
Hardware | CPU | RK3288 Quad Core 1.8Hz |
Display | 9.7inches 2048*1536 Color LCD, 5points Capacitance Touch Screen | |
Storage | RAM 2GB DDR3 | |
ROM 8GB | ||
Support External TF Memory Card, Maximum Capacity Up to 32GB | ||
Camera | Frame Rate: 30pfs(Max) | |
Housing Abs+ PC Plastic Housing+ Aluminum Back Case, Metal Stand | Housing | Abs+ Metal Housing, Metal Stand |
Network | WI-FI | |
Bluetooth | ||
I/O | USB/Mini-USB(OTG), Support USB Keyboard and Mouse | |
TF Memory Card Slot | ||
DC12V 2A Power | ||
Built-in Microphone | ||
On/Off Button | ||
HDMI Output | ||
Software | Operating System | Android 5.1 |
Banding Software | Build-in Microscopy Software | |
Build-in Camera Specification | |
Sensor Size | 1/2.5-inch (4:3), |
5.70mm(H) *4.28mm(V) | |
7.13mm(diagonal) | |
Active Pixels | 2592H*1944 |
Pixel Size | 2.2um *2.2um |
Captured Image Resolution | 4032*3024 (Max, by interpolation) |
Preview Frame Rate | 30fps @1024*768; 15fps@2048*1536/1600*1200 |
Video Resolution | 1024*768 |
Dynamic Range | 66.5dB |
SNR | 40.5dB |
A/D Converter | 12-bit, On-chip |
Sensitivity | 0.53V/lux-sec (550nm) |
Shutter | Electronic Rolling Shutter (ERS) |
White Balance | Auto/Manual |
Exposure Model | Auto/Manual |
Parameter Adjustment | Brightness/ Contrast/ Saturation/ Sharpness /Gamma Adjustment |
Flip and Mirror Functions | Rotate the Image Horizontally or Vertically |
