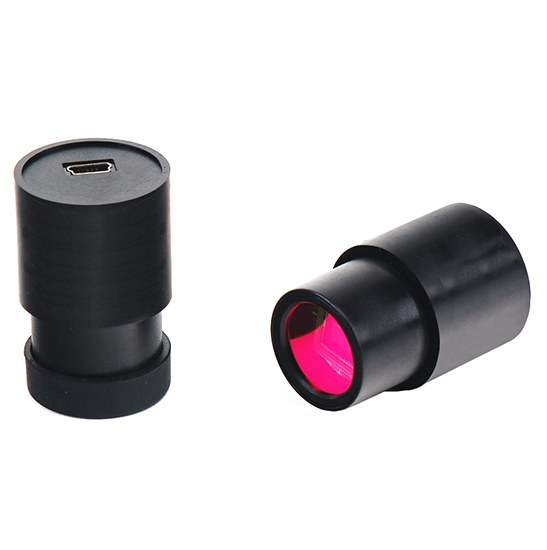

BestScope MDE2-510BC USB2.0 CMOS Eyepiece Microscope Camera (IMX335 Sensor, 5.1MP)
MDE2-510BC(With IMX335(C) Sensor) are economic version with simple and compact structure CMOS eyepiece cameras(digital eyepiece). USB2.0 is used as the data transfer interface.The MDE2 series come with high-speed USB2.0 interface and high frame rate video display, which keep the screen smooth without interruption;Also the MDE2 comes with advanced video & image processing application ImageView;The MDE2 can be widely used to transfer the monocular…
Model: MDE2-510BC | Sensor: 5.1M/IMX335(C) | Sensor Size(mm): 1/2.8“ (5.18x3.89) | Pixel(μm): 2.0x2.0 | FPS: 25@2592x1944 | Binning: 1x1 1x1 1x1 | Exposure: 0.1-2000 ms | USB Port: USB2.0 High-speed Port
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
MDE2-510BC USB2.0 CMOS Eyepiece Microscope Camera (IMX335 Sensor, 5.1MP)
MDE2-510BC(With IMX335(C) Sensor) are economic version with simple and compact structure CMOS eyepiece cameras(digital eyepiece). USB2.0 is used as the data transfer interface.The MDE2 series come with high-speed USB2.0 interface and high frame rate video display, which keep the screen smooth without interruption;Also the MDE2 comes with advanced video & image processing application ImageView;The MDE2 can be widely used to transfer the monocular or binocular student microscopes to digital microscope.With 23.2 to 30mm or 23.2 to 30.75 convert ring, the MDE2 camera can also change the stereo microscope to digital stereo microscope.
Key Details
| Model | MDE2-510BC |
| Sensor | 5.1M/IMX335(C) |
| Sensor Size(mm) | 1/2.8“ (5.18x3.89) |
| Pixel(μm) | 2.0x2.0 |
| FPS | 25@2592x1944 |
| Binning | 1x1 1x1 1x1 |
| Exposure | 0.1-2000 ms |
| USB Port | USB2.0 High-speed Port |
Features
1.Microscope eyepiece camera with 23.2 diameter and compact size;
2.Easy to extend to C or CS- Mount camera with high quality lens(optional);
3.High-quality camera with Aptina and CMOS sensor;
4.Auto white balance and auto-exposure; Brightness, contrast, chroma and saturation can be adjusted;
5.High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
6.With advanced video & image processing application ImageView;
7.Providing Windows/Linux/Mac OS multiple platforms SDK;
8.Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
Specification
Order Code | Sensor & Size(mm) | Pixel(μm) | G Responsivity Dynamic range SNRmax | FPS/Resolution | Binning | Exposure |
MDE2-1200C | 12M/IMX577(C) | 1.55×1.55 | 250LSB 70dB 43dB | 20@3840×3040 | 1×1 1×1 1×1 | 0.1-2000 ms |
MDE2-830C | 8.3M/IMX274(C) | 1.62×1.62 | 236mV 70dB 43dB | 30@3840×2160 | 1×1 1×1 1×1 | 0.1-2000 ms |
MDE2-510AC | 5.1M/AR0521(C) | 2.2×2.2 | 18.8ke-/lus 73dB 40dB | 30@2592×1944 | 1×1 1×1 1×1 | 0.1-1000 ms |
MDE2-510BC | 5.1M/IMX335(C) | 2.0×2.0 | 505mV 70dB 43dB | 25@2592×1944 | 1×1 1×1 1×1 | 0.1-2000 ms |
MDE2-310C | 3.1M/Aptina(C) | 2.8×2.8 | 18.8ke-/lus 73dB 40dB | 30@2048×1536 | 1×1 1×1 | 0.1-1000 ms |
MDE2-210C | 2.1M/IMX307(C) | 2.9×2.9 | 1300mV 73dB 43dB | 38@1920×1080 | 1×1 1×1 | 0.1-2000 ms |
MDE2-92BC | 0.92M/OV9732(C) | 3×3 | 2.066V/lux-sec 39dB | 30@1280×720 30@640×360 | 1×1 1×1 | 0.1ms~650ms |
MDE2-500C | 5.0M/Aptina(C) | 2.2×2.2 | NA | 2@2592×1944 | N/A | Auto |
MDE2-300C | 3.0M/Aptina(C) | 2.2×2.2 | NA | 3@2048×1536 | N/A | Auto |
MDE2-200C | 2.0M/Aptina(C) | 2.8×2.8 | NA | 5@1600×1200 22@640×480 | N/A | Auto |
MDE2-200BC | 2.0M/OV2710(C) 1/2.7”(5.76×3.24) | 3×3 | 3.3V/ Lux-sec 69dB 39dB | 25@1920×1080 30@1280×1024 30@1280×720 | N/A | Auto |
MDE2-130C | 1.3M/Aptina(C) | 3.6×3.6 | NA | 7.5@1280×1024 | N/A | Auto |
MDE2-92C | 0.92M/BG0703(C) 1/2.7” (5.80×3.28) | 4.5×4.5 | 5.8V/ Lux-sec 65dB 43dB | 25@1280×720 25@640×480 | N/A | Auto |
C: Color; M: Monochrome;
Other Specification for MDE2 Camera | |
Spectral Range | 380-650nm (with IR-cut Filter) |
White Balance | Auto White Balance |
Color Technique | N/A |
Capture/Control API | Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
Recording System | Still Picture and Movie |
Cooling System* | Natural |
Operating Environment | |
Operating Temperature(in Centidegree) | -10~ 50 |
Storage Temperature(in Centidegree) | -20~ 60 |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
Software Environment | |
Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More | |
USB Port: USB2.0 High-speed Port | |
Display: 17” or Larger | |
CD-ROM | |
Dimension
The MDE2’s body is made of aluminum alloy blackening, ocular housing: Dia.27.2 X 40mm ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT filter to filter the infrared light and protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other camera solutions.
Packing Information for MDE2
Packing Information of MDE2
Standard Camera Packing List | ||
A | Carton L:52cm W:32cm H:33cm (50pcs, 12~17Kg/ carton), not shown in the photo | |
B | Gift box L:14.5cm W:9.5cm H:6.0cm (0.15~0.16Kg/ box) | |
C | MDE2 series USB2.0 eyepiece camera | |
D | High-Speed USB2.0 A male to mini B 5-pin male gold-plated connectors cable /1.5m | |
E | CD (Driver & utilities software, Ø8cm) | |
Optional Accessory | ||
F | C-Mount Adapter Housing:108027(HS502) | |
G | 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube | |
H | 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube | |
I | 108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube | |
J | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); |
