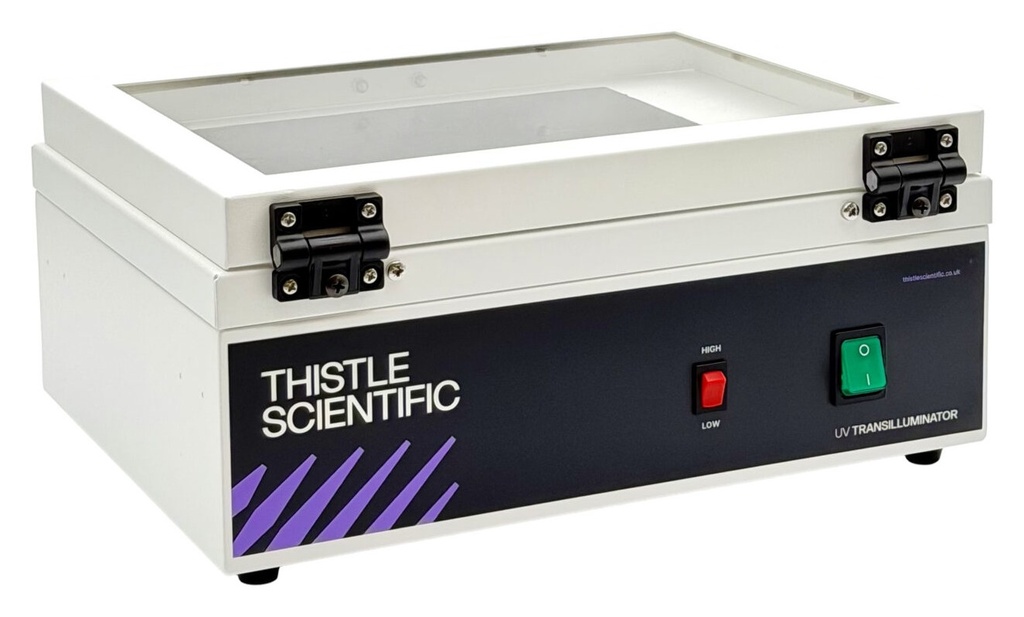

Standard UV Transilluminator
Standard UV Transilluminator for viewing and documenting fluorescently stained protein and nucleic acid gels.
- Viewing area 21 x 21 cm or 26 x 21 cm
- Wavelength options: 254 nm, 312 nm or 365 nm
- Six 8-Watt UV tubes, fast flicker-free start up
- High / Low intensity safety switch
- Long-life filter glass and high efficiency reflector
- Unit dimensions 34 x 29.5 x 10 cm
Available in 6 codes (CSLUVTS254 / 312 / 365 and the L large-format versions). Can be used standalone or with the MicroDOC gel documentation system.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Standard UV Transilluminator
Available in 21 x 21 cm and 26 x 21 cm viewing sizes, supplied either as a standalone unit or with the MicroDOC as part of a fully integrated gel documentation system. The large surface area makes it an ideal workstation for viewing and working with fluorescently stained protein and nucleic acid gels.
Standard features include a high/low intensity safety switch and an efficient starter that allows each of the six 8-Watt UV tubes to energise quickly without flickering, while special filter glass minimises unwanted background light — maximising contrast and sensitivity so even the faintest fluorescent gels can be viewed.
At a glance
- Three wavelength options for added flexibility and convenience: 254 / 312 / 365 nm
- Long life filter
- High efficiency reflector
- Hi/Lo intensity switch
- Fast start up
Specifications
| Viewing area | 21 x 21 cm (small) or 26 x 21 cm (large) |
| Wavelengths | 254 nm, 312 nm or 365 nm |
| UV tubes | Six 8-Watt UV tubes |
| Intensity | High / Low intensity safety switch |
| Filter | Long-life special filter glass, minimises background light |
| Reflector | High efficiency reflector |
| Starter | Fast start up, energises without flickering |
| Unit dimensions | 34 x 29.5 x 10 cm |
Ordering Information
| Code | Viewing area | Wavelength |
|---|---|---|
| CSLUVTS254 | 21 x 21 cm | 254 nm |
| CSLUVTS312 | 21 x 21 cm | 312 nm |
| CSLUVTS365 | 21 x 21 cm | 365 nm |
| CSLUVTS254L | 26 x 21 cm | 254 nm |
| CSLUVTS312L | 26 x 21 cm | 312 nm |
| CSLUVTS365L | 26 x 21 cm | 365 nm |
Wavelength guidance: 312 nm is recommended for standard gel documentation. 254 nm causes more DNA damage and suits other applications such as crosslinking; 254 nm bulbs may also be visible through the filter, making them unsuitable for gel documentation.
Specifications for Standard UV Transilluminator
| Manufacturer | Cleaver Scientific |
