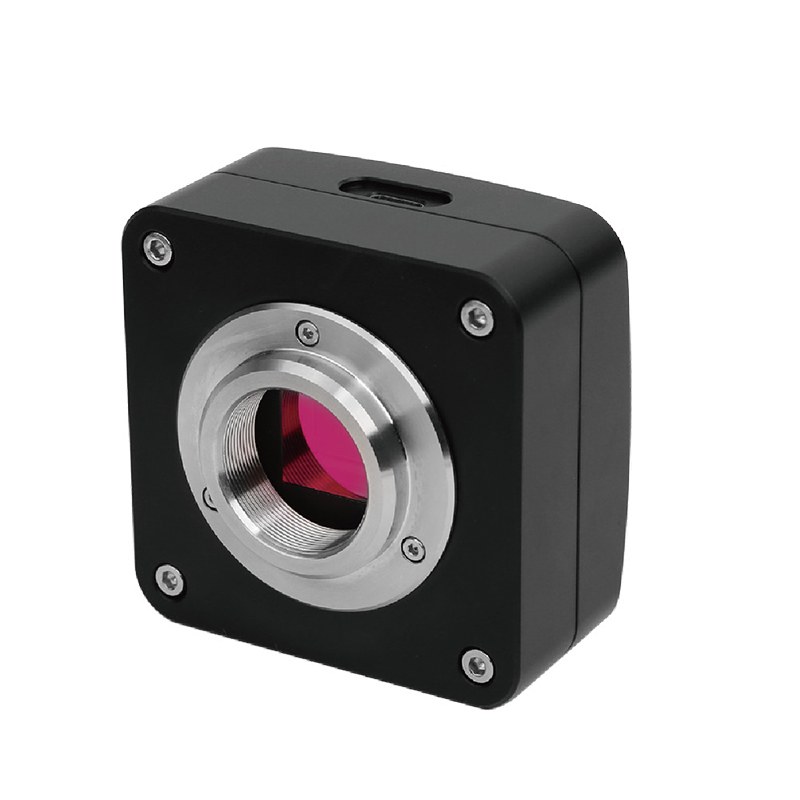

BestScope BUC5K-2000C USB3.2 Gen2 Digital Microscope Camera
IntroductionBUC5K-2000C is equipped with advanced USB3.2 Gen2 technology, delivering a 10 Gbps high-bandwidth interface that breaks through traditional transmission bottlenecks. They are designed for microscopy, industrial inspection, and scientific research applications. BUC5K-2000C adopts a USB Type-C connector with reversible plug orientation, ensuring both convenience and stability while supporting diverse device connectivity requirements.
Model: BUC5K-2000C | Sensor: 20MP IMX383 (C, RS) | Sensor Size(mm): 1/1.1" (13.13mmx8.75mm) | Pixel Size(μm): 3.3x3.3 | FPS: 12bit: 120fps@1824*1216 | Full Well: 18.042ke- | Dynamic Range: 72dB | USB Port: USB3.2 Gen2
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BUC5K-2000C USB3.2 Gen2 Digital Microscope Camera
IntroductionBUC5K-2000C is equipped with advanced USB3.2 Gen2 technology, delivering a 10 Gbps high-bandwidth interface that breaks through traditional transmission bottlenecks. They are designed for microscopy, industrial inspection, and scientific research applications. BUC5K-2000C adopts a USB Type-C connector with reversible plug orientation, ensuring both convenience and stability while supporting diverse device connectivity requirements.
Key Details
| Model | BUC5K-2000C |
| Sensor | 20MP IMX383 (C, RS) |
| Sensor Size(mm) | 1/1.1" (13.13mmx8.75mm) |
| Pixel Size(μm) | 3.3x3.3 |
| FPS | 12bit: 120fps@1824*1216 |
| Full Well | 18.042ke- |
| Dynamic Range | 72dB |
| USB Port | USB3.2 Gen2 |
Features
The basic characteristic of BUC5K-2000C USB3.2 Gen2 camera can be summarized as follows:
1. It is equipped with advanced USB3.2 Gen2 technology, delivering a 10 Gbps high-bandwidth interface that breaks through traditional transmission bottlenecks. The data transfer speed is 2–3 times faster than conventional USB3.0 cameras.
2. It adopts a USB Type-C connector with reversible plug orientation. It ensures both convenience and stability while supporting diverse device connectivity requirements.
Specification
Order Code | Sensor & Size(mm) | Pixel Size (μm) | ADC | FPS & Resolution |
BUC5K-2100C | 21MP IMX472 (C, RS) | 3.3×3.3 | 12bit | 8bit: 49fps@5280*3956 12bit: 25fps@5280*3956 8bit: 115fps@2640*1978 12bit: 55fps@2640*1978 8bit: 240fps@1760*1318 12bit: 117fps@1760*1318 |
BUC5K-2000C | 20MP IMX383 (C, RS) | 3.3×3.3 | 12bit | 8bit: 49fps@5472*3648 12bit: 24fps@5472*3648 8bit: 49fps@2736*1824 12bit: 24fps@2736*1824 8bit: 120fps@1824*1216 12bit: 120fps@1824*1216 |
BUC5K-830C | 8.3MP IMX585 (C, RS) | 2.9×2.9 | 10bit/12bit | 8bit: 88fps@3840*2160 12bit: 60fps@3840*2160 8bit: 60fps@1920*1080 12bit: 60fps@1920*1080 |
Order Code | Conversion Gain | Readout Noise | Full Well | Dynamic Range | SNR |
BUC5K-2100C | 6.017e-/ADU | 4.58e- | 24.600ke- | 72dB | 43.9dB |
BUC5K-2000C | 4.410e-/ADU | 3.48e- | 18.042ke- | 72dB | 42.6dB |
BUC5K-830C | 0.994e-/ADU (HCG) 9.582e-/ADU (LCG) | 1.07e- (HCG) 6.69e- (LCG) | 4.061ke- (HCG) 39.162ke- (LCG) | 71.6dB (HCG) 72.0dB (LCG) | 36.1dB (HCG) 45.9dB (LCG) |
Dimension
Specifications for BestScope BUC5K-2000C USB3.2 Gen2 Digital Microscope Camera
| Manufacturer | BestScope |
