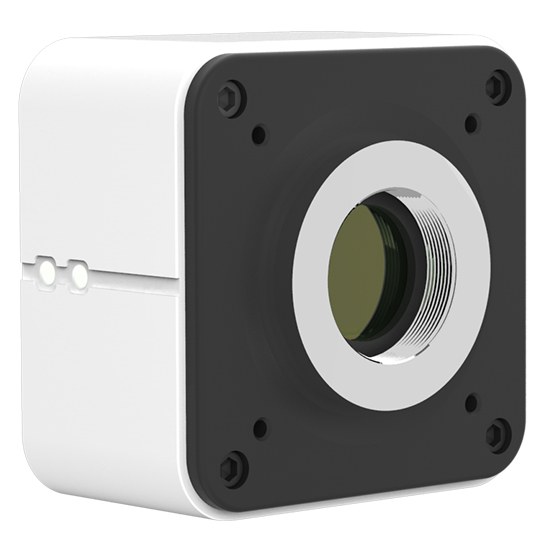

BestScope BUC5H-600C USB3.0 Digital Microscope Camera (IMX178LQJ-C Sensor, 6.0MP)
BUC5H-600C(With IMX178LQJ-C Sensor) USB3.0 digital cameras, the software has real-time image stitching & depth-of-field fusion function, BUC5H-500C has global shutter, BUC5H-2000C has 1-inch sensor. The BUC5H series cameras can be widely used with bright field, dark field, polarizing, fluorescent microscopes and normal microscope image capture and analysis with high frame rate.
Model: BUC5H-600C | Sensor Type: CMOS 1/1.8" Color | Pixel Size: 2.4x2.4(μm) | Resolution: 6MP | Frame Rate: 41fps(3072x2048) | Color Temperature: 2000-15000K | Data Interface: USB3.0 | Picture Format: JPG/PNG/TIFF
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BUC5H-600C USB3.0 Digital Microscope Camera (IMX178LQJ-C Sensor, 6.0MP)
BUC5H-600C(With IMX178LQJ-C Sensor) USB3.0 digital cameras, the software has real-time image stitching & depth-of-field fusion function, BUC5H-500C has global shutter, BUC5H-2000C has 1-inch sensor. The BUC5H series cameras can be widely used with bright field, dark field, polarizing, fluorescent microscopes and normal microscope image capture and analysis with high frame rate.
Key Details
| Model | BUC5H-600C |
| Sensor Type | CMOS 1/1.8" Color |
| Pixel Size | 2.4x2.4(μm) |
| Resolution | 6MP |
| Frame Rate | 41fps(3072x2048) |
| Color Temperature | 2000-15000K |
| Data Interface | USB3.0 |
| Picture Format | JPG/PNG/TIFF |
Specification
Model | BUC5H-500C | BUC5H-600C | BUC5H-1600C | BUC5H-2000C |
Shutter Mode | Global | Rolling | Rolling | Rolling |
Sensor Model | IMX264LQR-C | IMX178LQJ-C | IMX206CQC | IMX183CQJ-J |
Sensor Type | CMOS 2/3″ Color | CMOS 1/1.8″ Color | CMOS 1/2.3″ Color | CMOS 1″ Color |
Pixel Size | 3.45×3.45(μm) | 2.4×2.4(μm) | 1.34×1.34(μm) | 2.4×2.4(μm) |
Resolution | 2448(H)x2048(V) | 3072(H)x2048(V) | 4608(H)x3456(V) | 5472(H)x3648(V) |
Frame Rate | 35fps(2448×2048) 88fps(1224×1024) | 41fps(3072×2048) | 12fps(4608×3456) 15fps(4608×2736) 19fps(3648×2736) | 15fps(5472×3648) 53fps(2736×1824) 67fps(1824×1216) |
Color Temperature | 2000-15000K | |||
Picture Format | JPG/PNG/TIFF | |||
Interface | Data Interface: USB3.0, Optical Interface: Standard C-Mount | |||
Multiple Cameras | Supports 4 Cameras Simultaneously in SDK | |||
PC Software | Capture V2.0 | |||
Operating System | Windows is supported and Linux/Mac is under development | |||
PC Configuration | CPU: Intel Core i5 or better(Quad or more Core); RAM: 8G or more, OS: Windows 7/8/10 64bit | |||
Size & Weight | Size: 68x68x47mm Weight: 327g | |||
Specifications for BestScope BUC5H-600C USB3.0 Digital Microscope Camera (IMX178LQJ-C Sensor, 6.0MP)
| Manufacturer | BestScope |
