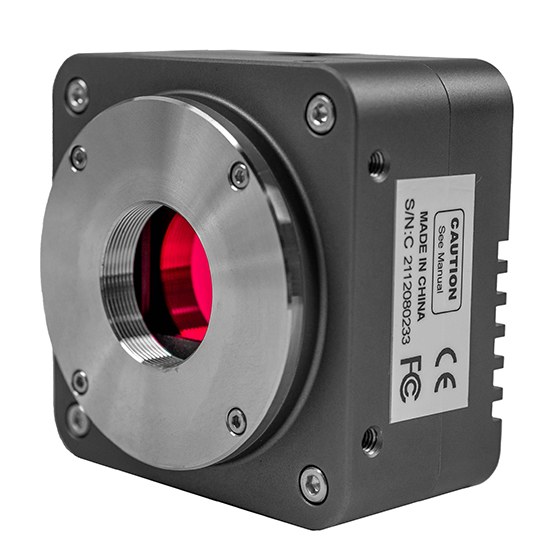

BestScope BUC5D-300C USB3.0 CMOS Digital Microscope Camera (AR0330 Sensor, 3.1MP)
BUC5D-300C(With AR0330(C) Sensor) cameras are ultra-high performance USB3.0 CMOS cameras and they adopt ultra-high performance CMOS sensor as the image capture device and USB3.0 is used as the data transfer interface.BUC5D hardware resolutions range from 3.0M to 18M and come with the integrated zinc aluminum alloy compact housing.BUC5D comes with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple…
Model: BUC5D-300C | Sensor: 3.1M/AR0330(C) | Sensor Size(mm): 1/3“ (4.51x3.38) | Pixel(μm): 2.2x2.2 | FPS: 27.3@2048x1534 | Binning: 1x1, 2x2 | Exposure: 0.1ms~2000ms | USB Port: USB3.0 High-speed Port
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BUC5D-300C USB3.0 CMOS Digital Microscope Camera (AR0330 Sensor, 3.1MP)
BUC5D-300C(With AR0330(C) Sensor) cameras are ultra-high performance USB3.0 CMOS cameras and they adopt ultra-high performance CMOS sensor as the image capture device and USB3.0 is used as the data transfer interface.BUC5D hardware resolutions range from 3.0M to 18M and come with the integrated zinc aluminum alloy compact housing.BUC5D comes with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API.The BUC5D can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
Key Details
| Model | BUC5D-300C |
| Sensor | 3.1M/AR0330(C) |
| Sensor Size(mm) | 1/3“ (4.51x3.38) |
| Pixel(μm) | 2.2x2.2 |
| FPS | 27.3@2048x1534 |
| Binning | 1x1, 2x2 |
| Exposure | 0.1ms~2000ms |
| USB Port | USB3.0 High-speed Port |
Features
- Standard C-Mount camera with Aptina CMOS sensor;
- With hardware resolution from3.0MPto 18MP;
- Integrated zinc aluminum alloy housing;
- USB3.0 5 Gbps interface ensuring high frame rate;
- With advanced video & image processing application ImageView;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
Specification
Order Code | Sensor & Size | Pixel(μm) | G Responsivity Dynamic range SNRmax | FPS/Resolution | Binning | Exposure |
BUC5D-1800C | 18M/AR1820(C) | 1.25×1.25 | 0.62 V/lux-sec 36.3dB | 5.6@4912×3684 | 1×1,2×2,4×4 | 0.1ms~2000ms |
BUC5D-1600C | 16M/MN34120(C) | 1.335×1.335 | R: 2453LSB Gr: 2444LSB Gb: 1054LSB B: 996LSB | 6.0@4632×3488 | 1×1, 2×2,3×3 | 0.2ms~2000ms |
BUC5D-1601C | 16M/MN34230PLJ (C) | 3.8×3.8 | R: 1315LSB Gr: 2413LSB Gb: 2413LSB B: 1042LSB (Gain = 0dB) | 6.0@4648×3506 | 1×1,2×2,3×3 | 0.06ms~15s |
BUC5D-1601M | 16M/MN34230ALJ(M) | 3.8×3.8 | A: 2650LSB B: 2650LSB C: 2650LSB D: 2650LSB (Gain = 0dB) | 22@4640×3506 36@3840×2160 43@2304×1750 43@1920×1080 49@1536×1168 | 1×1, | 0.224ms~15s |
BUC5D-1400C | 14M/MT9F002(C) | 1.4×1.4 | 0.724v/lux-sec 65.3dB 35.5dB | 6.2@4096×3286 | 1×1,2×2,4×4 | 0.224ms~2000ms |
BUC5D–1000C | 10M/MT9J003(C) | 1.67×1.67 | 0.31v/lux-sec 65.2dB 34dB | 7.2@3584×2746 | 1×1,2×2,4×4 | 0.4ms~2000ms |
BUC5D–850C | 8.5M/Special(C) | 1.67×1.67 | 0.31v/lux-sec 65.2dB 34dB | 8.3@3328×2548 | 1×1,2×2,4×4 | 0.1ms~2000ms |
BUC5D–500C | 5.1M/MT9P006(C) | 2.2×2.2 | 1.76v/lux-sec 67.74dB 38.5dB | 14.2@2560×1922 | 1×1,2×2,4×4 | 0.1ms~2000ms |
BUC5D-300C | 3.1M/AR0330(C) | 2.2×2.2 | 1.9v/lux-sec 100dB 39dB | 27.3@2048×1534 | 1×1, 2×2 | 0.1ms~2000ms |
C: Color; M: Monochrome
Other Specification for BUC5D Camera | |
Spectral Range | 380-650nm (with IR-cut Filter) |
White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
Color Technique | Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
Capture/Control API | Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
Recording System | Still Picture and Movie |
Cooling System | Natural |
Operating Environment | |
Operating Temperature(in Centigrade) | -10~ 50 |
Storage Temperature(in Centigrade) | -20~ 60 |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
Software Environment | |
Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory:2GB or More | |
USB Port:USB3.0 High-speed Port | |
Display:17” or Larger | |
CD-ROM | |
Dimension of BUC5D
The BUC5D series body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Packing Information for BUC5D
Standard Camera Packing List | ||
A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | |
B | Gift box L:15cm W:15cm H:10cm (0.67~0.7Kg/ box) | |
C | BUC5D series USB3.0 C-mount CMOS camera | |
D | High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m | |
E | CD (Driver & utilities software, Ø12cm) | |
Optional Accessory | ||
F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube |
C-mount to Dia.31.75mm eyepiece tube | ||
G | Fixed lens adaptor | C-mount to Dia.23.2mm eyepiece tube |
C-Mount to Dia.31.75mm Eyepiece Tube | ||
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application. | ||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | |
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | |
J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | |
K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); |
