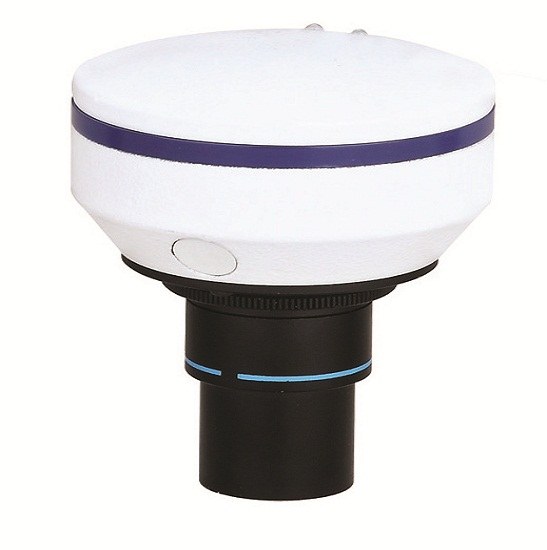

BestScope BUC2-320C Microscope Digital Cameras(CMOS Sensor)
BUC2-320C(With CMOS Sensor) digital cameras are mainly designed for microscopes to capture microscope images, videos and display real-time live video on your PC screen. Each package comes with a high-resolution digital camera, a reduction lens, a user-friendly software and a 30mm adapter. 30.5mm adapter is optional.
Model: BUC2-320C | Image Sensor: 1/2 inch 3.2MP CMOS Sensor | Active pixels: 2048×1536 | Pixel size: 3.2μm × 3.2μm | Frame rate: 9fps@ 2048×1536 | Dynamic range: 61dB | SNR: 43dB | Image Output: USB2.0, 480Mb/s
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BUC2-320C Microscope Digital Cameras(CMOS Sensor)
BUC2-320C(With CMOS Sensor) digital cameras are mainly designed for microscopes to capture microscope images, videos and display real-time live video on your PC screen. Each package comes with a high-resolution digital camera, a reduction lens, a user-friendly software and a 30mm adapter. 30.5mm adapter is optional.
Key Details
| Model | BUC2-320C |
| Image Sensor | 1/2 inch 3.2MP CMOS Sensor |
| Active pixels | 2048×1536 |
| Pixel size | 3.2μm × 3.2μm |
| Frame rate | 9fps@ 2048×1536 |
| Dynamic range | 61dB |
| SNR | 43dB |
| Image Output | USB2.0, 480Mb/s |
Feature
- With high resolution sensor, providing high quality image and widely used in academic and medical field for high precision and resolution image capturing and processing;
- Very convenient to Use, just insert it into Eyepiece Tube or Top Tube of Trinocular Head;
- Getting Real-time and Non-compressing Video Data and Capturing Image Directly;
- Easy and fast software installation;
- User-friendly image processing software with measurement function;
- Multi-Language software (Chinese, English, Germen, French, Japanese, Polish, Arabic);
- Compatible with Windows 2000/ XP/ Vista/Win7/Win 8/Win 10/Mac.
Packing Contents
The BUC2 series camera packaging box includes:
- The BUC2 Camera device with USB2.0 cable;
- 30mm connecting ring(Optional: 30.5mm connecting ring);
- 0.45×microscope adapter(23mm);
- CD: Include driver, “ScopeImage 9.0” software and User manual.
Optional (choose to buy): 0.01mm(for biological and other high power microscopes) or 0.1mm(for stereo and other low power microscopes) Calibration Slide(Stage Micrometer).
Specification
Model | BUC2-130C | BUC2-320C | BUC2-500C |
Image Sensor | 1/3 inch 1.3MP CMOS Sensor | 1/2 inch 3.2MP CMOS Sensor | 1/2 inch 5.0MP CMOS Sensor |
Active pixels | 1280×1024 | 2048×1536 | 2592×1944 |
Pixel size | 5.2μm×5.2μm | 3.2μm × 3.2μm | 2.2μm×2.2μm |
Frame rate | 15fps@1280×1024 | 9fps@ 2048×1536 | 6fps@2592×1944 |
Sensitivity | >1.0 V/lux-sec (550nm) | >1.0V/lux-sec (550nm) | >0.53V/lux-sec (550nm) |
Dynamic range | 61dB | ||
SNR | 43dB | ||
Shutter type | Electronic rolling shutter | ||
Operating Temperature | 0°C ~ 60°C | ||
Image Output | USB2.0, 480Mb/s | ||
Software | ScopeImage 9.0 | ||
Operating System | Windows 2000/ XP/ Vista/Win7/Win 8/Mac | ||
Specifications for BestScope BUC2-320C Microscope Digital Cameras(CMOS Sensor)
| Manufacturer | BestScope |
