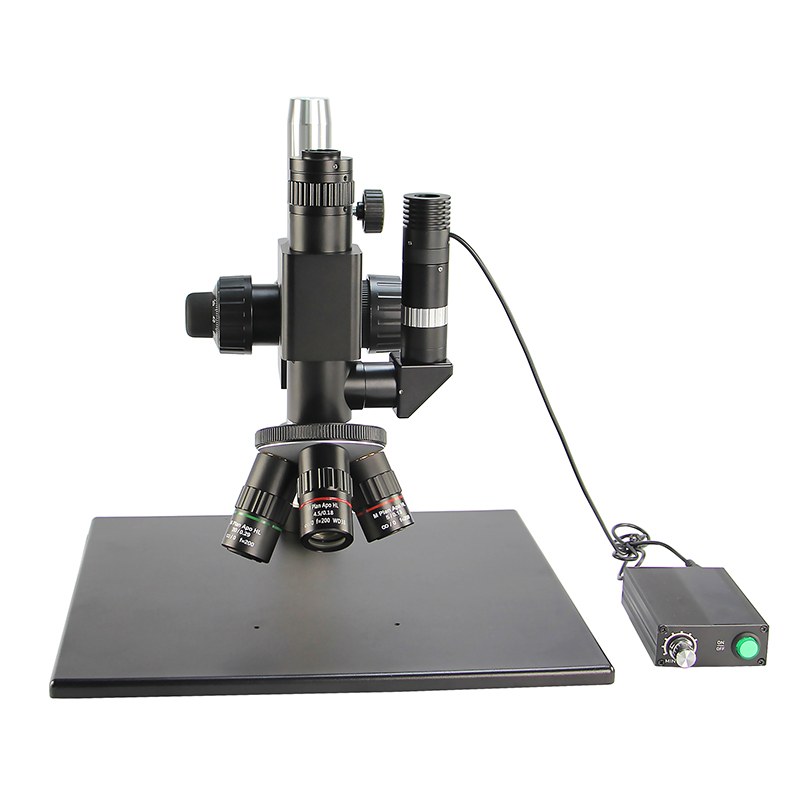

BestScope BTL200AMM Video Metallurgical Microscope

Manufacturer

1.00 E£ 1.00 E£ 1.0 EGP

1.00 E£

This combination does not exist.

BTL200AMM Video Metallurgical Microscope adopts apochromatic optical system, supporting max sensor size of 1 inch. There are variety of accessories for option, including coaxial device, stand and focus arm, objectives, illuminators, etc.
Model: BTL200AMM | Objectives: 2X, 4.5X, 20X | Nosepiece: Quadruple | Focal Length: F”=200mm | Illumination: Coaxial light and Point Light | Camera: BWHC4-4KAF8MPA(4K, 8.0MP)

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

BTL200AMM Video Metallurgical Microscope

Key Details

Model	BTL200AMM
Objectives	2X, 4.5X, 20X
Nosepiece	Quadruple
Focal Length	F”=200mm
Illumination	Coaxial light and Point Light
Camera	BWHC4-4KAF8MPA(4K, 8.0MP)

Features

1.There are linear coaxial device and L-type coaxial device.

L-type coaxial device with iris adjustable, adjustment range: φ0.5-φ12.

Coaxial illuminator can be used with LED point light or optical fiber.

2.It can be equipped with long working distance plan APO objective for better observation.

Specification

Item	Specification	BTL200AMM
Optical System	Apochromatic optical system	●
Magnification	1X	●
Thread Size of Objective	M26*0.706	●
Focal Length	F”=200mm	●
Nosepiece	Quadruple nosepiece, 26mm thread	●
Camera	BWHC4-4KAF8MPA Camera: HDMI/NETWORK/USB Multi Output C-mount CMOS Camera (4K, 8.0MP)	●
Infinite LWD Plan Achromatic Metallurgical Objective (MA200A)	2.5X/ NA=0.07, WD=11mm	○
	5X/ NA=0.12, WD=26.1mm	○
	10X/ NA=0.25, WD=20.2mm	○
	20X/ NA=0.4, WD=8.8mm	○
	40X/ NA=0.6, WD=3.98mm	○
	50X/ NA=0.7, WD=3.68mm	○
	60X/ NA=0.75, WD=1.22mm	○
	60X/ NA=0.75, WD=3.18mm	○
	80X/ NA=0.8, WD=1.25mm	○
	100X/ NA=0.85, WD=0.4mm	○
Infinite LWD Plan Apochromatic Objectives (LWD M APO200A)	2X/ NA=0.055, WD=34.6mm	○
	3.5X/ NA=0.1, WD=40.93mm	○
	5X/ NA=0.13, WD=44.5mm	○
	10X/ NA=0.28, WD=34mm	○
	20X/ NA=0.29, WD=31mm	○
	50X/ NA=0.42, WD=20.1mm	○
Infinite LWD Plan Apochromatic Objectives (LWD M APO200B)	2X/ NA=0.075, WD=50mm	●
	4X/ NA=0.15, WD=36mm	○
	4.5X/ NA=0.18, WD=38mm	●
	20X/ NA=0.35, WD=29mm	●
Coaxial light Device	Coaxial device, does not include light source	○
Coaxial light Device	L-Type Coaxial Device with iris diaphragm, light input port Φ11mm, does not include light source	●
Ring Light	BAL-80A LED Ring light, brightness adjustable	○
	BAL-52AP LED polarizing ring light, brightness adjustable	○
	BAL-52ASL LED side ring light, brightness adjustable	○
	BAL-228A Four-zone lighting control separately big area LED ring light	○
	BAL-228AG LED four-zone ring light with frosted glass	○
	BAL-16P LED polarizing ring light, brightness adjustable	○
	BAL-52A LED Ring light, brightness adjustable	○
Back Light	BTL-60A LED back light	○
Point Light	BPL-3A LED point light, 3W, brightness adjustable.	●
	BPL-3MC LED multi color point light, 3W, white, purple, blue, yellow, red, green and mixed light, brightness adjustable	○
	BPL-4A LED point light with numerically adjustable light adapter, 4W, brightness adjustable	○
Bar Light	BBL-5A bar LED illuminator, 60 LED, 12V/5W	○
Cold Light Source	BSL-3B LED light source with dual goose neck light guide, 6.5W	○
	BSL-15A-2 Cold LED light source with Dual Light Guide, 15W LED lamp	○
	BSL2-150A-2 Cold light source with Dual Light Guide, 21V/150W Halogen lamp	○
Stage	BMS-302 X-Y moving stage	○
	BMS-303 X-Y moving stage	○
	BMS-311 X-Y measuring stage	○
	BMS-316A X-Y measuring stage	○
	BMS-316B X-Y measuring stage	○
	BMS-400A large working stage	○
	BMS-260A XY working stage	○
Stand and focus Arm	BA1 Round type column plain stand with coarse focus arm. Stroke: 50mm.	○
	BA2 Round type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 50mm.	○
	BA3 Round type column plain stand with coarse and fine focus arm. Stroke: 67mm, fine precision: 0.002mm.	●
	BA4 Round type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 67mm, fine precision: 0.002mm.	○
	BA5 Square type column plain stand with coarse focus arm. Stroke: 150mm.	○
	BA6 Square type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 150mm.	○
	BA7 Square type column plain stand with coarse and fine focus arm. Stroke: 260mm, fine precision: 0.002mm.	○
	BA8 Square type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 260mm, fine precision: 0.002mm.	○
	BA9 multi-angle column plain stand with coarse focus arm. Stroke: 60mm.	○
	BA10 multi-angle column plain stand with coarse and fine focus arm. Stroke: 60mm, fine precision: 0.002mm.	○
	BA11 universal boom stand with coarse focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 50mm.	○
	BA12 universal boom stand with coarse focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 65mm, fine precision: 0.002mm.	○
	BA13 Round type column large plain stand with coarse focus arm. Column height: 320mm, Φ25mm, stroke: 50mm, base size: 380mm*260mm. Gross weight: 1.5kg.	○
	BFA-1 coarse focus arm. Stroke: 50mm.	○
	BFA-2 coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm.	○
	BFA-3 multi-angle coarse focus arm, angle adjustable. Stroke: 50mm.	○
	BFA-4 multi-angle coarse and fine focus arm, angle adjustable. Stroke: 60mm, fine precision: 0.002mm.	○
	BFA-5 electric coarse and fine focus arm, supporting manual focusing and electric focusing. It has 5 preset positions, paired with 5 different magnification objectives. Stroke: 65mm, fine precision: 0.005mm.	○
	BFA-6 N interface coarse focus arm. Stroke: 50mm.	○
	BFA-7 N interface coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm.	○

Note: ●Standard Outfit, ○Optional
