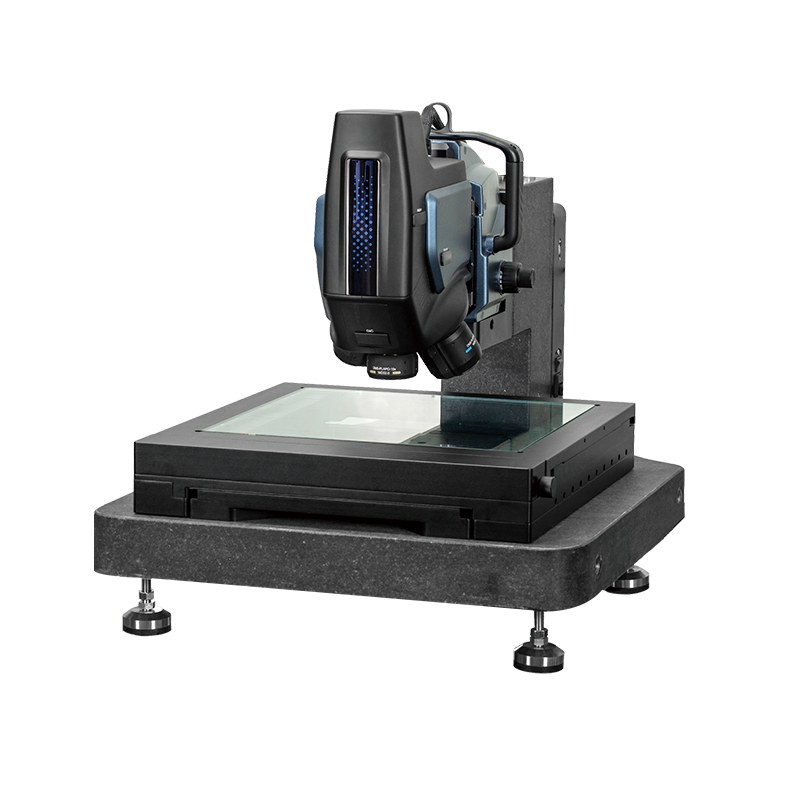

BSDM-500B 3D Super-Depth Digital Microscope

IntroductionBSDM Series 3D Super-Depth Digital Microscopes provide you 3D/Super-depth imaging, efficient and precise observation, unveiling a whole new dimension of the microscopic world for you. BSDM Series 3D Super-Depth Digital Microscopes have various observation modes, rich measurement functions, excellent image processing and convenient operational experience.

Key Details

Feature

1.Automatic frame hovering and angle control

Utilizing clutch control technology, the frame achieves automatic hovering at any angle upon releasing the button. The frame supports a rotation angle range from -90° to 90°, enabling panoramic observation without tilting the sample. Built-in high-precision angle sensors ensure precise and reliable rotation angles.

2.Integrated controller operation

The controller contains various shortcut keys, enabling efficient and quick control of the microscope body and software.

Supported functions include: navigation, magnification switching, illumination mode selection, platform electric movement, automatic focusing, real-time depth synthesis, 2D/3D image stitching, glare elimination, high dynamic range (HDR) imaging, shake correction, photography, and data saving, etc.

Fast auto focus

The auto focus is fast, accurate and clear, with details fully displayed.

Automatic magnification switching

It can achieve rapid switching from low magnification to high magnification.

7500X

2500X

500X

100X

20X

Motorized stage

There are 2 modes of stage movement, providing fast and smooth operation experience.

In rotation priority mode, the stage has a small movement range but can achieve ±90 ° rotation angles. It is equipped with built-in angle sensors so that even when rotating, the platform can still move in the direction seen in the image.

In travel priority mode, the stage movement range expands larger to meet the observation needs of larger samples.

Illumination modes switching

It integrates multiple lighting and observation modes, flexibly adapting to the requirements of various samples.

Ring light

Coaxial illumination

3.Transmitted illumination system

Equipped with LED cold light source as transmitted illumination to observe transparent samples. It can prevent sample damage from heat and extend the lifespan of the equipment.

4.Professional APO telecentric objectives

The professional APO telecentric objectives with low-aberration optical design can accurately capture the true image of the samples, achieving full-field high-precision measurement. It supports rapid switching from 20X to 7500X with one-click operation, meeting various observation needs.

     Normal objective                        Telecentric objective

5.Wide observation range

With an extremely wide observation range, a large sample can be totally captured in a single photo.

6.One-click imaging

Through multi-angle illumination and algorithmic fitting, the detailed changes of the sample can be presented with one click. Even the tiny bumps and convexities can be clearly seen. With the professional telecentric APO high-resolution objectives, ultra-high resolution can be achieved.

Normal

Reflection transformation

7.Image processing

Real-time depth-of-field fusion

Combined with optics and algorithms, the fusion of depth-of-field can be achieved instantly when moving the stage, presenting clearer images.

Real-time continuous focusing

Even for samples with concave and convex surfaces, ultra-high-speed real-time continuous focusing can be achieved.

Anti-ring refections

This function can prevent excessive reflection in some images caused by ring light and the lack of detail resulting from reflection. Click the button, and the annular reflection on the surface of the sample disappears, presenting a clear image free from reflective interference.

HDR function

When capturing samples with significant differences in light and dark, the HDR function can precisely reconstruct parts with relatively limited color gradation, achieving high-precision and high-contrast image.

Map navigation system

With the navigation system, you can quickly and accurately locate the area you want to observe at any magnification, and it can be used in combination with the rotation of the stage or the switching of the light source. Just follow these steps and you can instantly complete real-time navigation synthesis:

The XY direction movement of the stage – The stage automatically moves to the clicked position on the navigation screen.

Moving the objective in the Z direction – obtain the data of the depth part required for full-frame focusing.

Deep synthesis – Generate full-frame focused images.

Image Stitching

Seamlessly stitch multiple images to create a perfect visual experience. Click the image stitching button to automatically stitch the image. The stitched image can be used as a navigation map, with a maximum image stitching size of 100,000*100,000 pixels.

3D image stitching

It can move the stage and take pictures while obtaining 3D data, achieving large-scale 3D image stitching.

Saving and reporting

Powerful scene reproduction feature enables you to accurately reproduce the shooting conditions of the images. The reporting function helps you easily generate professional and accurate reports. No need for manual data organization and formatting, just click to generate complete report content. The auto-generate report function supports custom templates and styles, meeting your various needs.

8.Measurement function

It offers a variety of measurement and analysis functions, including 2D measurement, 3D measurement, etc. By integrating self-developed intelligent measurement technology with edge recognition algorithms, human errors can be avoided. The unique cross-field measurement can quickly complete the three-axis dimension measurement without splicing, significantly saving time. In addition, professional solutions such as automatic counting, counter measurement, particle analysis and roughness measurement are also provided to fully meet the needs of users.

2D measurement

Provides diverse measurement functions such as point-to-point, point-to-line, parallel lines, angles, and areas, supports exporting data to Excel. Users can also customize settings (font size, line color, unit display) for an optimized measurement experience. It can create and save measurement parameters that you frequently use for quick and accurate repetitive application.

3D measurement

Easily calculate the volume, surface area, and height of objects. It also supports multiple contour measurement tools, one-click correction of the tilt model, and quick and accurate measurement of the height contour information of objects. Precisely measure and analyze the shape of three-dimensional reconstructed objects.

Cross-field rapid measurement

When observing at high magnification, traditional methods require extensive dimensional measurements on stitched images, which not only consume time but also inaccuracies due to stitching errors.

BSDM-500 offers a solution for large-scale dimensional measurements, eliminating the cumbersome steps of conventional methods. Users can easily specify two points across the field of view, enabling quick and accurate measurement of the distance between these two points.

Intelligent planar measurement

In order to solve the measurement errors caused by traditional manual selection of measurement points, the BSDM-500 integrates advanced edge grayscale recognition. Users only need to select the area to be measured, and the software automatically identifies feature positions and measures feature geometry information. This not only ensures measurement consistency between different operators but also avoids errors caused by manual operations, thus improving measurement accuracy and efficiency.

Particle counting and analysis

Combining intelligent algorithms with grayscale recognition technology, automatically separate overlapping objects, and quickly count the particle area and quantity in the target area.

Specification

Note: ● Standard Outfit, ○ Optional

Software Function

Accessories

1.BSDM-300

BSDM-300 is a basic model, conveniently completing observation, high-definition shooting and precise measurement. It features an extremely large depth of field, capable of achieving several times the depth of field of traditional microscopes. It can be observed from multiple angles without any blind spots. All functions are integrated. All observation and measurement software are standard configurations.

There are low-magnification zoom lens and universal zoom lens, equipped with different magnifications and illumination methods. Featuring a simultaneous focus design, it easily enables clear and precise observation of various samples from macroscopic to microscopic levels.

Low-magnification zoom lens

Universal zoom lens

2.BSDM-400

BSDM-400 is a standard model. The main body is lightweight and portable, and it offers a diverse range of objective lens, to observe various samples with ease. Combining high frame rate imaging technology, it brings you a smooth and realistic dynamic observation experience.

Traditional microscope

400X BSDM-400

Metallographic imaging module

Combined with depth compositing and focus tracking functions, it can achieve full-frame focusing on any part while maintaining high definition.

Bright & dark field semi-apochromatic metallurgical objectives

Equipped with bright and dark field semi-apochromatic metallurgical objectives, it supports multiple observation methods such as bright and dark field, DIC, achieving unprecedented clarity.

3.BSDM-500

BSDM-500 is a flagship model, equipped with a 4K CMOS sensor and a brand-new optical system, to successfully achieve a greater depth of field and high resolution, with performance far exceeding that of traditional microscopes. It integrates multiple observation modes such as bright field, dark field, polarizing and DIC to meet various observation samples.

High-resolution zoom lens

20X-7500X automatic zoom lens. Continuous observation from 20X to 7500X can be achieved without changing the lens. The magnification can be switched smoothly and quickly via the mouse or controller.

Plan APO objectives

The objectives are specially designed for high-resolution image systems, simultaneously achieving 4K high-resolution and a large depth of field. The self-designed telecentric optical path can minimize perspective errors to the greatest extent and ensure accurate measurement.

Sample Images

300X Insect

20X Algal mass

80X Screw – 3D stitching

80X Needle – Depth fusion

200X Screw – 3D reconstruction

500X Car paint layer slice

80X Circuit board – 3D measurement

80X Circuit board – 3D stitching

20X & 100X Handwriting indentation – Document inspection

500X Camera slicing

1000X Camera weld pack point

300X Mold observation

150X Chips and gold wires

1000X Chip observation

500X Depth of grooves on the glass substrate

400X Contact observation

200X Metal bead – 3D Measurement
