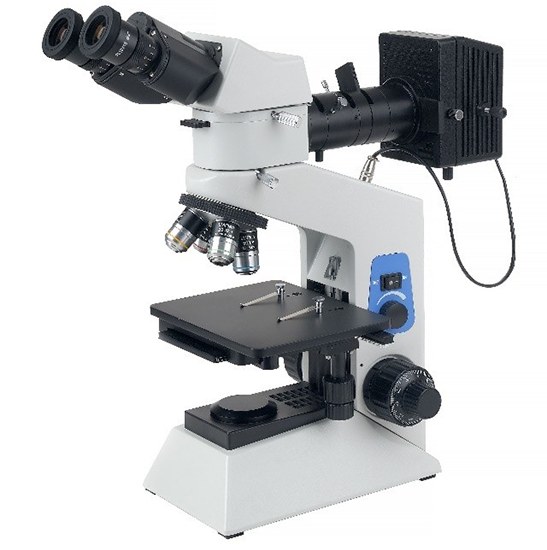

BS-6006BTR Binocular Metallurgical Microscope
IntroductionBS-6006 series metallurgical microscopes are basic level professional metallurgical microscopes which are specially designed for metallurgical analysis and industrial inspections. With excellent optical system, ingenious stand and convenient operation, they can be widely used in industrial areas for PCB board, LCD display, metal structure observation and inspection. They also can be used in colleagues and universities for metallography education and research.
Key Details
| Model | BS-6006BR |
| Magnification | 50×-500× |
| Eyepiece | WF10× |
| Objective | 5×,10×,20×,50× |
| Nosepiece | Quadruple |
| Illumination | 6V 30W |
| Viewing Head | Binocular |
| Focusing | Coaxial Coarse & Fine Focusing Knob |
Features
- Color corrected finite optical system, high image quality and resolution.
- PL10X/18mm eyepiece can be mounted with micrometer.
- Long working distance plan achromatic metallurgical objectives can provide very nice images.
- Reflected Koehler illumination with anti-reflection structure, makes the images clear and better contrast.
- Wide range input voltage 90-240V, 6V/30W halogen lamp, center of the filament can be adjusted. Brightness can be adjusted.
- Double layer mechanical stage, low position coaxial focusing system, 180X145mm stage plate, large samples can be placed on the stage.
- Yellow, green, blue, white filters and polarizing attachment are available.
Application
BS-6006 series metallurgical microscopes are widely used in institutes and laboratories to observe and identify the structure of various metal and alloy, they also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings and other non-metallic materials and so on.
Specification
Item | Specification | BS-6006BR | BS-6006BTR | BS-6006TR | BS-6006TTR | |
Optical System | Finite optical system | ● | ● | ● | ● | |
Viewing Head | 30° inclined gemel binocular head, 360° rotatable, diopter adjustable | ● | ● | |||
30° inclined gemel trinocular head, 360° rotatable, interpupillary distance 50-75mm, visual adjustment: ±5 diopter, splitting ratio: binocular: trinocular=80:20 | ● | ● | ||||
Eyepiece | High eyepoint wide field eyepiece WF10X/18mm | ● | ● | ● | ● | |
High eyepoint wide field eyepiece WF10X/18mm, with micrometer | ○ | ○ | ○ | ○ | ||
High eyepoint wide field eyepiece WF15X/13mm | ○ | ○ | ○ | ○ | ||
High eyepoint wide field eyepiece WF15X/13mm, with micrometer | ○ | ○ | ○ | ○ | ||
High eyepoint wide field eyepiece WF20X/10mm | ○ | ○ | ○ | ○ | ||
Objectives | Finite Long Working Distance Plan Achromatic Metallurgical Objectives | 5X/NA=0.13, WD=15.50mm | ● | ● | ● | ● |
10X/NA=0.25, WD=8.70mm | ● | ● | ● | ● | ||
20X/NA=0.40, WD=8.80mm | ● | ● | ● | ● | ||
50X/NA=0.60, WD=5.10mm | ● | ● | ● | ● | ||
100X/NA=0.8, WD=2.00mm | ○ | ○ | ○ | ○ | ||
Nosepiece | Inward quadruple nosepiece | ● | ● | ● | ● | |
Inward quintuple nosepiece | ○ | ○ | ○ | ○ | ||
Stage | Double-layer mechanical stage, stage size: 140mm*132mm, with a 180mm*145mm flat platform and a 102mm*102mm glass stage plate, for large samples), moving range: 76mm*50mm, precision: 0.1mm. | ● | ● | ● | ● | |
Focusing System | Low position coarse and fine coaxial focusing system, fine precision: 0.002mm, with tension adjustment and upper limited. | ● | ● | ● | ● | |
Illumination | Reflected frame with built-in 5W LED reflected illumination | ○ | ○ | |||
Reflected frame with built-in 6V 30W halogen reflected and transmitted illumination | ● | ● | ||||
Reflected and transmitted frame with built-in 5W LED reflected and transmitted illumination | ○ | ○ | ||||
Reflected and transmitted frame with built-in 6V 30W halogen reflected and transmitted illumination | ● | ● | ||||
Stage Plate | Epi-illumination, 100V-240V wide voltage, adjustable filament center, brightness adjustable, with variable aperture, variable field of view aperture, aperture adjustable | ● | ● | ● | ● | |
Halogen lamp 6V 30W | ● | ● | ● | ● | ||
Condenser | Condenser, NA 1.25, with interface for phase contrast and dark field plug-in plates, center pre-set, lifting with gears. (fixed Koehler illumination) | ● | ● | |||
Polarizing Attachment | Polarizer and analyzer for reflection | ○ | ○ | ○ | ○ | |
Filters | Yellow filter | ○ | ○ | ○ | ○ | |
Green filter | ○ | ○ | ○ | ○ | ||
Blue filter | ○ | ○ | ○ | ○ | ||
Neutral filter | ○ | ○ | ○ | ○ | ||
Adapter | 0.35X C-mount adapter, focus adjustable | ○ | ○ | ○ | ○ | |
0.5X C-mount adapter, focus adjustable | ○ | ○ | ○ | ○ | ||
0.65X C-mount adapter, focus adjustable | ○ | ○ | ○ | ○ | ||
1X C-mount adapter, focus adjustable | ○ | ○ | ○ | ○ | ||
Digital eyepiece adapter | ○ | ○ | ○ | ○ | ||
Others | High precision micrometer, 0.01mm increment | ○ | ○ | ○ | ○ | |
Ordinary micrometer, 0.01mm increment | ○ | ○ | ○ | ○ | ||
Note: ● Standard Outfit, ○ Optional
System Diagram
Sample Images
Specifications for BestScope BS-6006BTR Binocular Metallurgical Microscope
| Manufacturer | BestScope |
