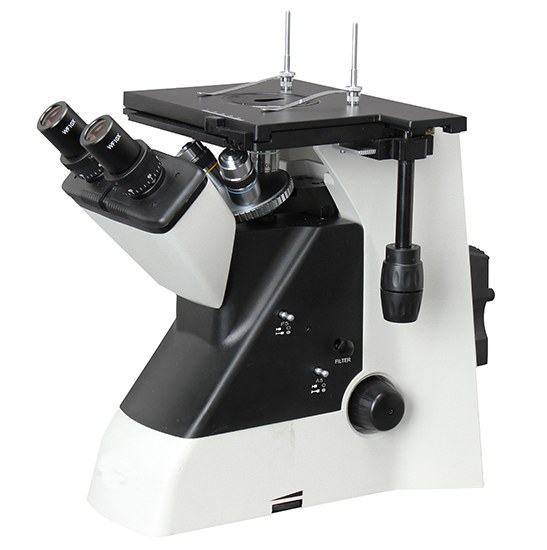

BestScope BS-6003B Binocular Inverted Metallurgical Microscope

Manufacturer

1.00 E£ 1.00 E£ 1.0 EGP

1.00 E£

This combination does not exist.

BS-6003B inverted metallurgical microscope is widely used in schools and laboratory to identify and analyze structure of metals and alloys, as well as do researching on metallurgical material after heating.
Model: BS-6003B | Magnification: 100×-1250× | Eyepiece: WF10×,WF12.5× | Objective: 10×,40×,100×(Oil) | Nosepiece: Triple | Illumination: Kohler | Viewing Head: Binocular | Focusing: Coaxial Coarse

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

BS-6003B Binocular Inverted Metallurgical Microscope

Key Details

Model	BS-6003B
Magnification	100×-1250×
Eyepiece	WF10×,WF12.5×
Objective	10×,40×,100×(Oil)
Nosepiece	Triple
Illumination	Kohler
Viewing Head	Binocular
Focusing	Coaxial Coarse

Features

Perfect for education, experiment and normal testing.
Easy operation, also supply high quality image.

Specification

Item	Specification	BS-6003M	BS-6003B	BS-6003T
Optical System	Finite optical system	●	●	●
Viewing Head	Monocular viewing head	●	○	○
	Sliding binocular viewing head	○	●	○
	Tinocular viewing head	○	○	●
	Integrated sliding binocular digital head(3.0MP)	○	○	○
Eyepiece	Wide field eyepiece WF10×/18mm	●	●	●
	Wide field eyepiece WF12.5×/14mm	●	●	●
	Wide field eyepiece WF16×/11mm	○	○	○
Objective	Achromatic objective 10×/0.25, WD=6.3mm	●	●	●
	Plan achromatic objective 40×/0.65, WD=0.7mm	●	●	●
	LWD Plan achromatic objective 50×/0.75, WD=2mm	○	○	○
	Achromatic objective 100×/1.25(oil), WD=0.1mm	●	●	●
Nosepiece	Triple nosepiece	●	●	●
Focusing	Coaxial coarse and fine adjustment, Fine division 0.002mm, Focusing range 30mm	●	●	●
Stage	Mechanical stage 180×155mm, Moving range 40×30mm, Stage Clips	●	●	●
Illumination	Kohler illumination, 12V/20W Halogen lamp, brightness adjustable	●	●	●
Filter	Blue, Green, Yellow and Ground filter	●	●	●

Note: ● Standard Outfit, ○ Optional
