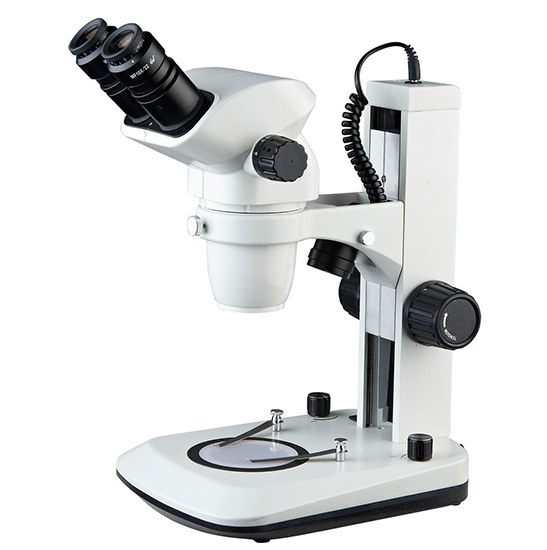

BestScope BS-3030B Binocular Zoom Stereo Microscope

Manufacturer

1.00 E£ 1.00 E£ 1.0 EGP

1.00 E£

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

BS-3030B Binocular Zoom Stereo Microscope

Optional eyepieces and auxiliary objectives expand magnification range and working distances. Various stand, Cold light source and ring light are optional for these microscopes.

Key Details

Model	BS-3030B
Magnification	6.7×-45×
Eyepiece	WF10×
Objective	0.67×-4.5×
Working Distance	105mm
Illumination	LED
Viewing Head	Binocular
Zoom Ratio	1:6.7
Microscope Base Size	205×275×40mm

Features

High quality and excellent cost performance.
Ergonomic design, sharp image display, wide viewing field and easy to operate.
Providing a wide viewing field of Φ22mm with the zoom ratio of 1:6.7, zoom range: 0.67×-4.5×.
Transmitted & Reflected 3W LED Illumination are available for BS-3030B and BS-3030BT.
Ideal instrument in academic, medical and industrial field.

Application

BS-3030 series stereo microscopes are of great value in a variety of applications such as school education, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.

Specification

Item	Specification		BS- 3030A	BS- 3030AT	BS- 3030B	BS- 3030BT
Optical system	Greenough Optical System		●	●	●	●
Viewing Head	Binocular head, inclined at 45°, rotatable 360°, Interpupillary Distance 54-75mm, diopter adjustment on both eyepieces		●	●
Viewing Head	Trinocular head, inclined at 45°, rotatable 360°, Interpupillary Distance 54-75mm, diopter adjustment on both eyepieces		●	●
Eyepiece	WF10×/Φ22mm		●	●	●	●
	WF15×/Φ16 mm		○	○	○	○
	WF20×/Φ12 mm		○	○	○	○
	WF25×/Φ9 mm		○	○	○	○
	WF30×/Φ8 mm		○	○	○	○
	WF10×Φ22mm Eyepiece with cross line(Eyepiece micrometer)		○	○	○	○
Objective	Zoom objective	0.67×-4.5×	●	●	●	●
	Auxiliary objective	0.3×, W.D. 287mm	○	○	○	○
		0.5×, W.D. 177mm	○	○	○	○
		0.7×, W.D. 113mm	○	○	○	○
		1.5×, W.D. 47mm	○	○	○	○
		2×, W.D. 26mm	○	○	○	○
Zoom Ratio	1:6.7		●	●	●	●
Magnification	6.7×-45×		●	●	●	●
Working Distance	105mm		●	●	●	●
Focusing	Coarse focus knob with tension adjustable, moving range: 106mm. Focusing arm diameter: 76mm		●	●	●	●
Column Height	300mm		●	●	●	●
Column Height	500mm (used with 0.3× and 0.5× auxiliary objective)		○	○	○	○
Microscope Base Size	205×275×22mm		●	●
Microscope Base Size	205×275×40mm		●	●
Illumination	Reflected illumination: 5V 3W LED		○	○	●	●
Illumination	Transmitted illumination: 5V 3W LED		○	○	●	●
Attachment	Photo Adapter (For Nikon, Canon, Olympus, Sony DSLR Cameras)		○	○
	0.5× C-mount adapter (adjustable)		●	●
	1× C-mount adapter		○	○
Package	1pc/carton, 51cm37cm31cm, Net weight: 5.5kg, Gross weight: 6.5kg		●	●	●	●

Note: ● Standard Outfit, ○ Optional
