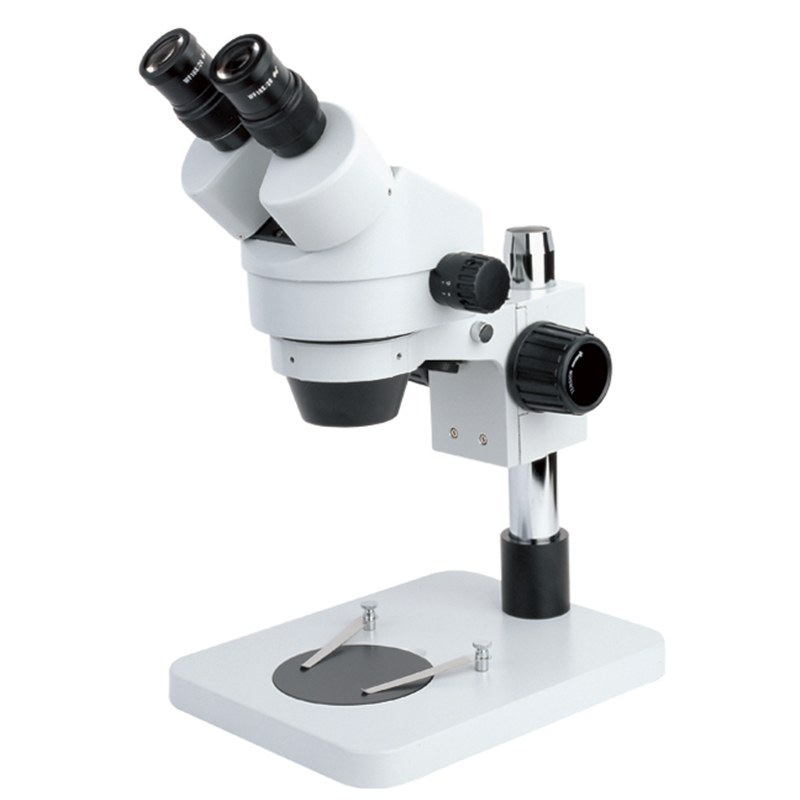

BestScope BS-3025B1 Binocular Zoom Stereo Microscope
BS-3025B1 Stereo Microscope is an excellent stereo microscope catering to the demands of the biological, medical, research, and electronic industries for testing. This microscope is very popular and cost-effective. Optional eyepieces and auxiliary objectives can expand the magnification range and working distances.
Model: BS-3025B1 | Magnification: 7×-45× | Eyepiece: WF10× | Objective: 0.7×-4.5× | Working Distance: 100mm | Illumination: None | Viewing Head: Binocular | Zoom Ratio: 6.4:1
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BS-3025B1 Binocular Zoom Stereo Microscope
BS-3025B1 Stereo Microscope is an excellent stereo microscope catering to the demands of the biological, medical, research, and electronic industries for testing. This microscope is very popular and cost-effective. Optional eyepieces and auxiliary objectives can expand the magnification range and working distances.
Key Details
| Model | BS-3025B1 |
| Magnification | 7×-45× |
| Eyepiece | WF10× |
| Objective | 0.7×-4.5× |
| Working Distance | 100mm |
| Illumination | None |
| Viewing Head | Binocular |
| Zoom Ratio | 6.4:1 |
Features
1.High-quality optical system
Fully coated optical system, sharp and clear images with extremely good flatness and contrast. The images are brighter and more distinct even at the periphery of the visual field.
2.Large magnification
Zoom objectives 0.70X-4.5X, zoom ratio 6.4:1. Optional auxiliary objectives and other eyepiece help you achieve best magnification.
3.Overlong effective working distance
Standard working distance is 100mm. With optional auxiliary objectives, the working distance is increased to 33mm-165mm., providing you a special maximum working space.
4.Structure design of ergonomics
Viewing head 45°inclined, each tube allows interpupillary distance and diopter adjustments to suit the user and ergonomic design.
5.Viewing head
High eyepoint, wide field eyepieces, with adjustable diopter (±5) avoid the phenomenon of blurred edges of the field of view blurred and can help to find object fast, greatly improved comfortableness of observation.
Specification
Item | Specification | BS-3025B1 | BS-3025B2 | BS-3025B3 | |
Viewing Head | 45° inclined binocular head, 360° rotatable, interpupillary distance: 54-75mm, visual adjustment: ±5 diopter. Zoom objective: 0.70-4.5X, working distance: 100mm | ● | ● | ● | |
45° inclined trinocular head, 360° rotatable, interpupillary distance: 54-75mm, visual adjustment: ±5 diopter. Zoom objective: 0.70-4.5X, working distance: 100mm | ○ | ○ | ○ | ||
Eyepiece | High eyepoint wide field eyepiece WF10X/20mm | ● | ● | ● | |
High eyepoint wide field eyepiece WF10X/20mm, with micrometer | ○ | ○ | ○ | ||
High eyepoint wide field eyepiece WF15X/15mm | ○ | ○ | ○ | ||
High eyepoint wide field eyepiece WF15X/15mm, with micrometer | ○ | ○ | ○ | ||
High eyepoint wide field eyepiece WF20X/10mm | ○ | ○ | ○ | ||
High eyepoint wide field eyepiece WF20X/10mm, with micrometer | ○ | ○ | ○ | ||
Objective | Zoom objective | 0.70X-4.5X | ● | ● | ● |
Auxiliary objective | 0.5X, WD=165mm | ○ | ○ | ○ | |
0.75X, WD=105mm | ○ | ○ | ○ | ||
1.5X, WD=45mm | ○ | ○ | ○ | ||
2X, WD=33mm | ○ | ○ | ○ | ||
Zoom Ratio | 6.4:1 | ● | ● | ● | |
Working Distance | 100mm | ● | ● | ● | |
Focus Holder | Focus holder BSZ-A1, tension adjustable, moving range 48.5mm, pillar hole size: Ф32mm, microscope mount size: Ф76mm, distance between the 2 holes: 155mm | ● | ● | ||
Stand | BSZ-B1 Pillar stand flat base, pole diameter Φ32mm, pole height 228mm. Base size: 200*255*22mm, Φ95 black & white plate, with clips. No illumination. Using with BSZ-A1 | ● | |||
BSZ-B2 Pillar stand transmitted base, with halogen lamp 12V 15W as lower light source, brightness adjustable. Pole diameter Φ32mm, pole height 228mm. Base size: 200*255mm, Φ95 glass plate, with clips. Using with BSZ-A1 | ● | ||||
BSZ-BL6 Pillar stand transmitted base, pole diameter Φ32mm, pole height 228mm. Base size: 255*200mm, Φ95 glass plate, with clips. Incident and transmitted (1pcs LED lamp, 5W) LED illumination with separate control. Low voltage safety, low power consumption, and low heat generation. | ● | ||||
Illumination | Epi-illuminator, 12V 15W, adapt to BSZ-A1 | ○ | ● | ||
Gem Clap | Gem clap | ○ | ○ | ○ | |
Adapter | 0.35X C-mount adapter, adjustable focus | ○ | ○ | ○ | |
0.5X C-mount adapter, adjustable focus | ○ | ○ | ○ | ||
0.65X C-mount adapter, adjustable focus | ○ | ○ | ○ | ||
1X C-mount adapter, adjustable focus | ○ | ○ | ○ | ||
Measurement Stage | Precision measurement stage (0-25mm/150*150mm), with mechanical micrometer. Installation size 95mm | ○ | ○ | ○ | |
Precision measurement stage (0-25mm/150*150mm), with digital micrometer. Installation size 95mm | ○ | ○ | ○ | ||
Other | Dust proof mirror, Ф54mm, installation thread 48mm | ○ | ○ | ○ | |
Ring lamp connector, Ф54mm, installation thread 48mm | ○ | ○ | ○ | ||
Note: ● Standard Outfit, ○ Optional
Application
BS-3025B1 microscope is widely used in education, laboratory research, biology, metallurgy, engineering, chemistry, manufacturing, as well as in the medical, forensic science, and veterinary industries. It can be used for circuit board repair and inspection, semiconductor inspection, SMT work, electronics inspection, dissection, coin collecting, gemology, gemstone setting, engraving, as well as the repair and inspection of small parts.
Specifications for BestScope BS-3025B1 Binocular Zoom Stereo Microscope
| Manufacturer | BestScope |
