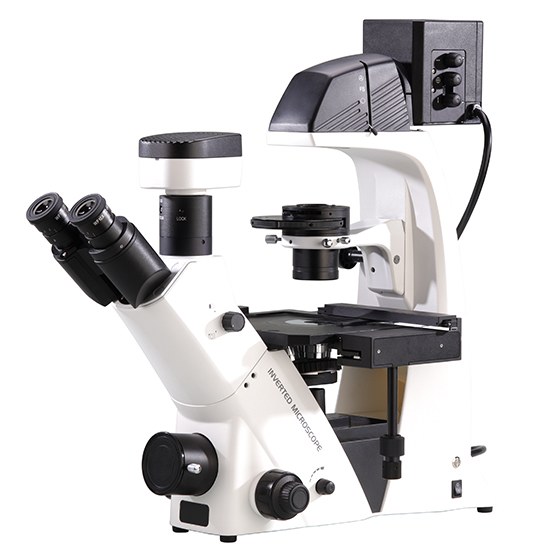

BestScope BS-2093B Inverted Biological Microscope

Manufacturer

1.00 E£ 1.00 E£ 1.0 EGP

1.00 E£

This combination does not exist.

BS-2093B Inverted Biological Microscope is a high-level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. With an innovative infinite optical system and ergonomic design, it has excellent optical performance and easy to operate features. This inverted biological microscope makes your work enjoyable. Digital cameras can be added to the trinocular head to take…
Model: BS-2093B | Viewing Head: Trinocular | Magnification: 40x-400x | Eyepiece: PL10X/22mm | Objective: 4×, 10×, 20×, 40× | Illumination: 12V/50W Halogen Lamp | Stage: 210(X)×240mm(Y)

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

BS-2093B Inverted Biological Microscope

Key Details

Model	BS-2093B
Viewing Head	Trinocular
Magnification	40x-400x
Eyepiece	PL10X/22mm
Objective	4×, 10×, 20×, 40×
Illumination	12V/50W Halogen Lamp
Stage	210(X)×240mm(Y)

Features

1.Wide field of view

Excellent infinite optical system, Wide field eyepiece, view field up to Φ22mm, more comfortable for observation.

2.Better nosepiece

More objectives can be installed on the large diameter quintuple nosepiece, easier to change objective.

3.Viewing head with two splitting ratios

Light distribution (both): 100:0 (100% for eyepiece) or 80:20 (80% for trinocular head and 20% for eyepiece).

4.Camera ports

Both light ports for microscope digital camera and DSLR photography camera, available for observing with microscope digital camera and DSLR photography camera at the same time.

Special light port for SLR digital camera, 7°inclined up to be more convenient to observe the image of the DSLR camera.

5.ECO function

Automatic infrared induction for power on-off. Power off upon user leaving 10 minutes, and power on upon user approaching.

6.Kohler illumination

12V/50W Kohler illumination makes the field more even and brighter.

7.4-hole rotating disc phase contrast condenser

4-hole rotating disc phase contrast condenser as standard to change bright field and phase contrast easily.

8.LED Epi fluorescent unit

Newly designed BFL2LED (5W LED lamp, B/G fluorescent filter) & BFL3LED (5W LED lamp, UV/B/G fluorescent filter) LED fluorescent unit can provide higher intensity and get clear images.

9.Convenient for both hands

The knob of X-Y mechanical stage can be changed by left or right.

Specification

Item	Specification		BS-2093 B	BS-2093 BF	BS-2093 BF(LED)
Optical System	Infinite Optical System		●	●	●
Viewing Head	Inclined 45°trinocular tube, interpupillary distance: 48-76mm, splitting ratio: eyepiece: trinocular=100:0 or 20:80. Eyepiece tube diameter: 30mm		●	●	●
Eyepiece	Wide field plan eyepiece PL10X/22mm, with adjustable diopter		●	●	●
	Wide field eyepiece WF15×/ 16mm		○	○	○
	Wide field eyepiece WF20×/ 12mm		○	○	○
Objective	Long Working Distance Infinite Plan Achromatic Objective (L Plan FL)	2X/NA=0.06, WD=7.2mm	○	○	○
		4X/NA=0.11, WD=12.1mm	●	●	●
		10X/NA=0.25, WD=10.3mm	○	○	○
		20X/NA=0.45, WD=5.8mm	○	○	○
		40X/NA=0.65, WD=5.1mm	○	○	○
	Long Working Distance Infinite Plan Achromatic Phase Contrast Objective (L Plan FL PHP)	4X/NA=0.10, WD=9.2mm	○	○	○
		10X/NA=0.25, WD=10.3mm	●	●	●
		20X/NA=0.45, WD=5.8mm	●	●	●
		40X/NA=0.65, WD=5.1mm	●	●	●
	LWD Infinite Plan Fluor Objectives (L Plan Fluor)	10X/NA=0.3, WD=14mm	○	○	○
		20X/NA=0.45, WD=6.6mm	○	○	○
		40X/NA=0.65, WD=3.9mm	○	○	○
Nosepiece	Quintuple nosepiece		●	●	●
Condenser	4-hole rotating disc phase contrast condenser, N.A.0.4, W.D.45mm, adjustable up and down.		●	●	●
Centering Telescope	Centering telescope (Φ30mm)		●	●	●
Phase Annulus	4X phase annular plate		●	●	●
Phase Annulus	10X/20X/40X phase annular plate		●	●	●
Stage	Stage size: 210mm(X)*241mm(Y). Round size: Φ110mm. Coaxial coarse and fine adjustment, fine division 0.002mm, moving range 10mm		●	●	●
	Attached mechanical stage, available for 96 holes plate. X-Y coaxial control, moving range: 128mm(X)*80mm(Y)		●	●	●
	Φ65mm culture dish holder +Φ35mm culture dish holder		○	○	○
	Φ54mm culture dish holder		●	●	●
	Holder for blood cell counter		○	○	○
	Universal holder		○	○	○
	Glass holder		○	○	○
Focusing	Coaxial coarse and fine adjustment, fine division 0.002mm, moving range 10mm		●	●	●
Koehler Illumination	12V/50W halogen lamp, input voltage: 100V-240V		●	●	●
Koehler Illumination	5W LED lamp, input voltage: 100V-240V		○	○	○
Auto power on-off system	Power off automatically upon user leaving 10 minutes, power on automatically upon user approaching		○	○	○
Filter	Blue filter (Φ34mm)		●	●	●
	Green filter (Φ34mm)		●	●	●
	Amber/Gray filter (Φ34mm)		○	○	○
Adapter	Digital photography C-mount, for CANON or NIKON SLR Digital Photography Camera. 100% light for photography port		●	●	●
	0.35X C-mount adapter, adjustable focus		○	○	○
	0.5X C-mount adapter, adjustable focus		○	○	○
	0.65X C-mount adapter, adjustable focus		○	○	○
	1X C-mount adapter, adjustable focus		○	○	○
	Trinocular digital eyepiece interface		○	○	○
Epi-Fluorescent Attachment	Two channel fluorescence module: one 100W mercury lamp and B/G filters		○	●	○
	BFL2LED Two channel fluorescence module: 5W LED and B/G filters. Synchronize LED bulbs with color filters. The fluorescence brightness is more than twice that of four channel LED fluorescence module.		○	○	●
	BFL3LED Three channel fluorescence module: 5W LED and B/G filters. Synchronize LED bulbs with color filters. The fluorescence brightness is more than twice that of four channel LED fluorescence module.		○	○	○
	Four channel fluorescence module: one 100W mercury lamp and V/UV/B/G filters		○	○	○
	Four channel fluorescence module: 5W LED and V/UV/B/G filters		○	○	○
Packing	1carton/set, Packing Size: 66cm×59cm×33cm, Gross Weight: 18kgs, Net Weight: 13.5kgs		●	●	●

Note: ● Standard Outfit, ○ Optional

Application

BS-2093B Inverted microscope is used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.

Accessories

1.Culture Dish Holder

Φ65mm

Φ54mm

Φ35mm

blood cell counter holder

2.Universal holder and glass holder

Universal Holder

Glass Holder

3.Fluorescent Attachment

LED fluorescent attachment for BS-2093BF(LED)

Mercury fluorescent attachment for BS-2093BF

4.Objectives

Objective Parameter List (Cover-glass thickness1.1mm)

Objectives	N.A.	Working distance(mm)
LWD Infinity Plan Objectives	Plan FL 2X	0.06	7.2
	L Plan FL 4X	0.11	12.1
	L Plan FL 10X	0.25	10.3
	L Plan FL 20X	0.45	5.8
	L Plan FL 40X	0.65	5.1
	L Plan FL 2X	0.06	7.2
LWD Infinity Plan Phase Contrast Objectives	L Plan FL PHP 4X (Both for Bright Field & Phase Contrast)	0.10	9.2
	L Plan FL PHP 10X (Both for Bright Field & Phase Contrast)	0.25	10.3
	L Plan FL PHP 20X (Both for Bright Field & Phase Contrast)	0.45	5.8
	L Plan FL PHP 40X (Both for Bright Field & Phase Contrast)	0.65	5.1
LWD Infinity Plan Fluor Objectives	L Plan Fluor 10x	0.30	14.0
	L Plan Fluor 20x	0.45	6.6
	L Plan Fluor 40x	0.65	3.9
