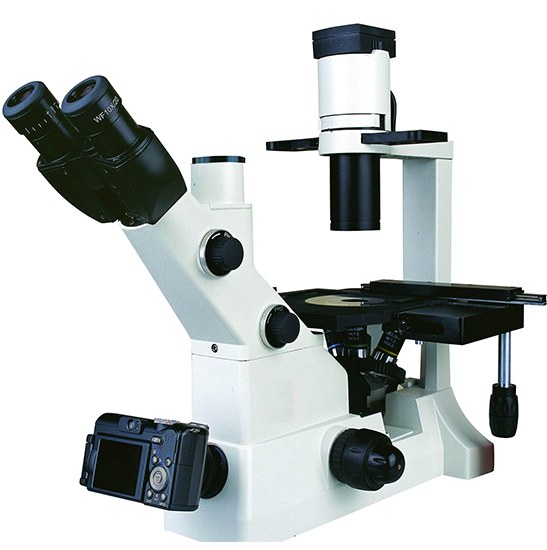

BestScope BS-2092 Inverted Biological Microscope

Manufacturer

1.00 E£ 1.00 E£ 1.0 EGP

1.00 E£

This combination does not exist.

BS-2092 Inverted Biological Microscope is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this inverted biological microscope makes your works enjoyable.…
Model: BS-2092 | Magnification: 40x-400x | Eyepiece: WF10× | Objective: 4×, 10×, 20×, 40× | Illumination: Halogen Lamp | Stage: Plain Stage 170×230mm | Viewing Head: Trinocular | Condenser: NA 0.3

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

BS-2092 Inverted Biological Microscope

BS-2092 Inverted Biological Microscope is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this inverted biological microscope makes your works enjoyable. It has a trinocular head, so digital camera or digital eyepiece can be add to the trinocular head take photos and videos.

Key Details

Model	BS-2092
Magnification	40x-400x
Eyepiece	WF10×
Objective	4×, 10×, 20×, 40×
Illumination	Halogen Lamp
Stage	Plain Stage 170×230mm
Viewing Head	Trinocular
Condenser	NA 0.3

Features

Excellent optical function with infinite optical system.
DSLR(Digital Single Lens Reflex) and microscope digital camera can be used together for image and video capture.
Innovative stand structure, sharp image display, convenient and special for viewing incubating cell tissue.
With LWD Infinite Plan Objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier.
Advanced and Reliable Mechanical Stage with Knob Height and Tightness Adjustable.
With pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimens.

Application

BS-2092 Inverted microscope is used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.

Specification

Item	Specification		BS-2092
Optical System	Infinite Optical System		●
Viewing Head	Seidentopf Trinocular Head, Inclined at 45°, Interpupillary Distance 48-75mm		●
Eyepiece	Wide Field Eyepiece WF10×/ 20mm, Eyepiece Tube Diameter 30mm		●
	Wide Field Eyepiece WF15×/ 16mm		○
	Wide Field Eyepiece WF20×/ 12mm		○
Objective	LWD(Long Working Distance) Infinite Plan Achromatic Objective 4×/ 0.1,WD 22mm		●
	LWD(Long Working Distance) Infinite Plan Achromatic Phase Objective	10×/ 0.25, WD 6mm	●
		20×/ 0.4, WD 3.1mm	●
		40×/ 0.55, WD 2.2mm	●
	Lamp House Adjustment Objective		○
Nosepiece	Backward Quintuple Nosepiece		●
Condenser	ELWD(Extra Long Working Distance) Condenser NA 0.3, LWD 72mm (Without Condenser the WD is 150mm)		●
Centering Telescope	Centering Telescope (Φ30mm)		●
Phase Annulus	10×-20×, 40× Phase Annulus Plate(Fixed)		●
	10×-20×, 40× Phase Annulus Plate(Adjustable)		○
Stage	Plain Stage 170×230mm		●
	Glass Insert		●
	Attachable Mechanical Stage, X,Y Coaxial Control, Moving Rang120mm×80mm		●
	Auxiliary Stages 70mm×180mm		●
	Terasaki Holder		●
	Petri Dish Holder Φ35mm		●
	Slide Glass Holder Φ54mm		●
Focusing	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm,Moving Range up 4.5mm, down 4.5mm		●
Illumination	Halogen Lamp 6V/30W, Brightness Adjustable		●
	5W LED		○
Filter	Blue, Green and Frosted Glass Filter, Diameter 45mm		●
Accessories	23.2mm Photo tube Attachment(Used to connect microscope adapter and camera)		○
	0.5× C-mount(Used to directly connect to a C-mount digital camera)		○
	Epi-Fluorescent Attachment		○
Package	1carton/set, 46.5cm39.5cm64cm, 18kg		●

Note: ● Standard Outfit, ○ Optional
