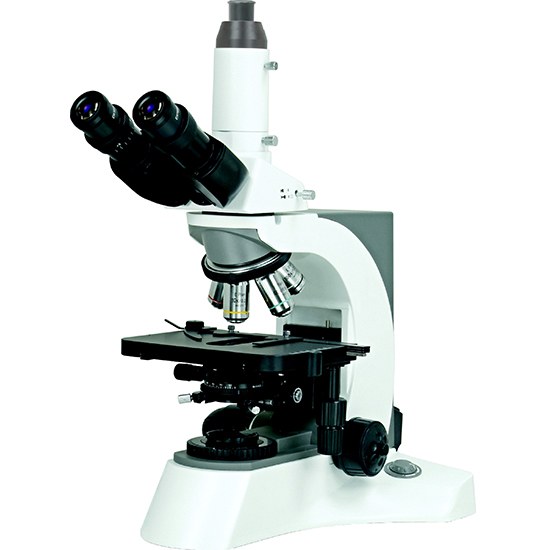

BestScope BS-2080 Laboratory Biological Microscope

Manufacturer

1.00 E£ 1.00 E£ 1.0 EGP

1.00 E£

This combination does not exist.

BS-2080 Laboratory Biological Microscope is a high level microscope which is specially designed for laboratory research. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this laboratory biological microscope makes your laboratory works enjoyable.
Model: BS-2080 | Magnification: 40x-1000x | Eyepiece: EW10× | Objective: 4×, 10×, 40×(S), 100×(S,Oil) | Illumination: Halogen Lamp | Stage: 185×142mm | Viewing Head: Trinocular | Condenser: NA 0.9/ 0.25

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

BS-2080 Laboratory Biological Microscope

Key Details

Model	BS-2080
Magnification	40x-1000x
Eyepiece	EW10×
Objective	4×, 10×, 40×(S), 100×(S,Oil)
Illumination	Halogen Lamp
Stage	185×142mm
Viewing Head	Trinocular
Condenser	NA 0.9/ 0.25

Features

With Infinite Optical System, Kohler Illumination, providing excellent optical quality and making Image perfect.
With low and forward position of coarse and fine coaxial focus system, focusing knobs and brightness adjustable knob within reaching location, stable integral structure, and reasonable ergonomic design, making operators feel more comfortable and effective.

Application

This microscope is an ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Specification

Item	Specification		BS-2080
Optical System	Infinite Optical System		●
Viewing Head	Siedentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm		●
	5°-35° Tiltable Binocular/ Trinocular Head		○
Eyepiece	Extra Wide Field Eyepiece EW10×/ 22mm, Eyepiece Tube Diameter 30mm		●
Nosepiece	Backward Quintuple Nosepiece		●
	Backward Sextuple Nosepiece		○
Objective	Infinite Plan Achromatic Objective	2×/0.05, W.D.=18.3mm	○
		4×/0.10, W.D.=17.3mm	●
		10×/0.25, W.D.=10mm	●
		20×/0.40, W.D.=5.1mm	○
		40×/0.65(S), W.D.=0.54mm	●
		60×/0.8(S), W.D.=0.14mm	○
		100×/1.25(S, Oil), W.D.=0.13mm	●
	Infinite Plan Fluorescent Objective	4×/0.13, W.D.=16.3mm	○
		10×/0.30, W.D.=12.4mm	○
		20×/0.50, W.D.=1.5mm	○
		40×/0.75(S), W.D.=0.35mm	○
		100×/1.3(S, Oil), W.D.=0.13mm	○
Condenser	Swing-out Condenser NA 0.9/ 0.25		●
Focusing	Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm		●
Stage	Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm		●
Illumination	External Illumination, Aspherical Collector with Kohler Illumination, Halogen Lamp 6V/30W, Brightness Adjustable		●
	External Illumination, Aspherical Collector with Kohler Illumination, Halogen Lamp 24V/100W, Brightness Adjustable		○
	3W LED Illumination, Brightness Adjustable		○
	5W LED Illumination, Brightness Adjustable		○
Video Adapter	C-Mount 1×		○
	C-Mount 0.5×		○
Filter	Blue Filter		●
	Green Filter		●
Dark Field Attachment	Dark-field Condenser(Dry)		○
	Dark-field Condenser(Oil)		○
Accessories	Photo Attachment for Nikon or Canon DSLR cameras		○
	Polarization Attachment		○
	Turret Phase Contrast Kit		○
	FL-800 Epi-fluorescent Attachment		○
	FL-LED Epi-fluorescent Attachment		○
	Temperature Control Stage		○
Package	1carton/set, 43.5cm39.5cm59cm, 14kg		●

Note: ● Standard Outfit, ○ Optional
