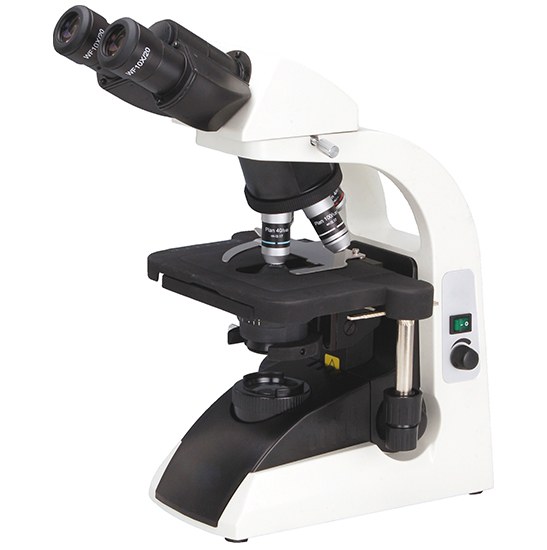

BestScope BS-2070B Binocular Biological Microscope
BS-2070 series microscopes are high level microscopes which are specially designed for college education, medical and laboratory research. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, these biological microscopes make your works enjoyable.
Model: BS-2070B | Magnification: 40x-1000x | Eyepiece: WF10x | Objective: 4×, 10×, 40×, 100× | Illumination: Halogen Lamp | Stage: 230×150mm | Viewing Head: Binocular | Condenser: NA1.25
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BS-2070B Binocular Biological Microscope
BS-2070 series microscopes are high level microscopes which are specially designed for college education, medical and laboratory research. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, these biological microscopes make your works enjoyable.
Key Details
| Model | BS-2070B |
| Magnification | 40x-1000x |
| Eyepiece | WF10x |
| Objective | 4×, 10×, 40×, 100× |
| Illumination | Halogen Lamp |
| Stage | 230×150mm |
| Viewing Head | Binocular |
| Condenser | NA1.25 |
Features
- Excellent image quality with infinite optical system.
- Comfortable operating with ergonomic design.
- Perfect illumination with sliding-in centerable condenser, easy to replace phase contrast and dark field condenser.
- Advanced design of mechanical stage structure prevents the scratches of users.
Application
BS-2070 series microscopes are ideal instruments in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.
Specification
Item | Specification | BS-2070B | BS-2070T |
Optical System | Infinite Optical System | ● | ● |
Viewing Head | Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm | ● | |
Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm | ● | ||
Eyepiece | WF10×/20mm | ● | ● |
WF15×/16mm | ○ | ○ | |
Objective | Infinite Plan Achromatic Objective 4×, 10×, 40×, 100× | ● | ● |
Infinite Plan Achromatic Objective 20×, 60× | ○ | ○ | |
Nosepiece | Backward Quadruple Nosepiece | ● | ● |
Backward Quintuple Nosepiece | ○ | ○ | |
Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm | ● | ● |
Stage | Rackless stage, Size 230×150mm, Cross Travel 78×54mm, Low-positioned X/Y Coaxial Control Knob, Can hold two slides | ● | ● |
Condenser | Abbe Condenser NA1.25 with Aperture Diaphragm | ● | ● |
Illumination | 12V/20W Halogen Lamp, Brightness Adjustable | ● | ● |
1W S-LED illumination, Brightness Adjustable | ○ | ○ | |
Optional | Photo Attachment, Video Attachment, Polarization Set, Phase Contrast Kit, Kohler Illumination | ○ | ○ |
Package | 1pc/carton, 38cm*26cm*51cm, 9kg | ● | ● |
Note: ●Standard Outfit, ○Optional
Specifications for BestScope BS-2070B Binocular Biological Microscope
| Manufacturer | BestScope |
