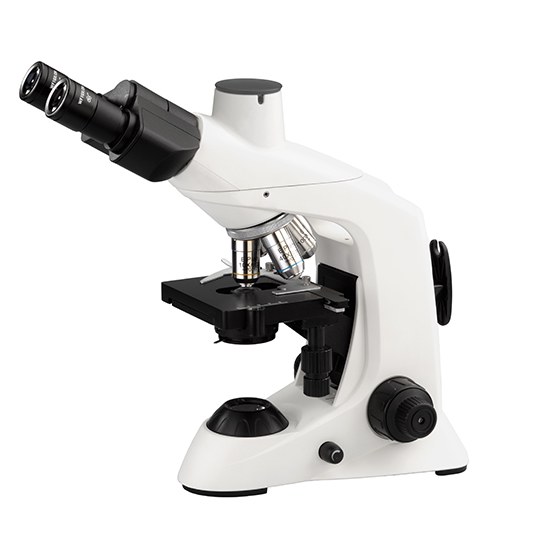

BestScope BS-2038T2 Trinocular Biological Microscope
BS-2038T2 microscopes are specially designed for college education, medical and laboratory study. They adopt Infinite optical system, beautiful structure and ergonomic design. With an innovative optical and structure design, excellent optical performance and easy to operate system, these biological microscopes make your works enjoyable.
Model: BS-2038T2 | Viewing Head: Trinocular | Magnification: 40x-1000x | Eyepiece: WF10x | Objective: Plan 4×, 10×, 40×, 100× | Illumination: 3W LED | Stage: 145mm×140mm | Condenser: N.A.1.25
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BS-2038T2 Trinocular Biological Microscope
BS-2038T2 microscopes are specially designed for college education, medical and laboratory study. They adopt Infinite optical system, beautiful structure and ergonomic design. With an innovative optical and structure design, excellent optical performance and easy to operate system, these biological microscopes make your works enjoyable.
Key Details
| Model | BS-2038T2 |
| Viewing Head | Trinocular |
| Magnification | 40x-1000x |
| Eyepiece | WF10x |
| Objective | Plan 4×, 10×, 40×, 100× |
| Illumination | 3W LED |
| Stage | 145mm×140mm |
| Condenser | N.A.1.25 |
Features
1.Perfect optical system
Excellent infinite optical system with high resolution and perfect definition. High resolution and perfect definition from infinity correct optical system. 100X water objective is available for convenient viewing.
2.Perfect ergonomics design
Comfortable operating with ergonomic design. Low position operation, convenient for long-term using. New wound device for cable, easy to move and keeping. The changing of objectives can be watched by back side through the back watching window.
3.Perfect appearance design
Drop-style integrated appearance design, looks elegant.
4.Viewing head
Brand new and humanized butterfly binocular head-tubes can be 360° rotated to raise observing height 44mm than normal tubes to be more convenient for users with different height.
5.Various accessories for upgrading
Wire Winding Device
Rackless (Integrated) Stage
100× Water objective
Simple polarizing unit Polarizer & analyzer
Dark filed unit available for 4×- 60× objective
Specification
Item | Specification | BS-2038T1 | BS-2038T2 | |
Optical System | Color Corrected Infinite Optical System | ● | ● | |
Viewing Head | Inclined 30° binocular tube, 360° rotatable, interpupillary distance: 48-75mm | ○ | ○ | |
Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 48-75mm, splitting ratio: eyepiece: trinocular=20:80 | ● | ● | ||
Eyepiece | High eyepoint wide field eyepiece WF10X/20mm | ● | ● | |
High eyepoint wide field eyepiece WF10X/20mm, with reticule 0.1mm | ○ | ○ | ||
High eyepoint wide field eyepiece WF10X/20mm, focusing adjustable, with reticule 0.1mm | ○ | ○ | ||
Wide field eyepiece WF10X/18mm | ○ | ○ | ||
Infinite Objective | Infinity E-Plan Objectives | 4X/ NA 0.10 | ● | ○ |
10X/ NA 0.25 | ● | ○ | ||
40X/ NA 0.65 (S) | ● | ○ | ||
(Oil) 100X/NA 1.25 (S) | ● | ○ | ||
Infinity Plan Objectives | 4X/ NA 0.10 | ○ | ● | |
10X/ NA 0.25 | ○ | ● | ||
20X/ NA 0.40 (S) | ○ | ○ | ||
40X/ NA 0.66 (S) | ○ | ● | ||
60X/ NA 0.80 (S) | ○ | ○ | ||
(Oil) 100X/ NA 1.25 (S) | ○ | ● | ||
(Water) 100X/ NA 1.15 (S) | ○ | ○ | ||
Nosepiece | Backward Quadruple Nosepiece | ● | ● | |
Mechanical Stage | Size 145mm×140mm, travel range:76mm*52mm, scale: 0.1mm, two slide holders | ● | ● | |
Rackless (integrated) stage, size 140mm*135mm, travel range: 75mm*35mm, scale: 0.1mm, two slide holders | ○ | ○ | ||
Condenser | Abbe condenser NA 1.25 with iris diaphragm | ● | ● | |
Focusing | Coaxial coarse and fine focusing knob, coarse focusing travel range: 25mm, fine division: 2µm | ● | ● | |
Illumination | 3W LED lamp, voltage: 100V-240V | ● | ● | |
Dark Field Unit | Dark Field Ring (Dry, N.A.0.9), used for 4X-40X objectives | ○ | ○ | |
Polarizing Unit | Analyzer & Polarizer | ○ | ○ | |
Filter | Blue filter (Φ32) | ○ | ○ | |
Green filter (Φ32) | ○ | ○ | ||
Yellow filter (Φ32) | ○ | ○ | ||
C-mount | 0.35X C-mount adapter, adjustable focus | ○ | ○ | |
0.5X C-mount adapter, adjustable focus | ● | ● | ||
0.75X C-mount adapter, adjustable focus | ○ | ○ | ||
1X C-mount adapter, adjustable focus | ○ | ○ | ||
Trinocular digital eyepiece interface | ○ | ○ | ||
Wire Winding Device | Wind cable on back of the microscope | ● | ● | |
Note: ●Standard Outfit, ○Optional
Packing Size: 350mm*270mm*470mm, Gross Weight: 6.7 kgs, Net Weight: 5.3 kgs
Application
BS-2038T2 microscopes are ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.
