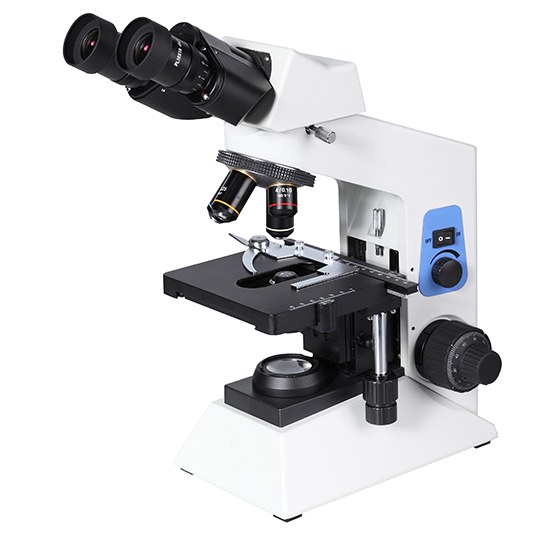

BestScope BS-2032B Binocular Biological Microscope
Feature1.EyepieceNew high-point plan eyepiece PL10X/18mm. More comfortable, observe conveniently with glasses. Different kinds of micrometer and pointer for option to install.2.ObjectivesAll objectives through particularly processing, great effective mold proof and long service time to ensure long-term clearly image.ItemMagnificationN.A.Working distance (mm)Conjugate distance (mm)Achromatic Objectives4X0.1021.5019510X0.256.3019540X…
Model: BS-2032B | Magnification: 40x-1000x | Eyepiece: PL10X | Objective: 4×, 10×, 40×, 100× | Illumination: LED | Stage: 140mm*132mm/76mm*50mm | Viewing Head: Binocular | Condenser: NA 1.25
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BS-2032B Binocular Biological Microscope
Feature1.EyepieceNew high-point plan eyepiece PL10X/18mm. More comfortable, observe conveniently with glasses. Different kinds of micrometer and pointer for option to install.2.ObjectivesAll objectives through particularly processing, great effective mold proof and long service time to ensure long-term clearly image.ItemMagnificationN.A.Working distance (mm)Conjugate distance (mm)Achromatic Objectives4X0.1021.5019510X0.256.3019540X (S)0.650.48195100X (S) (Oil)1.250.15195Plan Achromatic Objectives4X0.1017.9119510X0.256.4019540X (S)0.650.65195100X (S) (Oil)1.250.16195Infinity Plan Achromatic Objectives4X0.1018.60∞10X0.2516.70∞20X0.451.50∞40X (S)0.650.72∞100X (S) (Oil)1.250.18∞3.Viewing headGemel-type, 30° inclined, 360° rotatable.Inter-pupillary range: 54-75mm.Diopter adjustment: ±5.4.NosepieceReversed quadruple nosepiece (Quintuple for option). Easy to install and operate objectives. High-precision manufacturing to ensure the system focusing.5.StageMechanical stage with low position coaxial regulating handles. Stage size: 140mm*132mm or 150mm*140mm. Moving range: 76mm*50mm. Precision: 0.1mm. Damping slice clip can place two slices. Stage with particular processing, effective corrosion-resistant.6.Focus systemCoaxial coarse and fine adjustment. Low position design, comfortable operation. Focus range: 28mm. Focus precision: 0.002mm.7.IlluminationAdopt variable voltage (100-240V), 6V/20W halogen bulb. With adjustable brightness too provide full and uniform illumination for various objectives.Option: ultra-high brightness single LED cold light source with long working life.
Key Details
| Model | BS-2032B |
| Magnification | 40x-1000x |
| Eyepiece | PL10X |
| Objective | 4×, 10×, 40×, 100× |
| Illumination | LED |
| Stage | 140mm*132mm/76mm*50mm |
| Viewing Head | Binocular |
| Condenser | NA 1.25 |
Application
BS-2032 series microscopes are ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.
Specification
Item | Specification | BS-2032B | BS-2032T | |
Optical System | Color Corrected Optical System | ● | ● | |
Viewing Head | Inclined 30° binocular tube, 360° rotatable, diopter adjustable | ● | ||
Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 50-75mm, bilateral diopter adjustment: ±5 diopters, splitting ratio: eyepiece: trinocular=80:20. Infinite. | ● | |||
Eyepiece | High eyepoint wide field plan eyepiece PL10X/18mm | ● | ● | |
High eyepoint wide field plan eyepiece PL10X/18mm, with pointer | ○ | ○ | ||
High eyepoint wide field plan eyepiece PL10X/18mm, with micrometer | ○ | ○ | ||
High eyepoint wide field plan eyepiece PL10X/20mm | ○ | ○ | ||
High eyepoint wide field plan eyepiece PL10X/18mm, diopter adjustable | ○ | ○ | ||
Wide field plan eyepiece PL15X/13mm | ○ | ○ | ||
Wide field plan eyepiece PL20X/10mm | ○ | ○ | ||
Objectives | Achromatic Objectives | 4X/ NA 0.10, WD=21.50mm | ● | ● |
10X/ NA 0.25, WD=6.26mm | ● | ● | ||
40X (S)/ NA 0.65, WD=0.48mm | ● | ● | ||
(Oil) 100X (S)/ NA 1.25, WD=0.15mm | ● | ● | ||
Finite Plan Achromatic Objectives | 4X/ NA 0.10, WD=15.09mm | ○ | ○ | |
10X/NA 0.25, WD=8.57mm | ○ | ○ | ||
20X/ NA 0.40, WD=8.72mm | ○ | ○ | ||
40X (S)/ NA 0.65, WD=0.38mm | ○ | ○ | ||
(Oil) 100X (S)/ NA 1.25, WD=0.09mm | ○ | ○ | ||
Infinite Plan Achromatic Objectives | 2X/ NA 0.06, WD=5.00mm (should work with forested glass on the condenser) | ○ | ○ | |
4X/ NA 0.10, WD=15.00mm | ○ | ○ | ||
10X/ NA 0.25, WD=10.80mm | ○ | ○ | ||
20X/ NA 0.40, WD=1.50mm | ○ | ○ | ||
40X/ NA 0.65, WD=0.80mm | ○ | ○ | ||
60X/ NA 0.85, WD=0.30mm | ○ | ○ | ||
100X/ NA 1.25, WD=0.21mm | ○ | ○ | ||
Infinite Plan Achromatic Positive Phase Contrast Objectives | 10X/ NA 0.25, WD=10.80mm | ○ | ○ | |
20X/ NA 0.40, WD=1.50mm | ○ | ○ | ||
40X/ NA 0.65, WD=0.80mm | ○ | ○ | ||
100X/ NA 1.25, WD=0.21mm | ○ | ○ | ||
Microscope body, Nosepiece, Stage & Illumination | Low position coaxial coarse and fine focusing system, travel range: 28mm, fine precision: 0.002mm, with elastic adjustment device and upper limit device. Double-layer mechanical stage with center pre-set condenser bracket. Stage size: 140mm*132mm. Travel range: 76mm*50mm, precision: 0.1mm. Inward quadruple nosepiece. Adaptive wide voltage of 100V-240V with integrated power supply switch and continuously adjustable brightness to make the bulb less prone to be broken. Center pre-set 6V/20W halogen lamp (fixed Koehler illumination) with blue filter (Φ45) | ● | ● | |
Low position coaxial coarse and fine focusing system, travel range: 28mm, fine precision: 0.002mm, with elastic adjustment device and upper limit device. Double-layer mechanical stage with center pre-set condenser bracket. Stage size: 140mm*132mm. Travel range: 76mm*50mm, precision: 0.1mm. Inward quadruple nosepiece. Adaptive wide voltage of 100V-240V with integrated power supply switch and continuously adjustable brightness to make the bulb less prone to be broken. Center pre-set 3W single LED lamp (cold or warm color for option, cold color temperature: 4750K-5500K, warm color temperature: 2850K-3280K) (fixed Koehler illumination) | ○ | ○ | ||
Low position coaxial coarse and fine focusing system, travel range: 28mm, fine precision: 0.002mm, with elastic adjustment device and upper limit device. Double-layer mechanical stage with center pre-set condenser bracket. Stage size: 150mm*140mm. Travel range: 76mm*50mm, precision: 0.1mm (triangle guideway). Slice clips for two slices. Inward quadruple nosepiece. Adaptive wide voltage of 100V-240V with integrated power supply switch and continuously adjustable brightness to make the bulb less prone to be broken. Center pre-set 3W single LED lamp (cold or warm color for option, cold color temperature: 4750K-5500K, warm color temperature: 2850K-3280K) (fixed Koehler illumination) | ○ | ○ | ||
Low position coaxial coarse and fine focusing system, travel range: 28mm, fine precision: 0.002mm, with elastic adjustment device and upper limit device. Double-layer mechanical stage with center pre-set condenser bracket. Stage size: 140mm*132mm. Travel range: 76mm*50mm, precision: 0.1mm. Inward quintuple nosepiece. Adaptive wide voltage of 100V-240V with integrated power supply switch and continuously adjustable brightness to make the bulb less prone to be broken. Center pre-set 3W single LED lamp (cold or warm color for option, cold color temperature: 4750K-5500K, warm color temperature: 2850K-3280K) (fixed Koehler illumination) | ○ | ○ | ||
Low position coaxial coarse and fine focusing system, travel range: 28mm, fine precision: 0.002mm, with elastic adjustment device and upper limit device. Double-layer mechanical stage with center pre-set condenser bracket for infinite optical system. Stage size: 140mm*132mm. Travel range: 76mm*50mm, precision: 0.1mm. Inward quadruple nosepiece. Adaptive wide voltage of 100V-240V with integrated power supply switch and continuously adjustable brightness to make the bulb less prone to be broken. Center pre-set 3W single LED lamp (cold or warm color for option, cold color temperature: 4750K-5500K, warm color temperature: 2850K-3280K) (fixed Koehler illumination) | ○ | ○ | ||
Low position coaxial coarse and fine focusing system, travel range: 28mm, fine precision: 0.002mm, with elastic adjustment device and upper limit device. Double-layer mechanical stage with center pre-set condenser bracket for infinite optical system. Stage size: 150mm*140mm. Travel range: 76mm*50mm, precision: 0.1mm (triangle guideway). Slice clips for two slices. Inward quadruple nosepiece. Adaptive wide voltage of 100V-240V with integrated power supply switch and continuously adjustable brightness to make the bulb less prone to be broken. Center pre-set 3W single LED lamp (cold or warm color for option, cold color temperature: 4750K-5500K, warm color temperature: 2850K-3280K) (fixed Koehler illumination) | ○ | ○ | ||
Low position coaxial coarse and fine focusing system, travel range: 28mm, fine precision: 0.002mm, with elastic adjustment device and upper limit device. Double-layer mechanical stage with center pre-set condenser bracket for infinite optical system. Stage size: 140mm*132mm. Travel range: 76mm*50mm, precision: 0.1mm. Inward quintuple nosepiece. Adaptive wide voltage of 100V-240V with integrated power supply switch and continuously adjustable brightness to make the bulb less prone to be broken. Center pre-set 3W single LED lamp (cold or warm color for option, cold color temperature: 4750K-5500K, warm color temperature: 2850K-3280K) (fixed Koehler illumination), with field diaphragm. | ○ | ○ | ||
Condenser | Abbe condenser NA 1.25 with interface for phase contrast and dark field plug-in plates, center pre-set, lifting with gears. (fixed Koehler illumination) | ● | ● | |
Abbe condenser NA 1.25 with interface for phase contrast and dark field plug-in plates, center adjustable, lifting with gears. | ○ | ○ | ||
Polarizer & Analyzer | Polarizer (Φ45) | ○ | ○ | |
Analyzer | ○ | ○ | ||
Reflector | Reflector | ○ | ○ | |
Filter | Forested glass accessories (used with 2X Infinity Plan Achromatic Objective) | ○ | ○ | |
Blue filter (Φ45) | ○ | ○ | ||
Yellow filter (Φ45) | ○ | ○ | ||
Green filter (Φ45) | ○ | ○ | ||
Neutral filter (Φ45) | ○ | ○ | ||
Dark Field Unit | Dark field unit, for 4X-40X objectives with Koehler illumination | ○ | ○ | |
Phase Contrast Unit | Phase contrast plug set, for 10X, 40X phase contrast objectives (finite) | ○ | ○ | |
Phase contrast plug set, for 20X, 100X phase contrast objectives (finite) | ○ | ○ | ||
Phase contrast plug set, for 10X, 40X phase contrast objectives (infinite) | ○ | ○ | ||
Phase contrast plug set, for 20X, 100X phase contrast objectives (infinite) | ○ | ○ | ||
Adapter | 0.35X C-mount adapter, focus adjustable | ○ | ○ | |
0.5X C-mount adapter, focus adjustable | ○ | ○ | ||
0.65X C-mount adapter, focus adjustable | ○ | ○ | ||
1X C-mount adapter, focus adjustable | ○ | ○ | ||
Digital eyepiece interface | ○ | ○ | ||
Others | Centering telescope (Φ23.2) | ○ | ○ | |
Micrometer for eyepieces, precision: 0.1mm | ○ | ○ | ||
Reticle for eyepieces | ○ | ○ | ||
Micrometer, precision: 0.01mm | ○ | ○ | ||
Internal hexagonal spanner M3 | ○ | ○ | ||
Internal hexagonal spanner M4 | ○ | ○ | ||
Package | Paper box with pearl cotton | ● | ● | |
Note: ●Standard Outfit, ○Optional
System Diagram
Specifications for BestScope BS-2032B Binocular Biological Microscope
| Manufacturer | BestScope |
