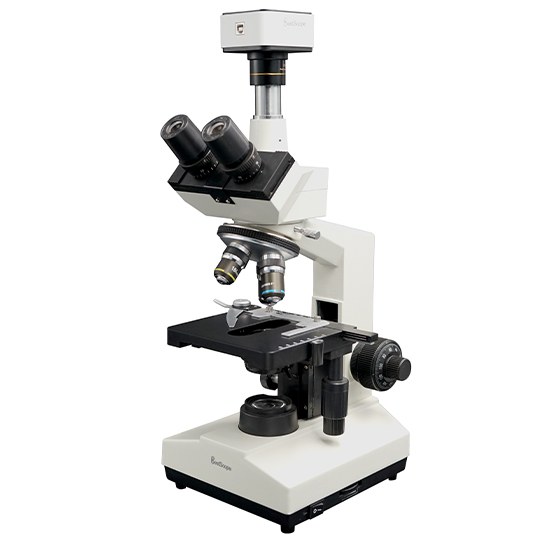

BestScope BS-2030T(500C) Trinocular Digital Biological Microscope

Manufacturer

1.00 E£ 1.00 E£ 1.0 EGP

1.00 E£

This combination does not exist.

With precision machining equipment and advanced alignment technology, BS-2030 series microscopes are classical biological microscopes. These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plug in to the trinocular tube or the eyepiece tube. Rechargeable battery(only for LED illumination) is optional for outdoors operation or places that…
Model: BS-2030T(500C) | Viewing Head: Trinocular Head | Cameras: USB 2.0 5MP | Eyepiece: WF10×/ 18mm | Stage: Double Layer Mechanical Stage | Objective: Achromatic Objective 4×, 10×, 40×, 100× | Nosepiece: Quadruple Nosepiece | Illumination: S-LED Illumination

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

BS-2030T(500C) Trinocular Digital Biological Microscope

Key Details

Model	BS-2030T(500C)
Viewing Head	Trinocular Head
Cameras	USB 2.0 5MP
Eyepiece	WF10×/ 18mm
Stage	Double Layer Mechanical Stage
Objective	Achromatic Objective 4×, 10×, 40×, 100×
Nosepiece	Quadruple Nosepiece
Illumination	S-LED Illumination

Features

1.Classic biological microscope with sliding head;

2.5.0MP digital camera with fast speed and vivid images;

3.Compact and flexible, ideally suited for desktop, laboratory worktable;

4.Interpupillary distance can be adjusted to fit for observation;

5.Support Windows Vista / Win 7 / Win8 / Win 10 / Mac Operation System. The software can preview, take photos and video, do image processing and measurement;

6.Support Multi-language (English, Chinese, Korean, Italian, Polish, French, Japanese, Portuguese, Germany, Russian).

Application

This digital biological microscope is an ideal instrument in biological, histological, pathological field and can be widely used in medical and sanitary establishments, clinics, veterinary clinics, laboratories, institutes, academic laboratories, colleges and universities.

Specification

Item	Specification	BS-2030T(500C)
Viewing Head	Sliding Trinocular Head, inclined at 45 º and 360 º Rotatable, interpupillary distance 55-75mm, Anti-mould.	●
Cameras	Sensor Model: Sony, IMX335LQN-C, rolling shutter	●
	Color/Mono: Color	●
	Sensor Size: 1/2.8″	●
	Pixel Size: 2.0 μmx2.0μm	●
	Resolution: 5MP, 2560×1920	●
	Data Interface: USB2.0	●
	Lens Interface: C-mount	●
	Frame Rate: 22fps	●
Eyepiece	Wide Field Eyepiece WF10×/ 18mm	●
Eyepiece	Wide Field Eyepiece WF16×/ 11mm	○
Nosepiece	Quadruple Nosepiece	●
Nosepiece	Quintuple Nosepiece	○
Objective	Achromatic Objective 4×, 10×, 40×, 100×	●
	Achromatic Objective 20×, 60×	○
	Semi-Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×	○
	Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×	○
Total magnifications	With 10x eyepiece: 40×, 100×, 400×, 1000×	●
Total magnifications	With 16x eyepiece: 64×, 160×, 640×, 1600×	○
Stage	Double Layer Mechanical Stage 140×140mm/ 75×50mm	●
Stage	Left hand operation Double Layer Mechanical Stage 140×140mm/ 75×50mm	○
Focus	Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm	●
Condenser	Abbe NA 1.25 with Iris Diaphragm & Filter	●
Illumination	S-LED Illumination, Brightness Adjustable	●
	6V/20W Halogen light, Brightness Adjustable	○
	Plan-concave Mirror	●
Body / Energy	Firm Aluminum Body and built in power supply 110-240V	●
Supplied with	Dust cover, immersion oil and user manual	●
Polarization Set	Simple Polarization Set	○
Phase Contrast Kit	Simple phase contrast kit	○
	Sliding phase contrast kit	○
	Turret phase contrast kit	○
Dark Field Attachment	Dark Field Attachment (Dry) NA0.9	○
Dark Field Attachment	Dark Field Attachment (Oil) NA1.25-1.36	○
Fluorescent Attachment	YX-2B Fluorescent Attachment	○
Battery	Rechargeable battery (only for LED illumination)	○
Package	1pc/carton, 33cm×28cm×44cm×, 7kg	●

Note: ●Standard Outfit, ○ Optional
