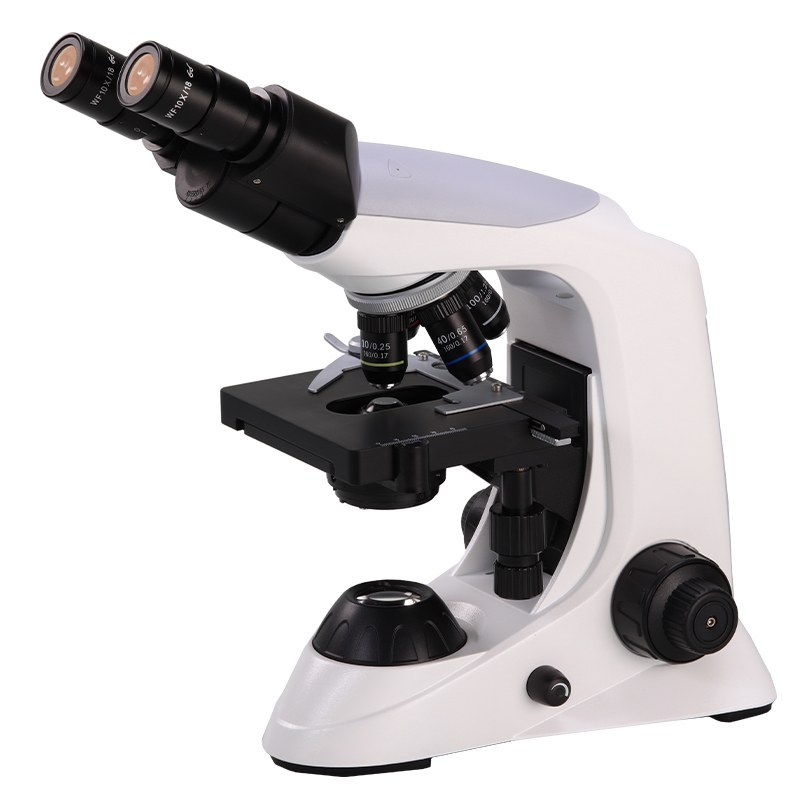

BestScope BS-2028B Binocular Biological Microscope

Manufacturer

1.00 E£ 1.00 E£ 1.0 EGP

1.00 E£

This combination does not exist.

BS-2028B microscope is specially designed for college education, medical, and laboratory study, supporting monocular, binocular, and trinocular. It adopts a beautiful structure and ergonomic design. With an innovative optical and structural design, excellent optical performance, and an easy-to-operate system, this biological microscope makes your work enjoyable.
Model: BS-2028B | Viewing Head: Binocular | Eyepiece: WF10X | Objective: 4X, 10X, 40X, 100X | Nosepiece: Backward Quadruple | Condenser: NA 1.25 Abbe Condenser | Illumination: 3W LED

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

BS-2028B Binocular Biological Microscope

Key Details

Model	BS-2028B
Viewing Head	Binocular
Eyepiece	WF10X
Objective	4X, 10X, 40X, 100X
Nosepiece	Backward Quadruple
Condenser	NA 1.25 Abbe Condenser
Illumination	3W LED

Features

1.Grace and new modeling

Drop-style integrated appearance design, looks elegant.

2.Viewing head

Brand new and humanized butterfly binocular head-tubes can be 360° rotated to raise observing height 44mm than normal tubes to be more convenient for users with different height.

3.Stability

Unique viewing head and integrative stand to ensure stability.

4.Power supply

5V-12V low voltage input to ensure safe use. Built-in LED illumination system which can be powered with power bank, laptop and vehicle power supply ensures being used anywhere and any condition.

5.Objectives

Unique and innovative low power light-reducing objective (Optional) ensures high power and low power objectives interconverted without light adjustment.

6.Storage bin

Humanized storage bin on the stand back makes moving and items storage more convenient.

7.Observing window

Observing window ensures objective magnification can be watched from back.

Specification

Item	Specification		BS-2028M	BS-2028B	BS-2028T
Optical System	Color Corrected Finite Optical System		●	●	●
Viewing Head	Inclined 30° monocular tube		●
	Inclined 30° binocular tube, 360° rotatable, interpupillary distance: 48-75mm		●
	Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 48-75mm, splitting ratio: eyepiece: trinocular=20:80		●
Eyepiece	Wide field eyepiece WF10X/18mm (pointer is optional)		●	●	●
	Wide field eyepiece WF16X/13mm		○	○	○
	Wide field eyepiece WF10X/18mm, with reticule 0.1mm		○	○	○
	Wide field eyepiece WF10X/18mm, adjustable, with reticule 0.1mm		○	○	○
Infinite Objective	Achromatic Objectives	4X/ NA 0.10	●	●	●
		10X/ NA 0.25	●	●	●
		20X/ NA 0.40	○	○	○
		40X/ NA 0.65 (S)	●	●	●
		60X/ NA 0.80 (S)	○	○	○
		(Oil) 100X/NA 1.25 (S)	●	●	●
	Plan Achromatic Objectives	4X/ NA 0.10	○	○	○
		10X/ NA 0.25	○	○	○
		40X/ NA 0.65 (S)	○	○	○
		(Oil) 100X/ NA 1.25 (S)	○	○	○
Nosepiece	Backward Quadruple Nosepiece		●	●	●
Mechanical Stage	Stage size: 125mm115mm. Travel: 35mm75mm.		●	●	●
Condenser	Abbe condenser NA 1.25 with iris diaphragm		●	●	●
Focusing	Coaxial coarse and fine focusing knob, coarse focusing travel range: 25mm, fine division: 2µm		●	●	●
Illumination	3W LED lamp		●	●	●
Dark Field Unit	Dark Field Ring, used for 4X-40X objectives		○	○	○
C-mount	0.5X C-mount adapter, adjustable focus		○	○	○
C-mount	1X C-mount adapter		○	○	○

Note: ●Standard Outfit, ○Optional

Packing Size: 435mm*380mm*275mm, Gross Weight: 5.8 kgs, Net Weight: 4.4 kgs

Application

The BS-2028B microscope is an ideal instrument for biological, histological, pathological, bacteriological, immunization, and pharmacy fields. It can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges, and universities.
