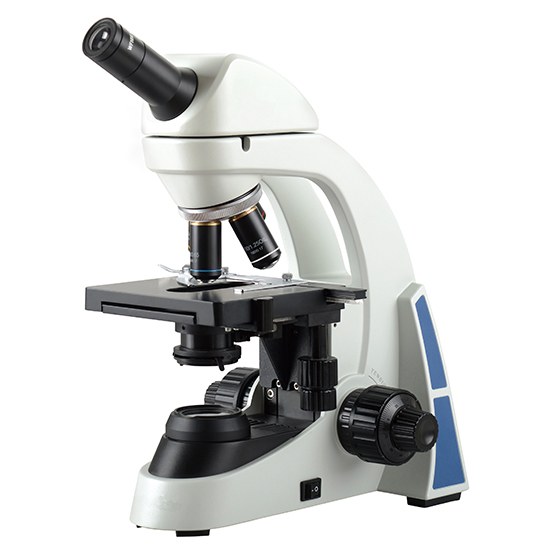

BestScope BS-2027M Monocular Biological Microscope
BS-2027 series biological microscopes come with elaborate appearance and reliable quality, beautiful and practical. These microscopes adopt LED illumination and ergonomics design, comfortable for observation.The frame is lightweight but stable, easy to carry. BS-2027 series microscopes are compact and solid, innovative frame High rigid but small, specially designed for students. The easy operation and clear image inspire students’ imagination…
Model: BS-2027M | Viewing Head: Monocular Head | Eyepiece: PL10×/18mm | Objective: Achromatic Objective | Nosepiece: Backward Quadruple Nosepiece | Stage: 132mm×140mm | Condenser: NA 1.25 Abbe Condenser | Illumination: 3W LED
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BS-2027M Monocular Biological Microscope
BS-2027 series biological microscopes come with elaborate appearance and reliable quality, beautiful and practical. These microscopes adopt LED illumination and ergonomics design, comfortable for observation.The frame is lightweight but stable, easy to carry. BS-2027 series microscopes are compact and solid, innovative frame High rigid but small, specially designed for students. The easy operation and clear image inspire students’ imagination and interesting of microscopy world, which is helpful to explore the mystery of life science. New generation of scientists are born from here!These microscopes are widely used in educational, academic, agricultural and study field. Rechargeable battery compartment is optional for outdoors operation or places that power supply is not stable.
Key Details
| Model | BS-2027M |
| Viewing Head | Monocular Head |
| Eyepiece | PL10×/18mm |
| Objective | Achromatic Objective |
| Nosepiece | Backward Quadruple Nosepiece |
| Stage | 132mm×140mm |
| Condenser | NA 1.25 Abbe Condenser |
| Illumination | 3W LED |
Features
1.Comfortable operation with ergonomic design, easy to handle by students.
2.Rechargeable LED illumination system is optional, the microscopes can work when there is no power supply.
3.External power supply, safe and easy to maintain.
4.Compact and flexible, ideally suited for desktop, laboratory worktable.
Application
BS-2027 series microscopes are ideally suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in schools, clinics, hospitals, academic labs and scientific research department.
Specification
Item | Specification | BS-2027M | BS-2027B | BS-2027T | |
Optical System | Finite Optical System | ● | ● | ● | |
Viewing Head | Monocular Head, Inclined at 30°, 360° Rotatable, with locking mechanism for eyepieces | ● | |||
Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, with locking mechanism for eyepieces, ±5 diopter adjustment on left tube, Interpupillary Distance 50-75mm | ● | ||||
Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, with locking mechanism for eyepieces, ±5 diopter adjustment on left tube, Interpupillary Distance 50-75mm, Light Distribution Eyepiece: Trinocular=80:20 | ● | ||||
Eyepiece | Wide field plan eyepiece PL10×/18mm | ● | ● | ● | |
Wide field plan eyepiece PL10×/18mm with pointer | ○ | ○ | ○ | ||
Wide field plan eyepiece PL10×/18mm with eyepiece micrometer | ○ | ○ | ○ | ||
Objective | Achromatic Objective | 4×/0.10, WD=21.50mm | ● | ● | ● |
10×/0.25, WD=6.26mm | ● | ● | ● | ||
40×(S)/0.65, WD=0.48mm | ● | ● | ● | ||
100×(S,Oil)/1.25, WD=0.15mm | ● | ● | ● | ||
Plan Achromatic Objective | 4×/0.10, WD=15.09mm | ○ | ○ | ○ | |
10×/0.25, WD=8.57mm | ○ | ○ | ○ | ||
20×/0.40, WD=8.72mm | ○ | ○ | ○ | ||
40×(S)/0.65, WD=0.38mm | ○ | ○ | ○ | ||
100×(S,Oil)/1.25, WD=0.09mm | ○ | ○ | ○ | ||
Nosepiece | Backward Quadruple Nosepiece | ● | ● | ● | |
Stage | 132mm×140mm double layers mechanical stage, moving range: 50mm×6mm, precision: 0.1mm. | ● | ● | ● | |
Focusing | Low-position coarse and fine adjustment with stop and tighten structure, moving range: 25mm, fine precision 0.002mm | ● | ● | ● | |
Condenser | NA 1.25 Abbe condenser with iris diaphragm and filter holder | ● | ● | ● | |
Illumination | 3W LED (cold color temperature or warm color temperature is optional, cold color temperature 4750K-5500K, warm color temperature 2850K-3250K), center presetting, intensity adjustable, external wide voltage AC adapter, 100V-240V_AC50/60Hz input, DC6V 2A output. | ● | ● | ● | |
3W LED (cold color temperature or warm color temperature is optional, cold color temperature 4750K-5500K, warm color temperature 2850K-3250K), center presetting, intensity adjustable, with rechargeable battery compartment(for 4pcs Ni-MH AA battery, battery not included), external wide voltage AC adapter, 100V-240V_AC50/60Hz input, DC6V 1A output. | ○ | ○ | ○ | ||
C-mount Adapter | 0.35× C-mount (Adjustable) | ○ | |||
0.5× C-mount (Adjustable) | ○ | ||||
0.65× C-mount (Adjustable) | ○ | ||||
1× C-mount (Adjustable) | ○ | ||||
Trinocular tube 23.2mm for digital eyepiece | ○ | ||||
Packaging | 1pc/carton, 51cm*30cm*58cm, GW:10kgs, NW: 8kgs | ● | ● | ● | |
Note: ● Standard Outfit, ○ Optional
Specifications for BestScope BS-2027M Monocular Biological Microscope
| Manufacturer | BestScope |
