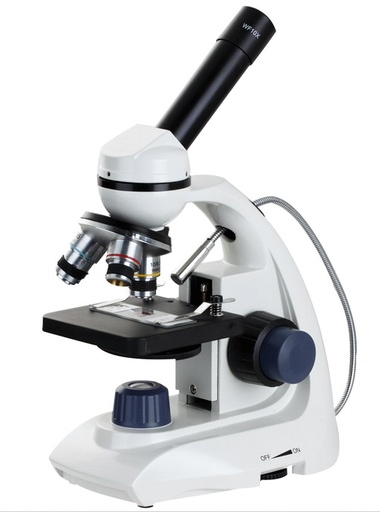

BOECO Student Microscope BM-117
BOECO Student Microscope BM-117 (BOECO, Germany).
- Optical System: Binocular or Monocular Head, 30° inclined, 360° rotatable, interpupillary distance 48 -75 mm
- Nosepiece: Backward Quadruple revolving nosepiece
- Eyepiece: Widefield Eyepiece WF 10X /18 mm
- Objectives: Achromatic DIN Objectives 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1.25, Oil, (S)
- Stage: Double Layers mechanical stage 132 x 142 mm, moving range 75 x 40 mm
- Focusing: Coaxial Coarse & Fine Adjustment System Range 24 mm, Fine Division 0,004 mm
Available in 4 versions plus 9 accessories.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Specification – Model Model BM-117
| Optical System | Binocular or Monocular Head, 30° inclined, 360° rotatable, interpupillary distance 48 -75 mm |
| Nosepiece | Backward Quadruple revolving nosepiece |
| Eyepiece | Widefield Eyepiece WF 10X /18 mm |
| Objectives | Achromatic DIN Objectives 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1.25, Oil, (S) |
| Stage | Double Layers mechanical stage 132 x 142 mm, moving range 75 x 40 mm |
| Focusing | Coaxial Coarse & Fine Adjustment System Range 24 mm, Fine Division 0,004 mm |
| Condenser | Abbe Condenser, n.A. 1,2, with iris diaphragm and filter |
| Illumination | S-LED, light brightness adjustable |
| Body / power | Sturdy body with supportive rubber and inbuilt power supply 110-240V, 50/60Hz |
| Supplied with | Dust cover, green filter, spare fuses, Immersion oil |
| Dimensions | 170 x 310 x 355 mm, netweight 5,4 / 5,0 kgs |
| Packing | Styrofoam shelve in a cardboard box |
Ordering Information
Microscope
| Code | Description | Head | Plug |
|---|---|---|---|
| BOE 1170.100 | BM-117 | Binocular | Euro |
| BOE 1170.101 | BM-117 | Binocular | US |
| BOE 1170.110 | BM-117 | Monocular | Euro |
| BOE 1170.111 | BM-117 | Monocular | US |
Eyepieces for BM-190, BM-180, BM-120, BM-117, N-10
| Code | Description |
|---|---|
| BOE 1800.301 | Wide Field Eyepiece WF 10x, pc. |
| BOE 1800.302 | Wide Field Eyepiece WF 10x with Pointer, pc. |
| BOE 1800.303 | Wide Field Eyepiece WF 10x with 0,1 Micrometer, pc. |
| BOE 1800.304 | Eyepiece P 16x, pc. |
Accessories
| Code | Description |
|---|---|
| BOE 1800.403 | BOECO DIN Achromatic Objective 4X |
| BOE 1800.402 | BOECO DIN Achromatic Objective 10X |
| BOE 1800.409 | BOECO DIN Achromatic Objective 20X |
| BOE 1800.404 | BOECO DIN Achromatic Objective 40X (S) |
| BOE 1800.406 | BOECO DIN Achromatic Objective 100X (S) (Oil) |
Source: BOECO Germany
Specifications for BOECO Student Microscope BM-117
| Item | Microscope or Wide Field Eyepiece WF 10x or Wide Field Eyepiece WF 10x with Pointer or Wide Field Eyepiece WF 10x with 0,1 Micrometer or Eyepiece P 16x or BOECO DIN Achromatic Objective 4X or BOECO DIN Achromatic Objective 10X or BOECO DIN Achromatic Objective 20X or BOECO DIN Achromatic Objective 40X (S) or BOECO DIN Achromatic Objective 100X (S) (Oil) |
| Model | Accessories or BM-117, Binocular, Euro plug or BM-117, Binocular, US plug or BM-117, Monocular, Euro plug or BM-117, Monocular, US plug |
| Manufacturer | BOECO |
