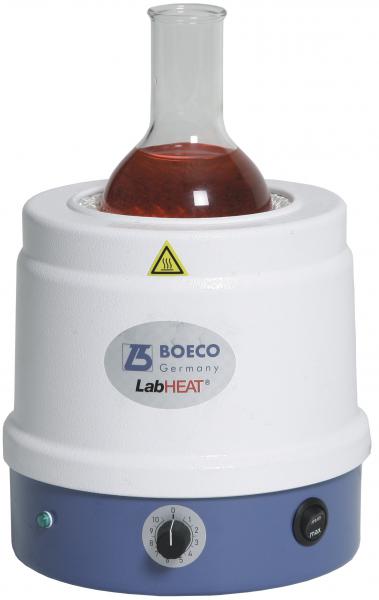

BOECO LabHEAT Heating Mantles KM-ME Series
BOECO LabHEAT Heating Mantles KM-ME Series for operating temperatures up to 450 °C
for glass flasks, round bottom up to 20 L.
flexible glass yarn heating element
plastic coated metal housing
thermally insulated and grounded
predrilled threaded hole on rear allows connection of the clamp KM-SK (accessory)

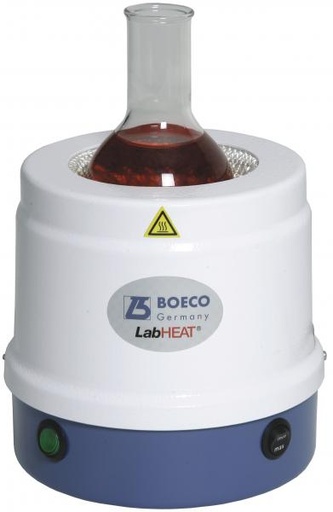

designed identical to series KM-M, but in addition equipped with a built
in heating-zone switch and a power controller which allows a continuous
adjustment of the heater power
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
- for operating temperatures up to 450 °C
- for glass flasks, round bottom up to 20 L.
- flexible glass yarn heating element
- plastic coated metal housing
- thermally insulated and grounded
- predrilled threaded hole on rear allows connection of the clamp KM-SK (accessory)
- designed identical to series KM-M, but in addition equipped with a built in heating-zone switch and a power controller which allows a continuous adjustment of the heater power
Models & order numbers
| Volume ml/l | Flask ø mm | Power W | Heating zones | Order No. 220V AC |
|---|---|---|---|---|
| 50 ml | 51 | 55 | 1 | BOE 92000050 |
| 100 ml | 64 | 100 | 1 | BOE 92000100 |
| 250 ml | 85 | 150 | 2 | BOE 92000250 |
| 500 ml | 105 | 200 | 2 | BOE 92000500 |
| 1 L | 131 | 300 | 2 | BOE 92001000 |
| 2 L | 166 | 500 | 2 | BOE 92002000 |
| 3 L | 185 | 600 | 2 | BOE 92003000 |
| 4 L | 207 | 750 | 2 | BOE 92004000 |
| 5 L | 223 | 860 | 2 | BOE 92005000 |
| 6 L | 236 | 1000 | 2 | BOE 92006000 |
| 10 L | 279 | 1400 | 2 | BOE 92010000 |
| 20 L | 345 | 2000 | 2 | BOE 92020000 |
Source: BOECO Germany – https://www.boeco.com/boeco-labheat-km-me-series&sk=93
Accessories
Select the accessory from the Item / Model option above to see its catalogue code.
| Code | Description |
|---|---|
| BOE 970000001 | Support clamp KM-SK for attaching metal-cased heating mantles to a support rod or support wall |
Specifications for BOECO LabHEAT Heating Mantles KM-ME Series
| Lab. Equipment and supplies | |
|---|---|
| Capacity | 50 ml or 100 ml or 250 ml or 500 ml or 1 L or 2 L or 3 L or 4 L or 5 L or 6 L or 10 L or 20 L or Accessories |
| Uncategorized | |
| Item | Heating mantle or Support clamp KM-SK for attaching metal-cased heating mantles to a support rod or support wall |
| Manufacturer | BOECO |
