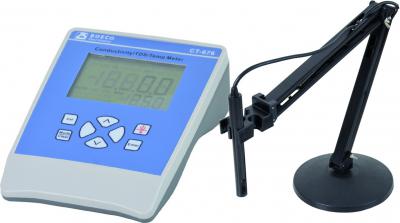

BOECO Bench Top Conductivity - CT-676
BOECO Bench Top Conductivity - CT-676 Simultaneous displays of conductivity, salinity or TDS with temperature measurements.
Convenient one point calibration. Calibration data is stored in memory and is ready for use on power up.
Adjustable TDS coefficient, reference temperature and temperature coefficient
Uses one conductivity cell for conductivity, salinity and TDS measurement
Accepts 4-wire conductivity cells with k=0,475 cell constant and 2-wire K=0,1 cell constant for improved flexibility and accuracy
Low battery indicator
IP54 waterproof case
The CT-676 will be delivered incl. the following standard accessories:
1 x 4-wire conductivity cell 3020P with k=0,475,
6 x 1,5V AAA batteries,
1 x operating manual,
1 x flexible electrode holder
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Conductivity K = 0,475
| Range | Resolution | Accuracy |
|---|---|---|
| 0,0 to 475 µS/cm | 0,1 µS/cm | ±1% of reading +2 µS/cm |
| 475 to 4750 µS/cm | 1 µS/cm | ±1% of reading +5 µS/cm |
| 4,75 to 47,50 mS/cm | 0,01 mS/cm | ±1% of reading +0,05 mS/cm |
| 47,5 to 200,0 mS/cm | 0,1 mS/cm | ±2,5% of reading +0,5 mS/cm |
Conductivity K = 0,1
| Range | Resolution | Accuracy |
|---|---|---|
| 0,00 to 99,99 µS/cm | 0,01 µS/cm | ±1% of reading |
| 100 to 200 µS/cm | 0,1 µS/cm | 0,1 µS/cm |
Salinity
| Range | Resolution | Accuracy |
|---|---|---|
| 0,0 to 70,0 ppt | 0,1 ppt | ± 0,2 % Full Scale |
Temperature
| Range | Resolution | Accuracy |
|---|---|---|
| -10,0 to 90,0 °C | 0,1 °C | ±0,2 % or ±4% Full Scale whichever is greater |
Specification
| Reference Temp.: | From 15,0 to 25,0 °C, default is 25,0 °C |
| Temperature Coefficient: | From 0,00 to 4,00 °C, default is 1,91 °C |
| TDS Constant: | From 0,30 to 1,00, default is 0,65 |
| Cell Constant | 4 wire conductivity cell: K = 0,475 |
| ATC | Thermistor, 10K ohms, at 25 °C |
| Power Requirement: | 6 x 1,5 Volt AAA batteries or AC adaptor |
| Dimensions (LxWxH): | 150 x 203 x 72 mm |
| Weight: | 0,54 kg (6 x 1,5 V AAA Batteries included) |
Ordering information
| Code | Description |
|---|---|
| BOE 5196760 | Bench Top Coductivity/Salinity/TDS/Temperature Meter, Model CT-676 with 4-wire Conductivity Cell 3020P with 6 PIN connector, K=0,475 (50 µS - 200 mS/cm), with EURO plug |
| BOE 5196761 | Idem, with US plug AC adaptor |
Optional Conductivity Cell
| Code | Description |
|---|---|
| BOE 5190109 | 2-wire Conductivity Cell 109P with 6 PIN connector, K=0,1 (0,0 - 200,0 µS/cm) |
Source: BOECO Germany – https://www.boeco.com/boeco-bench-top-conductivity-tds-salinity-temp-met&sk=329
Specifications for BOECO Bench Top Conductivity - CT-676
| Manufacturer | BOECO |
