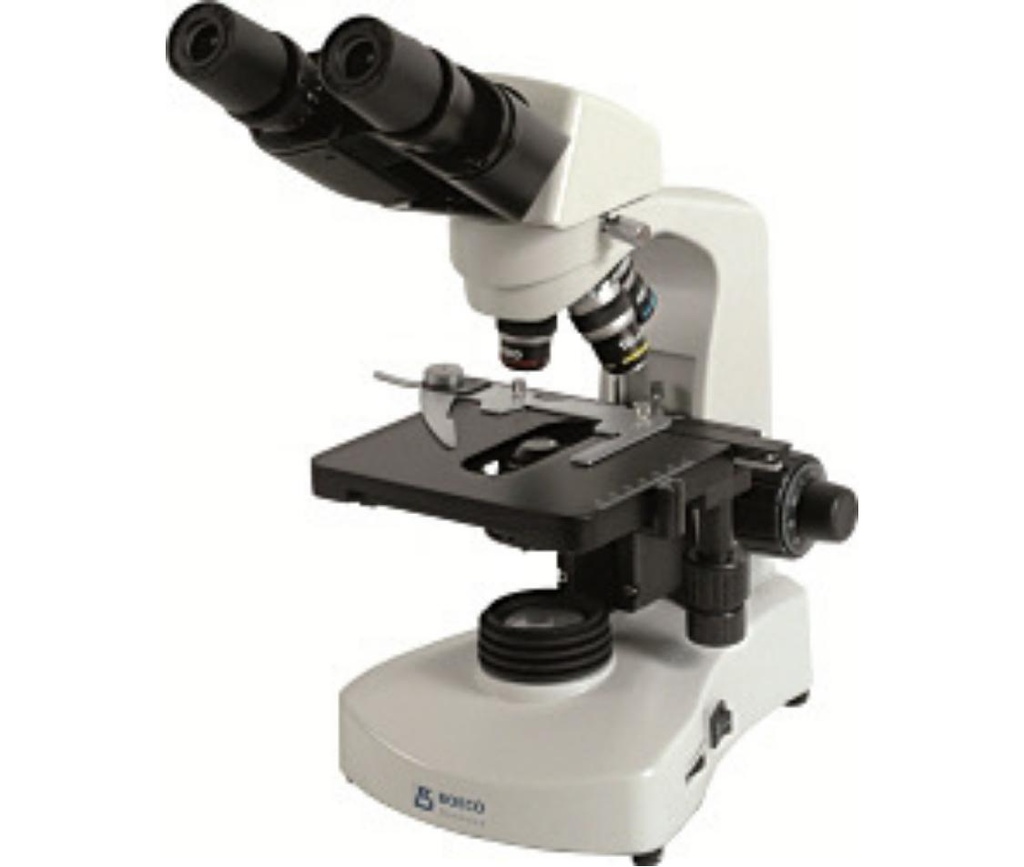

BOECO Student Microscope BM-117
BOECO student microscope, model BM-117 (Germany).
- Binocular or monocular 30 inclined head, 360 rotatable, interpupillary distance 48-75 mm
- Backward quadruple nosepiece with achromatic DIN objectives 4x / 10x / 40x(S) / 100x oil(S)
- Widefield eyepiece WF 10X/18 mm
- Double layers mechanical stage 132 x 142 mm, coaxial coarse & fine focusing (0.004 mm)
- Abbe condenser n.A. 1.2 with iris diaphragm and filter
- Adjustable S-LED illumination, built-in 110-240V power supply
Available in 4 codes: binocular / monocular, Euro / US plug.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BOECO student microscope model BM-117 – a robust routine microscope for schools, teaching laboratories and routine clinical work.
Specification – Model BM-117
| Optical System | Binocular or Monocular head, 30° inclined, 360° rotatable, interpupillary distance 48 - 75 mm |
| Nosepiece | Backward quadruple revolving nosepiece |
| Eyepiece | Widefield eyepiece WF 10X / 18 mm |
| Objectives | Achromatic DIN objectives 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1.25 Oil (S) |
| Stage | Double layers mechanical stage 132 x 142 mm, moving range 75 x 40 mm |
| Focusing | Coaxial coarse & fine adjustment system, range 24 mm, fine division 0.004 mm |
| Condenser | Abbe condenser, n.A. 1.2, with iris diaphragm and filter |
| Illumination | S-LED, light brightness adjustable |
| Body / Power | Sturdy body with supportive rubber and inbuilt power supply 110-240V, 50/60Hz |
| Supplied with | Dust cover, green filter, spare fuses, immersion oil |
| Dimensions | 170 x 310 x 355 mm, net weight 5.4 / 5.0 kg |
| Packing | Styrofoam shelve in a cardboard box |
Ordering Information
| Code | Model | Head | Plug |
|---|---|---|---|
| BOE 1170.100 | BM-117 | Binocular | Euro |
| BOE 1170.101 | BM-117 | Binocular | US |
| BOE 1170.110 | BM-117 | Monocular | Euro |
| BOE 1170.111 | BM-117 | Monocular | US |
Related accessories: B-CAM Microscope Cameras · Objectives for BM-120 and BM-117 (Model 10)
Specifications for BOECO Student Microscope BM-117
| Manufacturer | BOECO |
