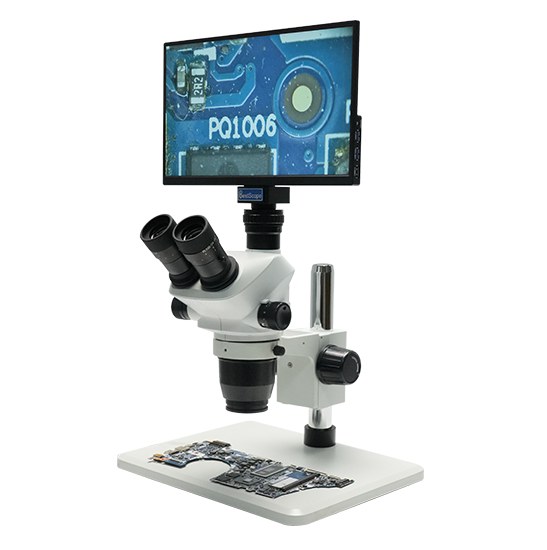

BestScope BLM5-343 LCD Digital Zoom Stereo Microscope
IntroductionAdopted Greenough optical system, BLM5-343 LCD Digital Microscope comes with compact structure, high quality optics and reliable illuminations. It is a good choice for inspection of electronic components and PCB board in industrial field, they are also available for scientific research, education and antiques identification etc. Optional auxiliary objectives device can expand the applications to meet various requirements.BLM5-343…
Model：: BLM5-343 | Eyepiece: PL10X/24mm | Zoom Objective: 0.65X-5.2X | Zoom Ratio: 1:8 | Working Distance: 118mm | Auxiliary objective: 1X
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BLM5-343 LCD Digital Zoom Stereo Microscope
IntroductionAdopted Greenough optical system, BLM5-343 LCD Digital Microscope comes with compact structure, high quality optics and reliable illuminations. It is a good choice for inspection of electronic components and PCB board in industrial field, they are also available for scientific research, education and antiques identification etc. Optional auxiliary objectives device can expand the applications to meet various requirements.BLM5-343 adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.BLM5-343 is a combination of BS-3043BT and BLC-480B all-in-one camera.
Key Details
| Model： | BLM5-343 |
| Eyepiece | PL10X/24mm |
| Zoom Objective | 0.65X-5.2X |
| Zoom Ratio | 1:8 |
| Working Distance | 118mm |
| Auxiliary objective | 1X |
Features
1.Eyepiece
The wide field plan eyepiece with 24mm wide field, diopter adjustable.
2.Splitting ratio
Trinocular viewing head with splitting ratio of 0:100 or 100:0. There is also a trinocular viewing head with the splitting ratio of 40:60 for option.
3.Zoom handwheel
Zoom range: 0.65X-5.2X, zoom ratio: 1:8. Excellent ergonomic design of handwheel.
4.Zoom Mode Switching
Twist counterclockwise to achieve continuous zoom function of the handwheel. Clockwise twist to achieve the function of the handwheel that zoom magnification with stop on major magnification.
5.All-in-one camera
BLM5-343 adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.
Application
BLM5-343 LCD Digital Microscope is widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing and in the medical, forensic science and veterinary industries. The microscopes can be used for circuit board repair and inspection, semiconductor inspection, SMT work, electronics inspection, dissection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.
Specification
Item | Specification | BLM5-343 | |
Optical System | Greenough optical system | ● | |
LCD Digital Camera | BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. | ● | |
Viewing Head | Trinocular head, 45° inclined, interpupillary distance: 52-76mm, splitting ratio: 0:100 or 100:0 | ● | |
Trinocular head, 45° inclined, interpupillary distance: 52-76mm, splitting ratio: 40:60. | ○ | ||
Eyepiece | Wide field plan eyepiece PL10X/24mm | ● | |
Objectives | Zoom Objective | 0.65X-5.2X | ● |
Auxiliary Objective | 0.5X | ○ | |
0.7X | ○ | ||
1X | ● | ||
2X | ○ | ||
Zoom Ratio | 1:8 | ● | |
Working Distance | 118mm | ● | |
Head Mount | 76mm | ● | |
Stand & Base | BSZ-B11 Round column and large base with coarse focusing arm, column height: 240mm, column diameter: Φ32mm, base size: 320mm*260mm*16mm. | ● | |
Adapter | 0.35X C-mount adapter | ○ | |
0.45X C-mount adapter | ○ | ||
0.5X C-mount adapter | ● | ||
Note: ● Standard Outfit, ○ Optional
Order Code | Sensor & Size (mm) | Pixel (μm) | G Sensitivity Dark Signal | FPS/Resolution ADC | Binning | Exposure |
BLM5-343 | Sony IMX678(C) | 2.0×2.0 | 1364mv with 1/30s | 30@3840*2160 | 1×1 | 0.04~1000 |
Order Code | Video Saving (FPS/Resolution) | HDMI2.0 (FPS/Resolution) | USB2.0 (FPS/Resolution) | WiFi (FPS/Resolution) |
BLM5-343 | 30@3840*2160 | 30@3840*2160 | 30@3840*2160 | 30@3840*2160 |
Optical Parameters
Auxiliary Objectives | 0.5X | 1X (Built-in) | 2X | ||||
Working Distance | 218mm | 118mm | 42mm | ||||
10X/24mm Eyepiece | Total Magnification | 3.25X | 26X | 6.5X | 52X | 13X | 104X |
Field of View | 73.85mm | 9.23mm | 36.92mm | 4.62mm | 18.46mm | 2.31mm | |
Sample Image
Specifications for BestScope BLM5-343 LCD Digital Zoom Stereo Microscope
| Manufacturer | BestScope |
