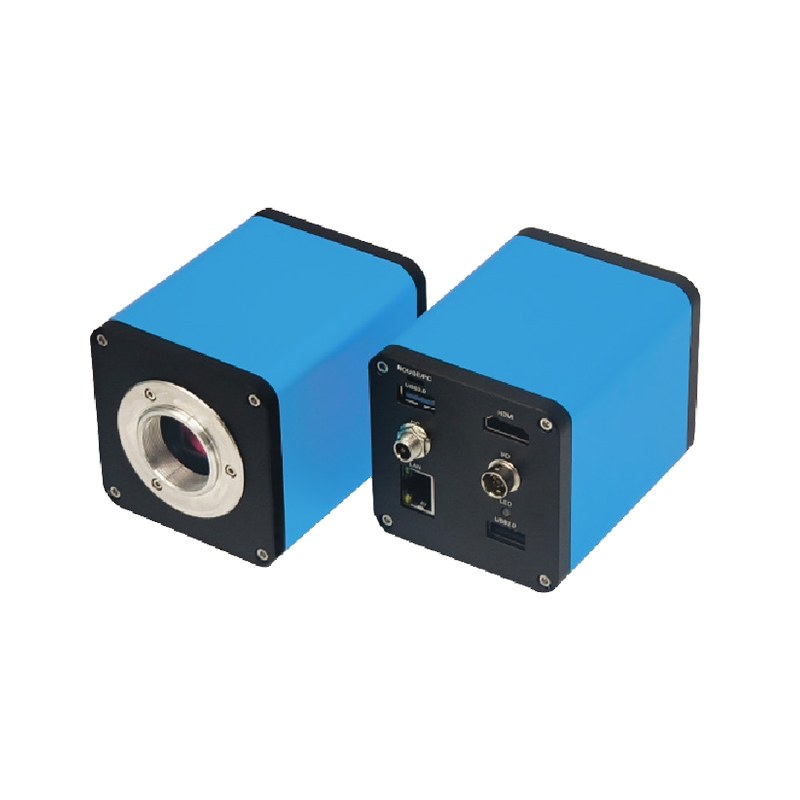

BestScope BHLC1-AF800C Multi-Output Auto Focus Camera
BHLC1-AF800C Multi-Output Auto Focus Camera provides high resolution images and videos with 4K HDMI/ LAN/ USB 3.0 multi-interface output.
Model: BHLC1-AF800C | Sensor Size(mm): 1/1.8” | Sensor Type: CMOS | Pixel(μm): 3.75x3.75 | Focusing: Auto | Resolution: 3840*2160
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BHLC1-AF800C Multi-Output Auto Focus Camera
BHLC1-AF800C Multi-Output Auto Focus Camera provides high resolution images and videos with 4K HDMI/ LAN/ USB 3.0 multi-interface output.
Key Details
| Model | BHLC1-AF800C |
| Sensor Size(mm) | 1/1.8” |
| Sensor Type | CMOS |
| Pixel(μm) | 3.75x3.75 |
| Focusing | Auto |
| Resolution | 3840*2160 |
Features
1.Exmor/ Starvis back illuminated CMOS sensor.
2.4K/ 1080P HDMI 60fps output adaptive switching.
3.Global invention patents and an automatic focusing system through a mobile image sensor.
3.Support multiple control interfaces such as hard trigger, mouse, foot pedal, keypad, keyboard, etc.
5.Embedded software is used to control the camera, with built-in functions such as measurement and image comparison.
6.Images and videos are saved to USB flash drive, supporting local preview and playback.
7.Powerful ISP functionality, excellent HDR, noise reduction and digital amplification capabilities.
8.Support secondary development, custom logo, providing SLView professional intelligent analysis software
Specification
Order Code | Focusing | Sensor Size | Pixel (μm) | Shutter | Resolution | Frame Rate |
BHLC1-AF500C | Auto | 1/1.8” | 2.9 | Rolling | 2592*1944 | HDMI: 5M@30fps/ 1080P@60fps USB: 5M@30fps/ 1080P@30fps LAN: 5M@30fps/ 1080P@30fps |
BHLC1-AF800C | Auto | 1/1.8” | 3.75 | Rolling | 3840*2160 | HDMI: 4K@60fps/ 1080P@60fps USB: 4K@30fps/ 1080P@60fps LAN: 4K@30fps/ 1080P@60fps |
BHLC1-AF1200C | Auto | 1/1.7” | 2.9 | Rolling | 4000*3000 | HDMI: 4K@30fps USB 3.0: 12M@20fps LAN: 12M@20fps |
Order Code | Sensor Type | Interface | Power Supply | Output Interface | Storage |
BHLC1-AF500C | CMOS | C-mount | DC 12V | HDMI/ LAN/ USB | USB disk/ PC/ RAM |
BHLC1-AF800C | CMOS | C-mount | DC 12V | HDMI/ LAN/ USB | USB disk/ PC/ RAM |
BHLC1-AF1200C | CMOS | C-mount | DC 12V | HDMI/ LAN/ USB | USB disk/ PC/ RAM |
Dimension
Specifications for BestScope BHLC1-AF800C Multi-Output Auto Focus Camera
| Manufacturer | BestScope |
