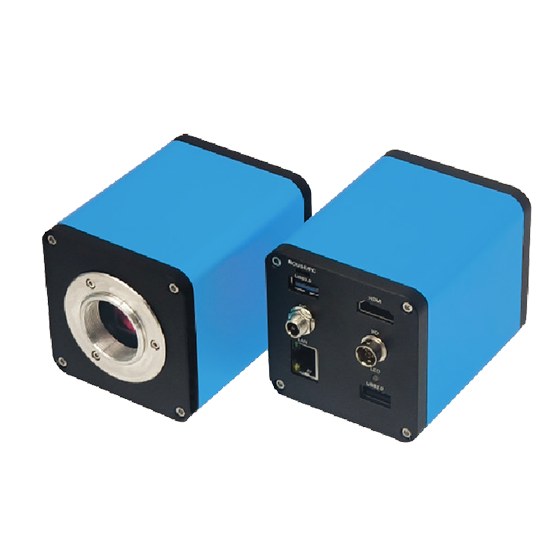

BestScope BHC5C-AF1200C Multi-Output Auto Focus Camera
IntroductionBHC5C Series Multi-Output Auto Focus Camera provide high resolution images and videos with 4K HDMI/ LAN/ USB 3.0 multi-interface output.
Model: BHC5C-AF1200C | Sensor Size(mm): 1/1.7” | Pixel(μm): 2.9 | Resolution: 4000*3000 | HDMI Frame Rate: 4K@30fps | USB Frame Rate: 12M@20fps | LAN Frame Rate: 12M@20fps | Storage: USB disk/ PC/ RAM
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BHC5C-AF1200C Multi-Output Auto Focus Camera
IntroductionBHC5C Series Multi-Output Auto Focus Camera provide high resolution images and videos with 4K HDMI/ LAN/ USB 3.0 multi-interface output.
Key Details
| Model | BHC5C-AF1200C |
| Sensor Size(mm) | 1/1.7” |
| Pixel(μm) | 2.9 |
| Resolution | 4000*3000 |
| HDMI Frame Rate | 4K@30fps |
| USB Frame Rate | 12M@20fps |
| LAN Frame Rate | 12M@20fps |
| Storage | USB disk/ PC/ RAM |
Features
- Sony Exmor/ Starvis back illuminated CMOS sensor.
- 4K/ 1080P HDMI 60fps output adaptive switching.
- Global invention patents and an automatic focusing system through a mobile image sensor.
- Support multiple control interfaces such as hard trigger, mouse, foot pedal, keypad, keyboard, etc.
- Embedded software is used to control the camera, with built-in functions such as measurement and image comparison.
- Images and videos are saved to USB flash drive, supporting local preview and playback.
- Powerful ISP functionality, excellent HDR, noise reduction and digital amplification capabilities.
- Support secondary development, custom logo, providingSLView professional intelligent analysis software.
Specification
Order Code | Focusing | Sensor Size | Pixel (μm) | Shutter | Resolution | Frame Rate |
BHC5C-AF500C | Auto | 1/1.8” | 2.9 | Rolling | 2592*1944 | HDMI: 5M@30fps/ 1080P@60fps USB: 5M@30fps/ 1080P@30fps LAN: 5M@30fps/ 1080P@30fps |
BHC5C-AF800C | Auto | 1/1.8” | 3.75 | Rolling | 3840*2160 | HDMI: 4K@60fps/ 1080P@60fps USB: 4K@30fps/ 1080P@60fps LAN: 4K@30fps/ 1080P@60fps |
BHC5C-AF1200C | Auto | 1/1.7” | 2.9 | Rolling | 4000*3000 | HDMI: 4K@30fps USB 3.0: 12M@20fps LAN: 12M@20fps |
Order Code | Sensor Type | Interface | Power Supply | Output Interface | Storage |
BHC5C-AF500C | CMOS | C-mount | DC 12V | HDMI/ LAN/ USB | USB disk/ PC/ RAM |
BHC5C-AF800C | CMOS | C-mount | DC 12V | HDMI/ LAN/ USB | USB disk/ PC/ RAM |
BHC5C-AF1200C | CMOS | C-mount | DC 12V | HDMI/ LAN/ USB | USB disk/ PC/ RAM |
Dimension
Unit: mm
Specifications for BestScope BHC5C-AF1200C Multi-Output Auto Focus Camera
| Manufacturer | BestScope |
