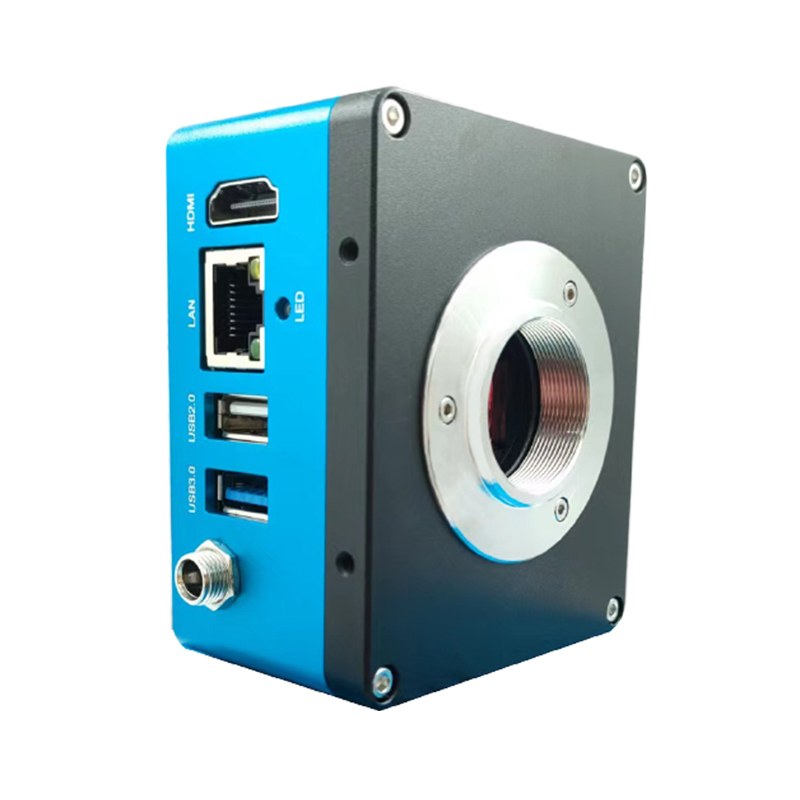

BestScope BHC5B-4K8MPA Measuring Camera
BHC5B-4K8MPA Measuring Camera provide high resolution and high-definition images, supporting high precision measurement.
Model: BHC5B-4K8MPA | Sensor Size(mm): 1/1.8” | Pixel(μm): 2.0x2.0 | Resolution: 3840*2160 | Shutter: Rolling | Frame Rate: HDMI: 4K@60fps LAN: 4K@30fps
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BHC5B-4K8MPA Measuring Camera
BHC5B-4K8MPA Measuring Camera provide high resolution and high-definition images, supporting high precision measurement.
Key Details
| Model | BHC5B-4K8MPA |
| Sensor Size(mm) | 1/1.8” |
| Pixel(μm) | 2.0x2.0 |
| Resolution | 3840*2160 |
| Shutter | Rolling |
| Frame Rate | HDMI: 4K@60fps LAN: 4K@30fps |
Features
1.Exmor/ Starvis back illuminated CMOS sensor.
2.4K/ 1080P HDMI 60fps output adaptive switching.
3.Support multiple control interfaces such as hard trigger, mouse, foot pedal, keypad, keyboard, etc.
4.Embedded software is used to control the camera, with built-in functions such as measurement and image comparison.
5.Images and videos are saved to USB flash drive, supporting local preview and playback.
6.Powerful ISP functionality, excellent HDR, noise reduction and digital amplification capabilities.
Specification
Order Code | Sensor Size | Pixel (μm) | Shutter | Resolution | Frame Rate |
BHC5B-1080A | 1/2.8” | 2.9 | Rolling | 1920*1080 | 60fps |
BHC5B-1080B | 1/2” | 3.75 | Rolling | 1920*1080 | 60fps |
BHC5B-4K8MPA | 1/1.8” | 2.0 | Rolling | 3840*2160 | HDMI: 4K@60fps LAN: 4K@30fps/ 1080P@60fps |
Order Code | Sensor Type | Interface | Power Supply | Output Interface | Storage |
BHC5B-1080A | CMOS | C-mount | DC 12V | HDMI | USB disk |
BHC5B-1080B | CMOS | C-mount | DC 12V | HDM | USB disk |
BHC5B-4K8MPA | CMOS | C-mount | DC 12V | HDMI/ LAN | USB disk/ PC/ RAM |
Dimension
Specifications for BestScope BHC5B-4K8MPA Measuring Camera
| Manufacturer | BestScope |
