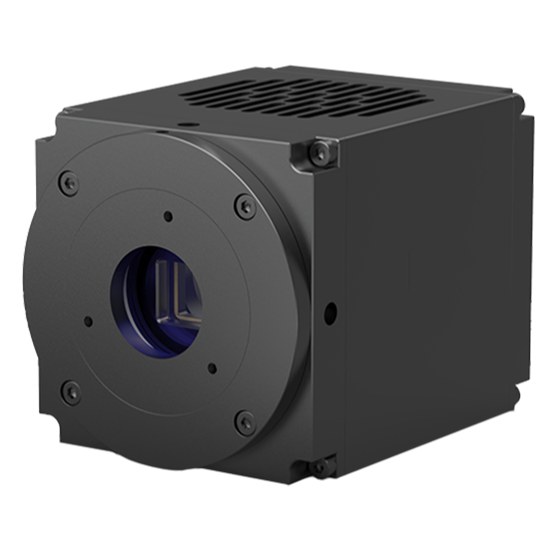

BestScope BUC5IA Series USB3.0 CMOS Microscope Cameras
BUC5IA-900M/2600M cooled CMOS camera designed for long exposure imaging. It not only incorporates high sensitivity and low noise advantages from latest sensor technologies, but also leverages many experiences on cooling chamber design and advanced image processing. BUC5IA-900M/2600M is able to capture clean and even images for up to 60 minutes exposure time.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
The BestScope BUC5IA series includes 4 models. Choose a model from the list above to see its catalogue code and photo; specifications for every model are compared in the table below.
Models in the BUC5IA series
| Model | Description | Color/Mono | Pixel Size | Array Diagonal | Binning | Exposure Time | Data Interface | Resolution | Sensor Size |
|---|---|---|---|---|---|---|---|---|---|
| BUC5IA-900M | Cooled C-mount USB3.0 CMOS Microscope Camera | Mono | 3.76μm*3.76μm | 15.96mm (1”) | 2*2, 3*3, 4*4, 6*6, 8*8 | 12.2μs-60min | USB3.0 | 3000*3000, 9MP | |
| BUC5IA-2000C | Cooled C-mount USB3.0 CMOS Microscope Camera (IMX183 Sensor, 20.0MP) | Color | 2.40μm x 2.40μm | 2x2, 4x4 | 0.244ms - 2mins | USB3.0 | 15.86mm; 1inch | ||
| BUC5IA-2000M | Cooled C-mount USB3.0 CMOS Microscope Camera (IMX183 Sensor, 20.0MP) | Mono | 2.40μm x 2.40μm | 2x2, 3x3, 4x4, 8x8 | 0.244ms - 60mins | USB3.0 | 15.86mm; 1inch | ||
| BUC5IA-2600M | Cooled C-mount USB3.0 CMOS Microscope Camera | Mono | 3.76μm*3.76μm | 28.3mm (1.8”) | 2*2, 3*3, 4*4, 5*5, 6*6, 8*8, 16*16 | 34.7μs-60min | USB3.0 | 6244*4168 |
BUC5IA-900M Cooled C-mount USB3.0 CMOS Microscope Camera
BUC5IA-900M/2600M cooled CMOS camera designed for long exposure imaging. It not only incorporates high sensitivity and low noise advantages from latest sensor technologies, but also leverages many experiences on cooling chamber design and advanced image processing. BUC5IA-900M/2600M is able to capture clean and even images for up to 60 minutes exposure time.
Key Details
| Model | BUC5IA-900M |
| Color/Mono | Mono |
| Pixel Size | 3.76μm*3.76μm |
| Array Diagonal | 15.96mm (1”) |
| Binning | 2*2, 3*3, 4*4, 6*6, 8*8 |
| Exposure Time | 12.2μs-60min |
| Data Interface | USB3.0 |
| Resolution | 3000*3000, 9MP |
Features
Feature
- 1.SONY BSI CMOS
SONY BSI CMOS, 92 % peak QE, 0.9 e- readout noise and no glow.
- 2.Dark current
Dark current < 0.0005 e-/p/s, equivalent to the cooled CCD for long exposure imaging.
- 3.Pixel correction technology
High background quality ensures more accurate quantitative analysis. BUC5IA-900M and BUC5IA-2600M have excellent background uniformity, as it has basically eliminated the bad factors such as amplifier grow and bad pixels. Figure (a) is the background image taken by BUC5IA-900M/2600M with 600s exposure. Figure (b) is the grayscale intensity curve corresponding to the yellow region, showing excellent background uniformity.
4.Dynamic range
Dynamic range 16000:1, more than 4 times that of the CCD, greatly expanding the signal detection range.
5.Flexible binning mode
Improving the sensitivity and dynamic range capability.
6.High reliability cooling chamber
Cooled to -25 °C @ 22 °C, no condensation or other problems.
7.Compact design
Conducive to instrument system integration.
Application
BUC5IA-900M/2600M cooled CMOS camera are typically used in chemiluminescence, bioluminescence, PCR, fluorescence imaging.
Quantum Efficiency
BUC5IA-900M
BUC5IA-2600M
Specification
Product Model | BUC5IA-900M | BUC5IA-2600M | ||||
Color/Mono | Mono | Mono | ||||
Sensor Type | BSI CMOS | BSI CMOS | ||||
Sensor Model | Sony IMX533CLK-D | Sony IMX571BLR-J | ||||
Array Diagonal | 15.96mm (1”) | 28.3mm (1.8”) | ||||
Effective Area | 11.28mm*11.28mm | 23.4mm*15.6mm | ||||
Pixel Size | 3.76μm*3.76μm | 3.76μm*3.76μm | ||||
Resolution | 3000*3000, 9MP | 6244*4168 | ||||
Quantum Efficiency | 92%@530nm | 92%@460nm | ||||
Dark Current | <0.0005e-/p/s | <0.0005e-/p/s | ||||
Gain Mode | Gain 0 -High-Capacity | Gain 1 -Balanced | Gain 2 -Sensitive | Gain 0 -High-Capacity | Gain 1 -Balanced | Gain 2 -Sensitive |
Full well capacity | Gain 0: 47ke- @bin1; >180ke- with binning | Gain 1: 16ke- @bin1; >64ke- with binning | Gain2: 3ke- @bin1; >12ke- with binning | 50ke-@Gain 0 | 15ke-@Gain 1 | 3ke-@Gain 2 |
Readout Modes | Standard, low-noise | Standard, low-noise | ||||
Readout Noise (Standard) | 3.2e-@Gain0 | 1.2e-@Gain1 | 1.0e-@Gain2 | 3.2e-@Gain0 | 1.2e-@Gain1 | 1.0e-@Gain2 |
Readout Noise (Low-noise) | 2.5e-@Gain0 | 1.0e-@Gain1 | 0.9e-@Gain2 | 2.5e-@Gain0 | 1.0e-@Gain1 | 0.9e-@Gain2 |
Frame Rate | 18fps@Standard Mode, 12fps@Low Noise Mode | 6.5fps | ||||
Shutter Mode | Rolling | Rolling | ||||
Exposure Time | 12.2μs-60min | 34.7μs-60min | ||||
Image Processing | DPC | DPC | ||||
ROI | Supported | Supported | ||||
Binning | 2*2, 3*3, 4*4, 6*6, 8*8 | 2*2, 3*3, 4*4, 5*5, 6*6, 8*8, 16*16 | ||||
Cooling Method | Air | Air | ||||
Cooling Temperature | Cooled to -25℃@Ambient temperature (22℃) | Cooled to -25℃@Ambient temperature (22℃) | ||||
Trigger Mode | Hardware, software | Hardware, software | ||||
Output Trigger Signals | Exposure start, Global, Readout end, High level, Low level | Exposure start, Global, Readout end, High level, Low level | ||||
Trigger Connector | Horise | Horise | ||||
SDK | C, C++, C# | C, C++, C# | ||||
Data Interface | USB 3.0 | USB 3.0 | ||||
Optical Interface | C-Mount, Customizable | M42, Customizable | ||||
Bit Depth | 14 bit@bin1, extended to 16 bit with FPGA binning | 16 bit | ||||
Power | 12V/ 6A | 12V/ 6A | ||||
Power Consumption | ≤40W | ≤55W | ||||
Dimensions | 76mm*76mm*98.5mm | 85mm*85mm*95mm | ||||
Camera Weight | 835g | 945g | ||||
Operating System | Windows/ Linux | Windows/ Linux | ||||
Operating Environment | Working: Temperature 0-40℃, Humidity 10-85% Storage: Temperature -10-60℃, Humidity 0-85% | Working: Temperature 0-40℃, Humidity 10-85% Storage: Temperature -10-60℃, Humidity 0-85% | ||||
Dimension
BUC5IA-900M
BUC5IA-2600M
Specifications for BestScope BUC5IA Series USB3.0 CMOS Microscope Cameras
| BestScope Model | BUC5IA-900M – Cooled C-mount USB3.0 CMOS Microscope Camera or BUC5IA-2000C – Cooled C-mount USB3.0 CMOS Microscope Camera (IMX183 Sensor, 20.0MP) or BUC5IA-2000M – Cooled C-mount USB3.0 CMOS Microscope Camera (IMX183 Sensor, 20.0MP) or BUC5IA-2600M – Cooled C-mount USB3.0 CMOS Microscope Camera |
| Manufacturer | BestScope |
