BestScope BUC2D Series USB2.0 CMOS Microscope Cameras
With Innovative customized ISP technology, the BUC2D-200C(With IMX323LQN-C Sensor) cameras’ frame rate has been greatly improved. The frame rate of uncompressed original imaging is 2MP@30fps, 5MP@22fps, 12MP@15fps. This series digital cameras provide simple and economical microscopy imaging. They are widely used in academic and medical fields for precision and high resolution microscope image capturing and processing.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
The BestScope BUC2D series includes 3 models. Choose a model from the list above to see its catalogue code and photo; specifications for every model are compared in the table below.
Models in the BUC2D series
| Model | Description | Sensor Size | Resolution | Pixel Size | Frame Rate | Data Interface | Color/Mono | Exposure Mode |
|---|---|---|---|---|---|---|---|---|
| BUC2D-200C | USB2.0 Graphics Accelerated Microscope Camera (IMX323LQN-C Sensor, … | 1/2.9" | 2MP | 2.8μmx2.8μm | 30fps | USB2.0 | Color | Auto/Manual |
| BUC2D-500C | USB2.0 Graphics Accelerated Microscope Camera (IMX335LQN-C Sensor, … | 1/2.8" | 5MP | 2.0 μmx2.0μm | 22fps | USB2.0 | Color | Auto/Manual |
| BUC2D-1200C | USB2.0 Graphics Accelerated Microscope Camera (MN34120 Sensor, 12.0MP) | 1/2.33" | 12MP | 1.335μmx1.335μm | 15fps | USB2.0 | Color | Auto/Manual |

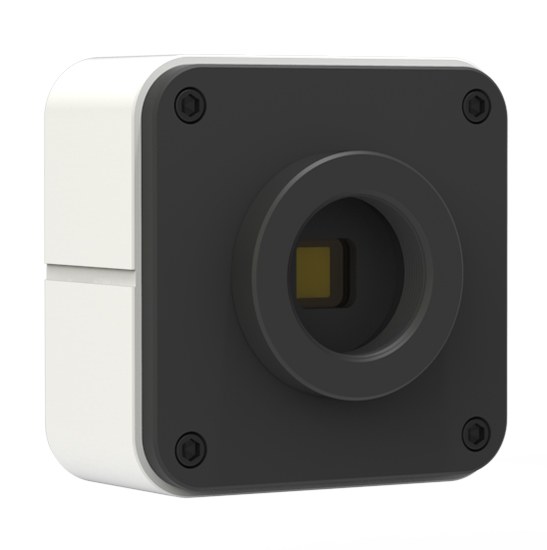

BUC2D-200C USB2.0 Graphics Accelerated Microscope Camera (IMX323LQN-C Sensor, 2.0MP)
With Innovative customized ISP technology, the BUC2D-200C(With IMX323LQN-C Sensor) cameras’ frame rate has been greatly improved. The frame rate of uncompressed original imaging is 2MP@30fps, 5MP@22fps, 12MP@15fps. This series digital cameras provide simple and economical microscopy imaging. They are widely used in academic and medical fields for precision and high resolution microscope image capturing and processing.
Key Details
| Model | BUC2D-200C |
| Sensor Size | 1/2.9" |
| Resolution | 2MP |
| Pixel Size | 2.8μmx2.8μm |
| Frame Rate | 30fps |
| Data Interface | USB2.0 |
| Color/Mono | Color |
| Exposure Mode | Auto/Manual |
Specification
Model | BUC2D-200C | BUC2D-500C | BUC2D-1200C |
Sensor Model | IMX323LQN-C | IMX335LQN-C | Panasonic, MN34120 |
Sensor Size | 1/2.9″ | 1/2.8″ | 1/2.33″ |
Resolution | 2MP, 1920×1080 | 5MP, 2560×1920 | 12MP, 4000×3000 |
Pixel Size | 2.8μmx2.8μm | 2.0 μmx2.0μm | 1.335μmx1.335μm |
Frame Rate | 30fps | 22fps | 15fps |
Color/Mono | Color | ||
Shutter Type | Rolling Shutter | ||
Exposure Mode | Auto/Manual | ||
Picture Format | TIFF/JPG/PNG/DICOM | ||
Operating System | Windows 7/8/10 (32 Bit/64 Bit) | ||
PC Software | Capture 2.0 | ||
SDK | C/C++, C#, Directshow | ||
Optical Interface | C-Mount | ||
Data Interface | USB2.0 | ||
Operating Temperature | 0-60℃ | ||
Operating Humidity | 10%-85% | ||
Camera Size | 68X68X42.5(mm) | ||
Camera Weight | 253g | ||
Note: | Capture 2.0 software does not support the dark field image processing module, real-time image stitching and real-time depth of field fusion function module when it is used with BUC2D cameras. | ||
Specifications for BestScope BUC2D Series USB2.0 CMOS Microscope Cameras
| BestScope Model | BUC2D-200C – USB2.0 Graphics Accelerated Microscope Camera (IMX323LQN-C Sensor, … or BUC2D-500C – USB2.0 Graphics Accelerated Microscope Camera (IMX335LQN-C Sensor, … or BUC2D-1200C – USB2.0 Graphics Accelerated Microscope Camera (MN34120 Sensor, 12.0MP) |
| Manufacturer | BestScope |
