BestScope BS-3060 Series Stereo Microscopes

BestScope Model
Manufacturer

1.00 E£ 1.00 E£ 1.0 EGP

1.00 E£

This combination does not exist.

Add to Cart Request a quote Download Datasheet (PDF)

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

The BestScope BS-3060 series includes 12 models. Choose a model from the list above to see its catalogue code and photo; specifications for every model are compared in the table below.

Models in the BS-3060 series

Model	Description	Magnification	Eyepiece	Objective	Working Distance	Illumination	Viewing Head	Zoom Ratio	Fluorescent Attachment	Zoom Objective	Base Size
BS-3060A	Binocular Zoom Stereo Microscope	8x-50x	EW10×	0.8×-5×	78mm	LED	Binocular	1: 6
BS-3060AT	Trinocular Zoom Stereo Microscope	8x-50x	EW10×	0.8×-5×	78mm	LED	Trinocular	1: 6
BS-3060B	Binocular Zoom Stereo Microscope	8x-64x	EW10×	0.8×-6.4×	78mm	LED	Binocular	1: 8
BS-3060BT	Trinocular Zoom Stereo Microscope	8×-64×	EW10×	0.8×-6.4×	78mm	LED	Trinocular	1: 8
BS-3060C	Binocular Zoom Stereo Microscope	8x-80x	EW10×	0.8×-8×	78mm	LED	Binocular	1: 10
BS-3060CT	Trinocular Zoom Stereo Microscope	8×-80×	EW10×	0.8×-8×	78mm	LED	Trinocular	1: 10
BS-3060FA	Fluorescent Binocular Stereo Microscope	8×-50×	EW10×	0.8×-5×	78mm	LED	Binocular	1: 6	GFP-B, GFP-L
BS-3060FB	Fluorescent Binocular Stereo Microscope	8×-64×	EW10×	0.8×-6.4×	78mm	LED	Binocular	1: 8	GFP-B, GFP-L
BS-3060FC	Fluorescent Binocular Stereo Microscope	8×-80×	EW10×	0.8×-8×	78mm	LED	Binocular	1: 8	GFP-B, GFP-L
BS-3060MH4A	Dual Head Zoom Stereo Teaching Microscope		EW10×/Φ22mm	Plan Achromatic Objective 1×		Right light(LED/Fluorescent)	Binocular Head	1: 6		0.8×-5×	420x350mm
BS-3060MH4B	Dual Head Zoom Stereo Teaching Microscope		EW10×/Φ22mm	Plan Achromatic Objective 1×		Right light(LED/Fluorescent)	Binocular Head	1: 8		0.8×-6.4×	420x350mm
BS-3060MH4C	Dual Head Zoom Stereo Teaching Microscope		EW10×/Φ22mm	Plan Achromatic Objective 1×		Right light(LED/Fluorescent)	Binocular Head	1: 10		0.8×-8×	420x350mm

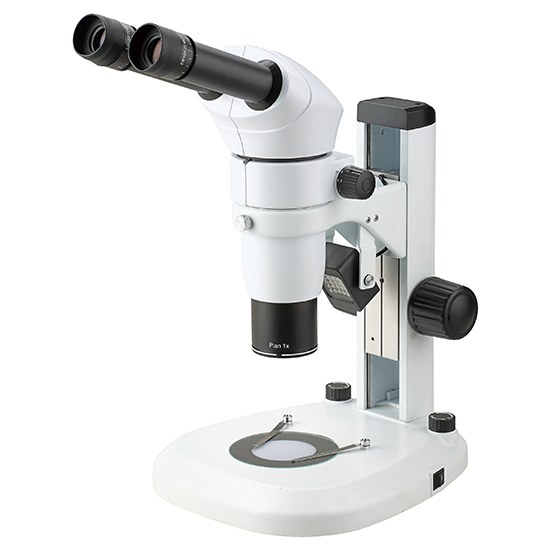

BS-3060A Binocular Zoom Stereo Microscope

Stereo microscopes are also known as low magnification and dissecting microscopes. BS-3060 Series Zoom Stereo Microscope with Infinity Parallel Optical System on a post stand offers upright, un-reversed 3-D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.This is a high level stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary BS-3060 series Parallel Stereo Microscopes give the greatest range of magnifications, working distances, photo options, accessories and are the most convenient to use – no wonder they are popular!

Key Details

Model	BS-3060A
Magnification	8x-50x
Eyepiece	EW10×
Objective	0.8×-5×
Working Distance	78mm
Illumination	LED
Viewing Head	Binocular
Zoom Ratio	1: 6

Features

Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
Comfortable Operation with Ergonomic Design Principle.
With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.
A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose. It is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

Application

BS-3060 series stereo zoom microscopes with Infinity Parallel Optical System is of great value in a variety of applications such as Industrial, Medical and Scientific Research Areas, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.

Specification

Item	Specification	BS-3060A	BS-3060B	BS-3060C
Optical System	Infinite Parallel Zoom Optical System	●	●	●
Viewing Head	Binocular Head, 20°Inclination, Interpupilary Distance 55-75mm	●	●	●
Viewing Head	Tilting Binocular Eyepiece Tube, 5°-35° Inclined, Interpupilary Distance 55-75mm	○	○	○
Eyepiece	EW10×/Φ22mm	●	●	●
	EW10×/Φ24mm	○	○	○
	WF15×/Φ16mm	○	○	○
	WF20×/Φ12mm	○	○	○
	WF30×/Φ8mm	○	○	○
Zoom Objective	0.8×-5×	●
	0.8×-6.4×	●
	0.8×-8×	●
Objective	Plan Achromatic Objective 1×, W.D.: 78mm	●	●	●
	Achromatic Objective 0.3×, W.D.: 276mm	○	○	○
	Achromatic Objective 0.5×, W.D.: 195mm	○	○	○
	Plan Apochromatic Objective 0.5×, W.D.: 126mm	○	○	○
	Plan Achromatic Objective 2×, W.D.: 32.5mm	○	○	○
Zoom Ratio	1: 6	●
	1: 8	●
	1: 10	●
Focusing Unit	Coarse Focus Knob with tension adjustable, Moving range 105mm	●	●	○
Focusing Unit	Coaxial Coarse & Fine Focus Knob with tension adjustable, Moving range 105mm	○	○	●
Illumination	Transmission & Reflection LED Illumination, Brightness Adjustable	●	●	●
Optional Accessories	Coaxial Illumination	○	○	○
	Epi-Fluorescent Attachment	○	○	○
	Dark Field Attachment	○	○	○
	Simple Polarization Set	○	○	○
	Iris Diaphragm	○	○	○
	Beam splitter (one port)	○	○	○
	Beam splitter (two ports)	○	○	○
	Photography & video attachment	○	○	○
	Moveable Stage	○	○	○
	Temperature controlled Stage	○	○	○
	Universal Table Stand/Table Clamp Stand	○	○	○
	Cold light illumination with dual light guide	○	○	○
	LCD Attachment	○	○	○
Package	1pc/carton, 49cm40cm56cm, 9.5kg	●	●	●

Note: ● Standard Outfit, ○ Optional

Specifications for BestScope BS-3060 Series Stereo Microscopes

BestScope Model	BS-3060A – Binocular Zoom Stereo Microscope or BS-3060AT – Trinocular Zoom Stereo Microscope or BS-3060B – Binocular Zoom Stereo Microscope or BS-3060BT – Trinocular Zoom Stereo Microscope or BS-3060C – Binocular Zoom Stereo Microscope or BS-3060CT – Trinocular Zoom Stereo Microscope or BS-3060FA – Fluorescent Binocular Stereo Microscope or BS-3060FB – Fluorescent Binocular Stereo Microscope or BS-3060FC – Fluorescent Binocular Stereo Microscope or BS-3060MH4A – Dual Head Zoom Stereo Teaching Microscope or BS-3060MH4B – Dual Head Zoom Stereo Teaching Microscope or BS-3060MH4C – Dual Head Zoom Stereo Teaching Microscope
Manufacturer	BestScope
