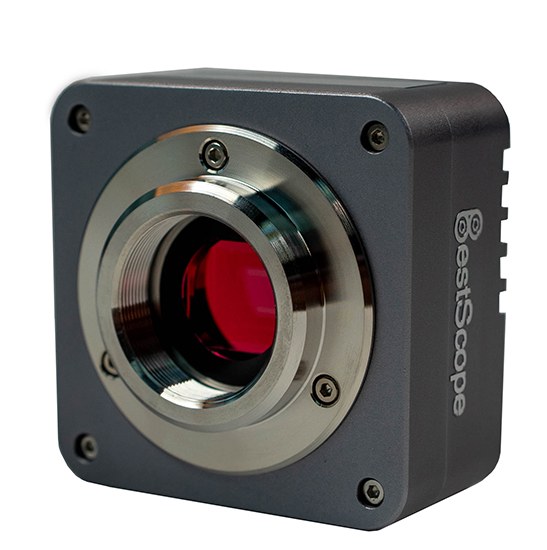

BestScope BUC4C-500C C-mount USB2.0 CCD Microscope Camera (ICX282AQ Sensor, 5.0MP)
BUC4C-500C(With ICX282AQ(C) Sensor) CCD cameras are ultra-high performance Super HAD CCD camera. The cameras adopt CCD sensor as the image capture device; The Super HAD CCD is a version of high performance CCD HAD (Hole-Accumulation Diode) sensor with sharply improved sensitivity by the incorporation of a new semiconductor technology developed. USB2.0 is used as the data transfer interface.BUC4C series CCD cameras come with advanced video &…
Model: BUC4C-500C | Sensor: 5.0M/ICX282AQ(C) | Sensor Size(mm): 2/3“ (8.70x6.53) | Pixel Size(μm): 3.40x3.40 | FPS: 4.5@2560x1920 | Binning: 1x1, 2x2 | Exposure: 0.203ms~60s | USB Port: USB2.0 High-speed Port
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
BUC4C-500C C-mount USB2.0 CCD Microscope Camera (ICX282AQ Sensor, 5.0MP)
BUC4C-500C(With ICX282AQ(C) Sensor) CCD cameras are ultra-high performance Super HAD CCD camera. The cameras adopt CCD sensor as the image capture device; The Super HAD CCD is a version of high performance CCD HAD (Hole-Accumulation Diode) sensor with sharply improved sensitivity by the incorporation of a new semiconductor technology developed. USB2.0 is used as the data transfer interface.BUC4C series CCD cameras come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;The BUC4C series CCD cameras can be widely used in bright field, dark field, fluorescent light environment for microscope image capture and analysis.
Key Details
| Model | BUC4C-500C |
| Sensor | 5.0M/ICX282AQ(C) |
| Sensor Size(mm) | 2/3“ (8.70x6.53) |
| Pixel Size(μm) | 3.40x3.40 |
| FPS | 4.5@2560x1920 |
| Binning | 1x1, 2x2 |
| Exposure | 0.203ms~60s |
| USB Port | USB2.0 High-speed Port |
Features
- Standard C-Mount camera with CCD 0.8~5.2M sensor;
- USB2.0 interface ensuring high speed data transmission;
- Ultra-Fine color engine with perfect color reproduction capability;
- With advanced video & image processing application ImageView;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
BUC4C Datasheet
Order Code | Sensor & Size(mm) | Pixel Size(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
BUC4C-520C | 5.2M/ICX655AQ(C) | 3.45×3.45 | 420mv with 1/30s 4mv with 1/30s | 4.3@2448×2050 | 1×1 | 0.22ms~60s |
BUC4C-510C | 5.1M/ICX452AQ(C) | 2.775×2.775 | 260mv with 1/30s 16mv with 1/30s | 4@2592×1944 | 1×1, 2×2 | 0.212ms~77ms |
BUC4C-500C | 5.0M/ICX282AQ(C) | 3.40×3.40 | 280mv with 1/30s 16mv with 1/30s | 4.5@2560×1920 | 1×1, 2×2 | 0.203ms~60s |
BUC4C-200C | 2.0M/ICX274AQ(C) | 4.40×4.40 | 420mv with 1/30s 8mv with 1/30s | 10@1600×1200 | 1×1 | 0.135ms~60s |
BUC4C-140BC | 1.4M/ICX205AK(C) | 4.65×4.65 | 400mv with 1/30s 16mv with 1/30s | 15@1360×1024 | 1×1 | 0.127ms~60s |
BUC4C-140M | 1.4M/ICX205AL(M) | 4.65×4.65 | 450mv with 1/30s 16mv with 1/30s | 15@1360×1024 | 1×1 | 0.127ms~60s |
C:Color; M:Monochrome;
Other Specification for BUC4C | |
Spectral Range | 380-650nm (with IR-cut Filter) |
White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
Color Technique | Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
Capture/Control API | Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
Recording System | Still Picture and Movie |
Cooling System* | Natural |
Operating Environment | |
Operating Temperature(in Centigrade) | -10~ 50 |
Storage Temperature(in Centigrade) | -20~ 60 |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
Software Environment | |
Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory:2GB or More | |
USB Port:USB2.0 High-speed Port | |
Display:17” or Larger | |
CD-ROM | |
Dimension of BUC4C
The BUC4C body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Packing Information of BUC4C
Standard Camera Packing List | |||
A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | ||
B | Gift box L:15cm W:15cm H:10cm (0.67~0.8Kg/ box) | ||
C | BUC4C series camera | ||
D | High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m | ||
E | CD (Driver & utilities software, Ø12cm) | ||
Optional Accessory | |||
F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube | |
C-mount to Dia.31.75mm eyepiece tube | |||
G | Fixed lens adapter | C-mount to Dia.23.2mm eyepiece tube | |
C-mount to Dia.31.75mm eyepiece tube | |||
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||
J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | ||
K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); | |
