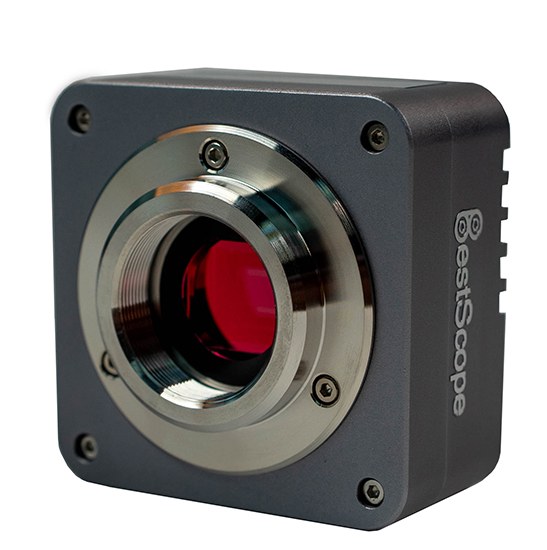

BestScope BUC4D-140C C-mount USB2.0 CCD Microscope Camera (ICX285AQ Sensor, 1.4MP)
BUC4D-140C(With ICX285AQ(C) Sensor) CCD digital cameras adopt CCD sensor as the image-capture device. CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD sensor. USB2.0 port is used as the data transfer interface.BUC4D series cameras come with advanced video & image processing software ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET,…
Model: BUC4D-140C | Sensor: 1.4M/ICX285AQ(C) | Sensor Size(mm): 2/3“ (10.2x8.3) | Pixel(μm): 6.45x6.45 | FPS: 15@1360x1024 | Binning: 1x1 | Exposure: 0.12ms~240s | USB Port: USB2.0 High-speed Port
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
BUC4D-140C C-mount USB2.0 CCD Microscope Camera (ICX285AQ Sensor, 1.4MP)
BUC4D-140C(With ICX285AQ(C) Sensor) CCD digital cameras adopt CCD sensor as the image-capture device. CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD sensor. USB2.0 port is used as the data transfer interface.BUC4D series cameras come with advanced video & image processing software ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;BUC4D series cameras can be widely used in low light environment and microscope fluorescence image capture and analysis.
Key Details
| Model | BUC4D-140C |
| Sensor | 1.4M/ICX285AQ(C) |
| Sensor Size(mm) | 2/3“ (10.2x8.3) |
| Pixel(μm) | 6.45x6.45 |
| FPS | 15@1360x1024 |
| Binning | 1x1 |
| Exposure | 0.12ms~240s |
| USB Port | USB2.0 High-speed Port |
Features
- Standard C-Mount camera with 0.3M~1.4M sensors;
- USB2.0 interface ensuring high speed data transmission;
- Ultra-Fine color engine with perfect color reproduction capability;
- With advanced video & image processing application ImageView;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
BUC4D Datasheet
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
BUC4D-140C | 1.4M/ICX285AQ(C) | 6.45×6.45 | 1240mv with 1/30s | 15@1360×1024 | 1×1 | 0.12ms~240s |
BUC4D-140M | 1.4M/ICX285AL(M) | 6.45×6.45 | 1300mv with 1/30s 11mv with 1/30s | 15@1360×1024 | 1×1 | 0.12ms~240s |
BUC4D-44M | 0.44M/ICX829AL(M) | 8.6X8.3 | 2800mv with 1/30s 2mv with 1/30s | 46@748X578 | 1X1 | 0.20ms~3600s |
BUC4D-30M | 0.3M ICX618AL(M) | 5.6×5.6 | 1200mv with 1/30s 4mv with 1/30s | 72@640×480 | 1×1 | 0.06ms~40s |
C: Color; M: Monochrome;
Other Specification for BUC4D Cameras | |
Spectral Range | 380-650nm (with IR-cut Filter) |
White Balance | ROI White Balance/ Manual Temp Tint Adjustment /NA for Monochromatic Sensor |
Color Technique | Ultra-FineTM Color Engine /NA for Monochromatic Sensor |
Capture/Control API | Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
Recording System | Still Picture and Movie |
Cooling System | Natural |
Operating Environment | |
Operating Temperature(in Centigrade) | -10~ 50 |
Storage Temperature(in Centigrade) | -20~ 60 |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
Software Environment | |
Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory:2GB or More | |
USB Port:USB2.0 High-speed Port | |
Display:17” or Larger | |
CD-ROM | |
Dimension of BUC4D
The BUC4D body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Packing Information of BUC4D
Standard Camera Packing List | ||
A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | |
B | Gift box L:15cm W:15cm H:10cm (0.67~0.80Kg/ box) | |
C | BUC4D series USB2.0 C-Mount camera | |
D | High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m | |
E | CD (Driver & utilities software, Ø12cm) | |
Optional Accessory | ||
F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube |
C-Mount to Dia.31.75mm eyepiece tube | ||
G | Fixed lens adapter | C-mount to Dia.23.2mm eyepiece tube |
C-mount to Dia.31.75mm eyepiece tube | ||
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | |
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | |
J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | |
K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); |
المواصفات BestScope BUC4D-140C C-mount USB2.0 CCD Microscope Camera (ICX285AQ Sensor, 1.4MP)
| Manufacturer | BestScope |
