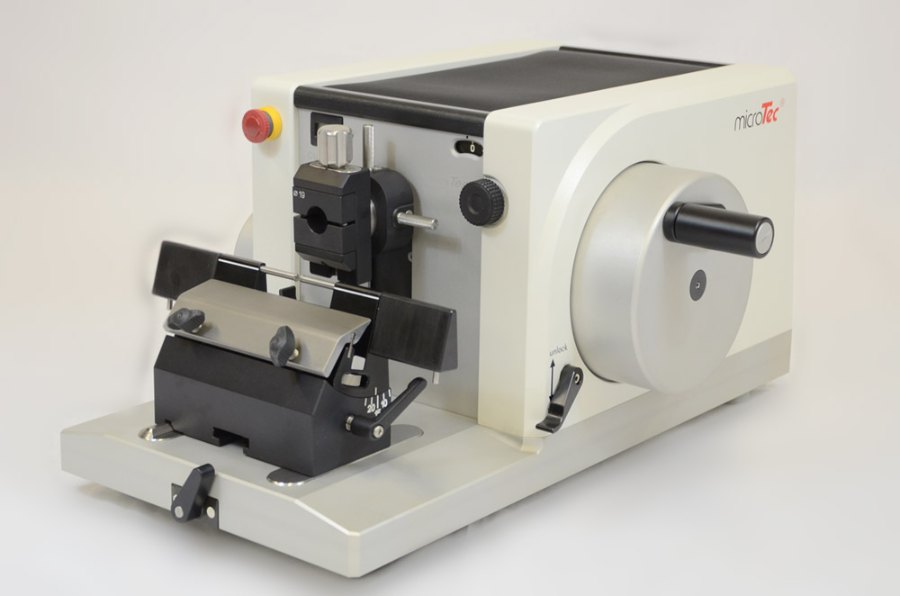

microTec Rotary Microtome CUT 4060 E (Electrical)
Semi-motorised rotary microtome CUT4060 E with electronic servo drive (power steering), 3 cutting modes and 1–150 strokes/min — Made in Germany.
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
Semi-motorised rotary microtome CUT4060 E with electronic servo drive (power steering), 3 cutting modes and 1–150 strokes/min — Made in Germany.
The microTec rotary microtome is a manually operated cutting device for all types of work with paraffin and hard cutting technology in biology, medicine and industry — used to prepare microscopic sections (e.g. human tissue) in histology and pathology, as well as for analysis of synthetic materials. Cutting is done with a resharpenable knife or a disposable blade fixed in interchangeable knife holders.
Features
- The microtome (semi-motorised) is fitted with an electronic servo drive (power steering) that considerably eases long cutting sequences
- Coarse mode on the left, next to the safety clutch
- Fine setting with collision guard
- Precise clamping for knife carrier with optimal shifting options
- Cutting started from the operator terminal or an optional foot switch
- 3 cutting modes from the manual panel: Contact (tip), Single-stroke (alternative to foot switch), Continuous
- Additional high-speed push-button for fast cutting; stop push-button holds the object in its current position
- Adjustable cutting speed 1 – 150 strokes per minute
- Optimal object guiding by backlash-free, maintenance-free cross-roller guides with restraint-guided roller cage
- Automatic object retraction
- Automatic object advance
Specifications
| Parameter | Value |
|---|---|
| Section thickness | 0.5 – 60 µm |
| Shifting range / resolution | 0.5 µm steps (0.5–2 µm); 1 µm (2–10 µm); 2 µm (10–20 µm); 5 µm (20–60 µm) |
| Vertical stroke | 70 mm |
| Horizontal stroke | 40 mm |
| Cutting speed | 1 – 150 strokes/min |
| Object size | max. 55 x 50 mm |
| Object orientation | X- and Y-axis 8°, Z-axis 360° |
| Manual stopping | User-friendly positioned |
| Coarse mode | Manual, hand dial on left side |
| Object retraction | 80 µm at upward motion |
| Section counter | LCD display, 6-digit |
| Trim setting | 1: 10 µm, 2: 20 µm, 3: 30 µm |
| Storage temperature | +5 °C to +55 °C |
| Dimensions | 550 x 460 x 280 mm |
| Weight | 45 kg |
Ordering Codes
| Art. No. | Model | Description |
|---|---|---|
| B150072 | CUT4060 E | Semi-motorised (electronic servo drive) |
Suggested Equipment
Configuration No. 1
| Qty | Item | Art. No. |
|---|---|---|
| 1 | Rotary Microtome CUT 4060 E | B150072 |
| 1 | Knife holder basic unit | B150043 |
| 1 | Disposable blade holder 2511A | B150046 |
| 1 | Clamping plate 2511A low profile I | F150079 |
| 1 | Adapter rigid | F150086 |
| 1 | Standard object clamp | B150053 |
| 1 | Universal cassette clamp (optional) | B150063 |
Configuration No. 2
| Qty | Item | Art. No. |
|---|---|---|
| 1 | Rotary Microtome CUT 4060 E | B150072 |
| 1 | Knife holder basic unit | B150043 |
| 1 | Standard knife holder "R" | B150044 |
| 1 | Knife holder "RS" (optional) | B150047 |
| 1 | Adapter rigid | F150086 |
| 1 | Tungsten Carbide knife "D" | H150051 |
| 1 | Adapter orientable (optional) | B150065 |
Configuration No. 3
| Qty | Item | Art. No. |
|---|---|---|
| 1 | Rotary Microtome CUT 4060 E | B150072 |
| 1 | Knife holder basic unit | B150043 |
| 1 | Disposable blade holder 2511A | B150046 |
| 1 | Clamping plate 2511A low profile I | F150079 |
| 1 | Adapter orientable | B150065 |
| 1 | Object orientation, hand wheel left | B150051 |
| 1 | Universal cassette clamp | B150063 |
| 1 | Disposable blade MS200 standard | H180272 |
Manufacturer: microTec Laborgeräte GmbH, Walldorf, Germany — Made in Germany. Source: micro-tec.de
المواصفات microTec Rotary Microtome CUT 4060 E (Electrical)
| Manufacturer | microTec |
